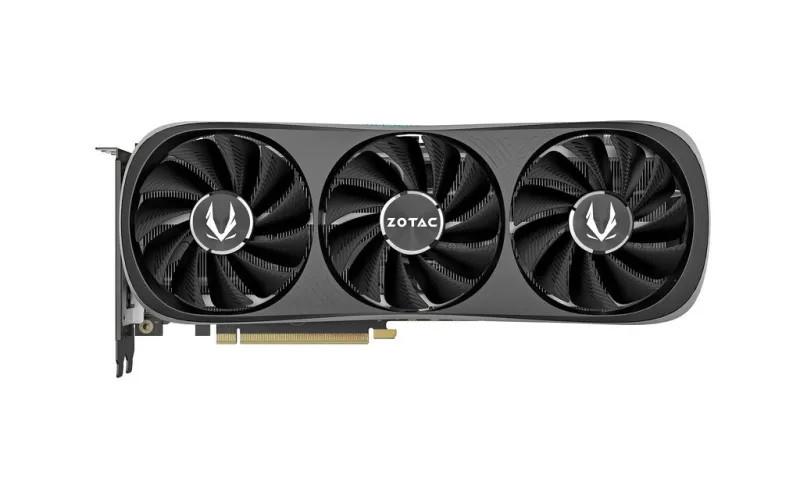

Zotac GeForce RTX 4070 Trinity NVIDIA 12 GB GDDR6X
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- IceStorm 2.0 Advanced Cooling
- FREEZE Fan Stop, Active Fan Control
- SPECTRA 2.0 RGB Lighting
- Metal Backplate
- Bundled with GPU Support Bracket
A balanced take on the signature aerodynamic-inspired design, the ZOTAC GAMING GeForce RTX 4070 Trinity utilizes the state-of-the-art NVIDIA Ada Lovelace architecture to give gamers cutting-edge features such as DLSS 3 and real time raytracing. Complete with the advanced cooling design derived from flagship models, the Trinity packs the punch to deliver blistering FPS in the latest titles.
THE ULTIMATE PLATFORM FOR GAMERS AND CREATORS
Powered by GeForce RTX 40 Series and DLSS 3
RAY TRACING
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
ADVANCED COOLING
Refined in every aspect, IceStorm 2.0 is our advanced cooling system that pushes the limit of GPU performance in the most graphically demanding PC games.
Up to 6 precision-machined copper heatpipes are shifted into a vertical layout for increased surface contact with the GPU, extracting more heat to disperse along the full length of the heatsink.
Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heatpipe is more efficient at transferring heat.
With ample designed ventilation paths, airflow can maneuver and exhaust from every side to reduce trapped heat.
NOISE REFINED
ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.
DESIGNED FOR DURABILITY
Built to last and perform, the ZOTAC GAMING GeForce RTX 4070 has a strong foundation for peak performance.

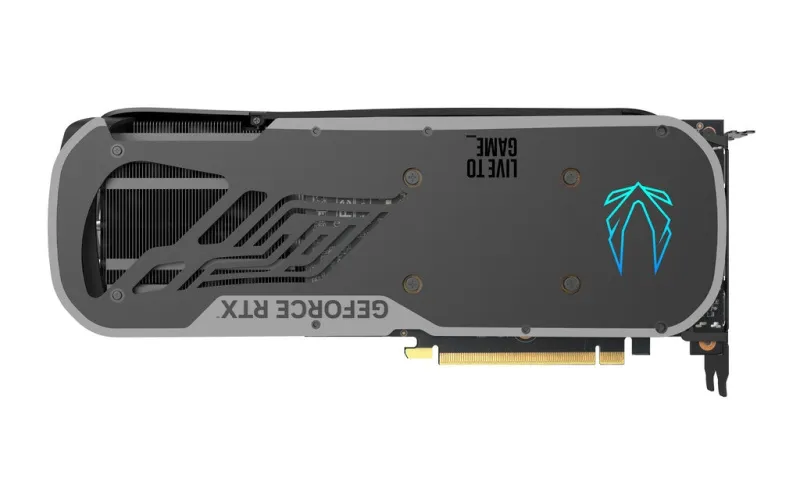

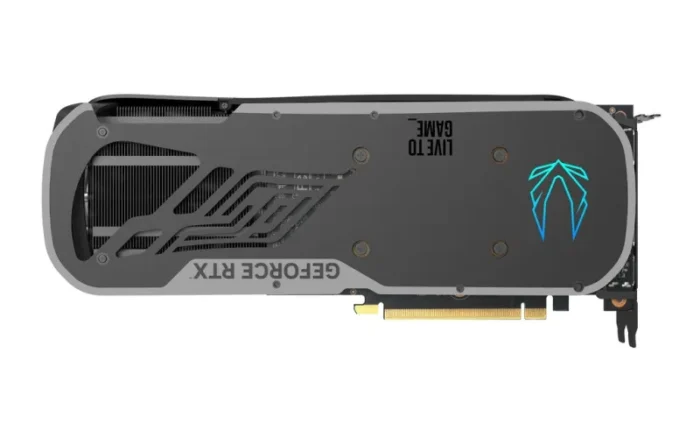

STRONG BACKSIDE
Overall rigidity is achieved with a metal backplate.
EXTRA SUPPORT
Take advantage of the bundled metal support stand for additional GPU reinforcement.
SPECTRA RGB LIGHTING
ZOTAC GAMING’s dedicated lighting system, SPECTRA 2.0, enables vibrant LED light colors and unique animated options powered by Addressable RGB LEDs.
DUAL- ZONE RGB LIGHTING
Customize separate lighting modes and colors for up to 2 lighting zones on the graphics card, or synchronize them both.
*Available on select models
HOLOGRAPHIC FRAME
The surreal beauty of the large RGB presence on top is enhanced by an iridescent and translucent finish that allows lighting paths underneath to shine through.
*Available on select models
**White color lighting may not be accurately displayed
NEW. SIMPLE. INTUITIVE.
The all-new ZOTAC GAMING FireStorm Utility for 40 Series features an entirely re-designed interface that makes complex fine-tuning tasks easier to do. The new software comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings and SPECTRA RGB lighting effects.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2475 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |

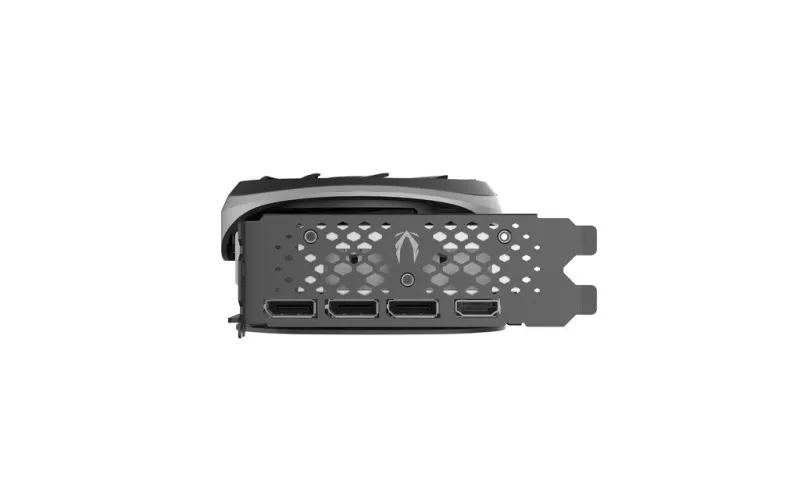

| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Number of slots | 2.5 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | Zotac IceStorm 2.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 12-pin |
| Power consumption (typical) | 200 W |
| Minimum system power supply | 600 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Height | 119.4 mm |
| Depth | 58.5 mm |
| Length | 306.8 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
