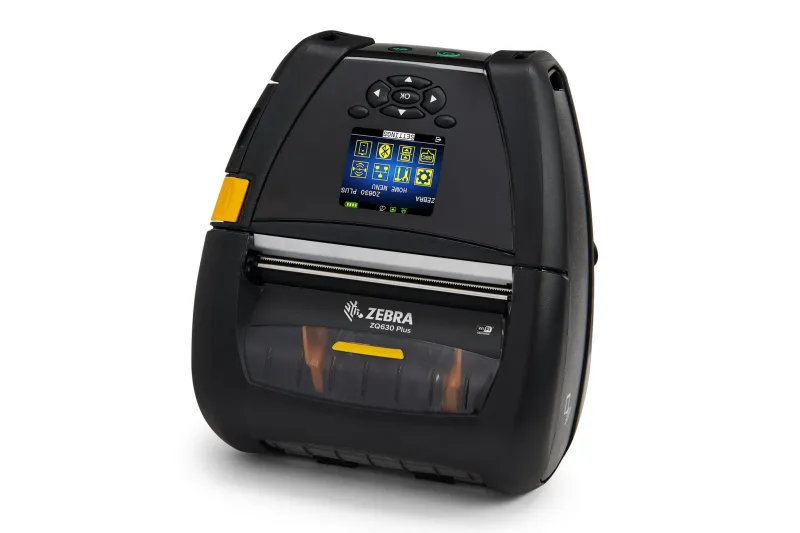

Zebra ZQ63-AUFAE14-00 label printer Direct thermal 203 x 203 DPI 115 mm/sec Wired & Wireless Bluetooth
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.4 cm Print speed: 115 mm/sec
- Built-in barcodes: Code 93, GS1 DataBar, Plessey, Code-128 Codabar Library, QR Code, AZTECCODE, CODABAR (NW-7), Data Matrix, Interleaved 2/5, TLC39, Macro PDF417, UPC-A, EAN128, MaxiCode, EAN13, UPC-E, EAN8, PDF417, Code 39
- Connectivity technology: Wired & Wireless
- USB port Bluetooth 4.2
- 1.1 kg
Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra’s ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity–6600 mAh–power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra’s Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.
| Printing | |
|---|---|
| Maximum printing width | 10.4 cm |
| Print speed | 115 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum media length | 81.3 cm |
| Supported paper width | 112 mm |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB port | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Built-in barcodes | Code 93, GS1 DataBar, Plessey, Code-128 Codabar Library, QR Code, AZTECCODE, CODABAR (NW-7), Data Matrix, Interleaved 2/5, TLC39, Macro PDF417, UPC-A, EAN128, MaxiCode, EAN13, UPC-E, EAN8, PDF417, Code 39 |
| Flash memory | 512 MB |
| Internal memory | 256 MB |
| Design | |
|---|---|
| Product colour | Black |
| Power | |
|---|---|
| Power source type | Battery |
| Battery capacity | 6600 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 – 50 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
|---|---|
| Weight | 1.1 kg |
| Height | 186.7 mm |
| Depth | 165.1 mm |
| Width | 82.5 mm |
