Vertiv Liebert GXTRT-2000IRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)
- Has high output power factor (0.9) which means more usable power that allows more connected loads
- This compact design UPS is ideal for space-constrained or edge of network deployments
- The intuitive LCD offers at-a-glance configuration information and user-friendly interface
- High efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO

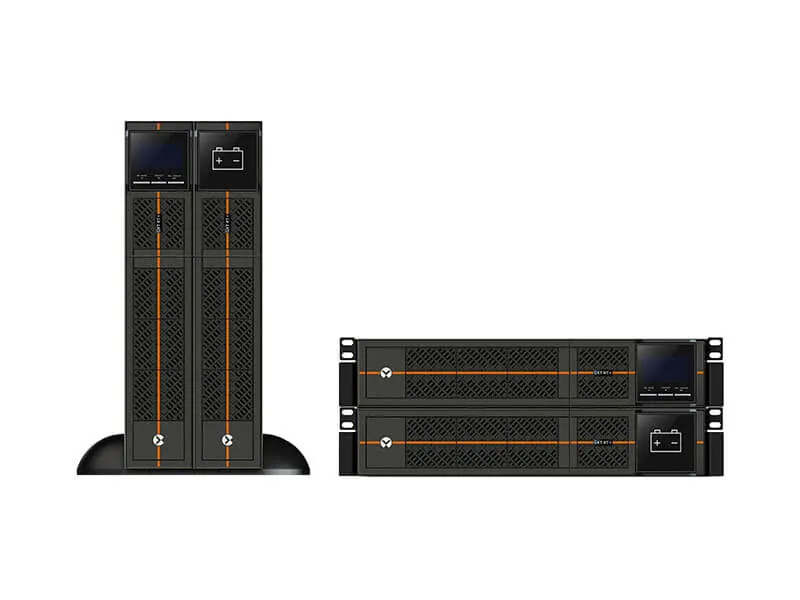

- Connected modules allows scalable runtime during failure of main utility power

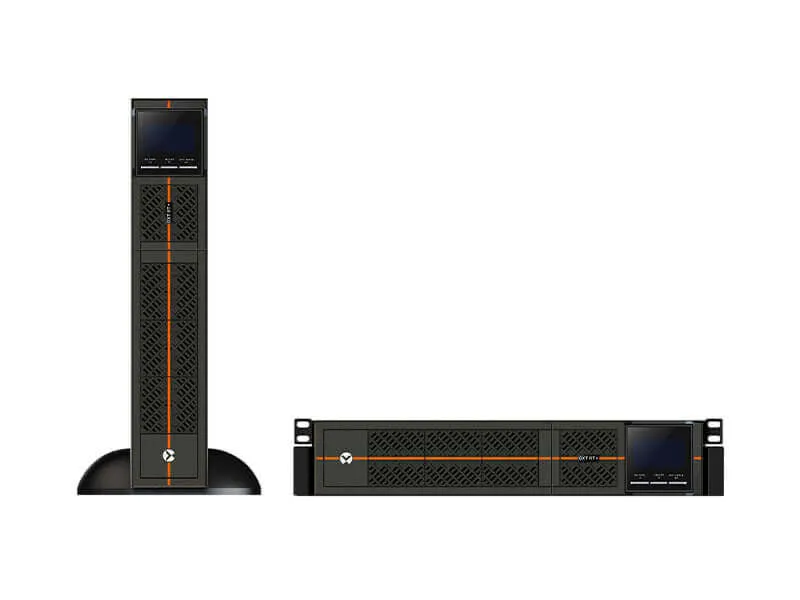

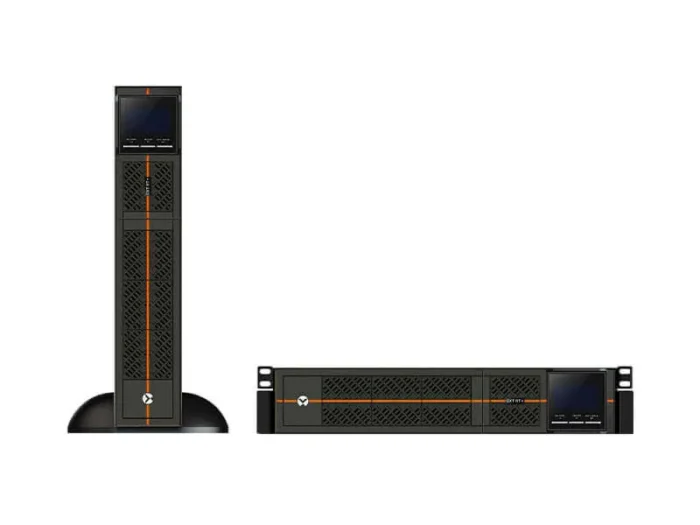

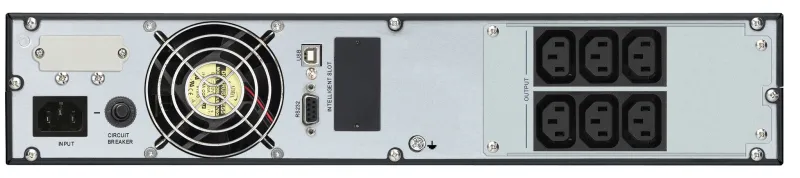

The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-2000IRT2UXL) is an online double conversion solution and a high quality battery backup. With a power capacity of 2kVA, it delivers the high-performance protection you need. The high 0.9 power factor of this single-phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and, delivering maximum value. This 1ph UPS adapts to areas with unstable power-mains supply and offers an optional tower or rack mount to meet varying installation requirements. The simplified installation with at-a-glance configuration information offers you a user-friendly interface (LCD) to work with. This model has a IEC60320 C14 INLET Connector Type and has 6 locking C13 receptacles. The ECO power-supply mode helps you save the maximum amount of energy which drives cost savings.
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
No |
| Output power factor |
0.9 |
| Input power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency (On-line mode) |
89% |
| Efficiency |
89% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output voltage regulation |
1% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
178 V |
| Waveform |
Pure sine |
| Output power |
1800 W |
| Output power capacity |
2 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Typical backup time at half load |
9 min |
| Typical backup time at full load |
3.2 min |
| Number of batteries supported |
4 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 – 2000 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 95% |
| Storage temperature (T-T) |
-20 – 50 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Safety regulation & standards |
| Safety |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
Input power cable, Output power cable, Power load cable, USB cable |
| Rack mount kit |
Yes |
| Certificates |
| Certification |
CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
18.2 kg |
| Height |
88 mm |
| Depth |
462 mm |
| Width |
438 mm |
| Packaging data |
| Package weight |
20.7 kg |
| Package height |
565 mm |
| Package depth |
240 mm |
| Package width |
700 mm |
| Logistics data |
| Shipping (inner) case gross weight |
20.7 kg |
| Shipping (inner) case height |
24 cm |
| Shipping (inner) case length |
70 cm |
| Shipping (inner) case width |
56.5 cm |
| Harmonized System (HS) code |
85078000 |
