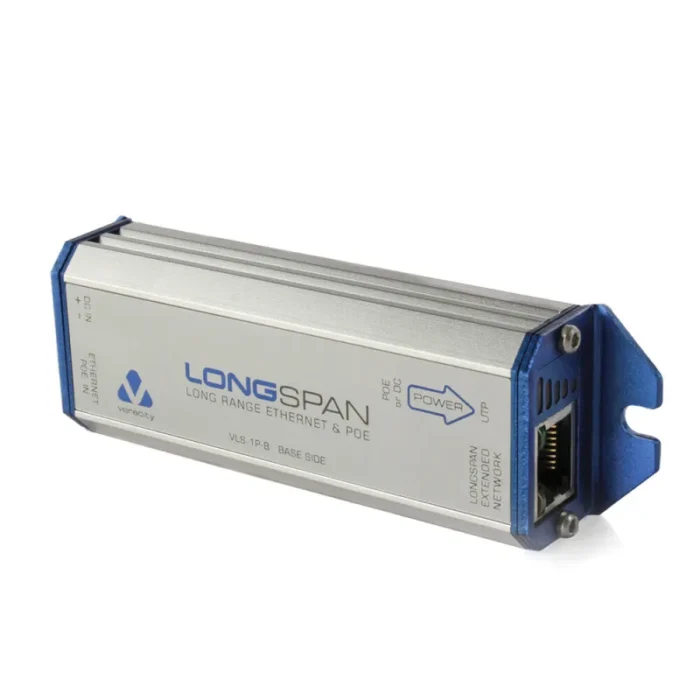

Veracity LONGSPAN Base Network transmitter Blue, Metallic
- Network transmitter 1000 m 200 Mbit/s
- 10/100Base-T(X)
- Power over Ethernet (PoE)
- Blue, Metallic

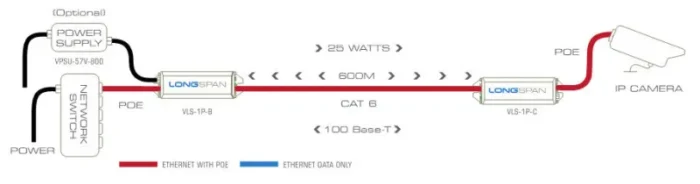

LONGSPAN Base Unit: long-range POE (powered via POE-in or VPSU-57V-X). Working together, LONGSPAN’s Base and Camera units deliver unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That’s why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e).
– As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
– LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
– For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.
| Performance |
| Auto-negotiation |
Yes |
| Duplex system |
Full |
| Cable types supported |
Cat5e, Cat6, Fiber |
| Data transfer rate |
200 Mbit/s |
| Maximum transfer distance |
1000 m |
| Type |
Network transmitter |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Cabling technology |
10/100Base-T(X) |
| Ports & interfaces |
| Power over Ethernet (PoE) ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
| Certification |
FCC, CE, RoHS |
| LED indicators |
Yes |
| Product colour |
Blue, Metallic |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
1 W |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating temperature (T-T) |
-40 – 70 °C |
| Weight & dimensions |
| Weight |
80 g |
| Height |
21 mm |
| Depth |
93 mm |
| Width |
35 mm |
| Packaging content |
| Manual |
Yes |
| Quick start guide |
Yes |
| Packaging data |
| Package weight |
100 g |
| Package height |
31 mm |
| Package depth |
137 mm |
| Package width |
60 mm |
| Certificates |
| Compliance certificates |
RoHS |
