Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 2.5 GbE PoE++ ports
- (16) GbE ports including (8) PoE+ and (8) PoE++
- (2) 10G SFP+ ports
- DC power backup ready
- 400W total PoE availability
- Managed with UniFi Network 8.0.24 and later

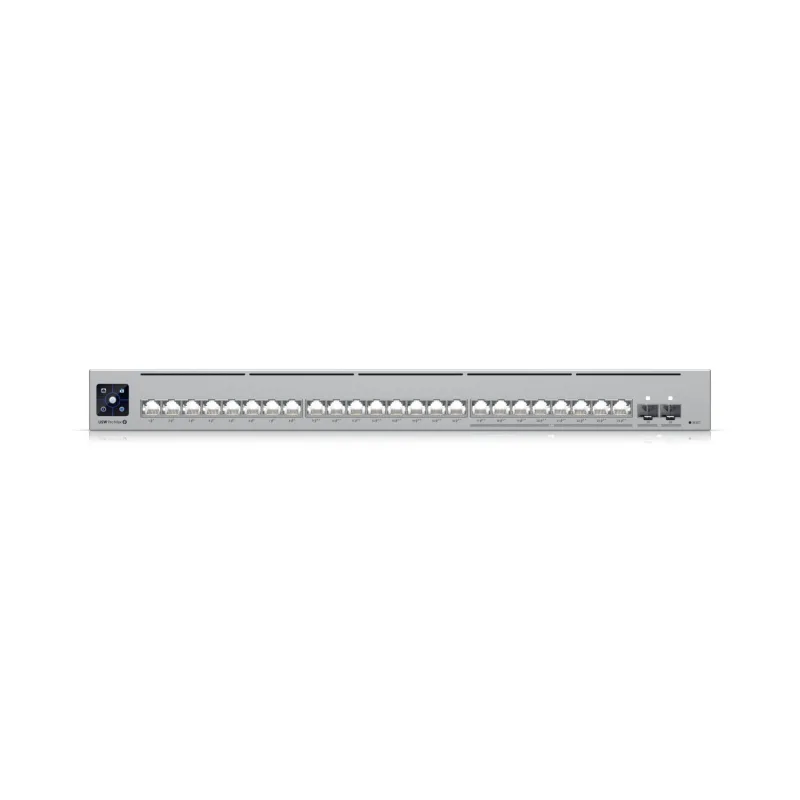

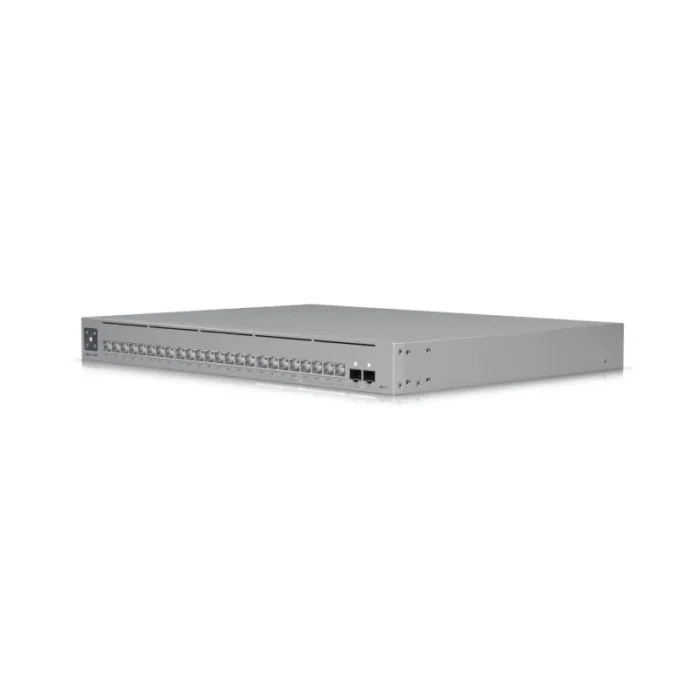

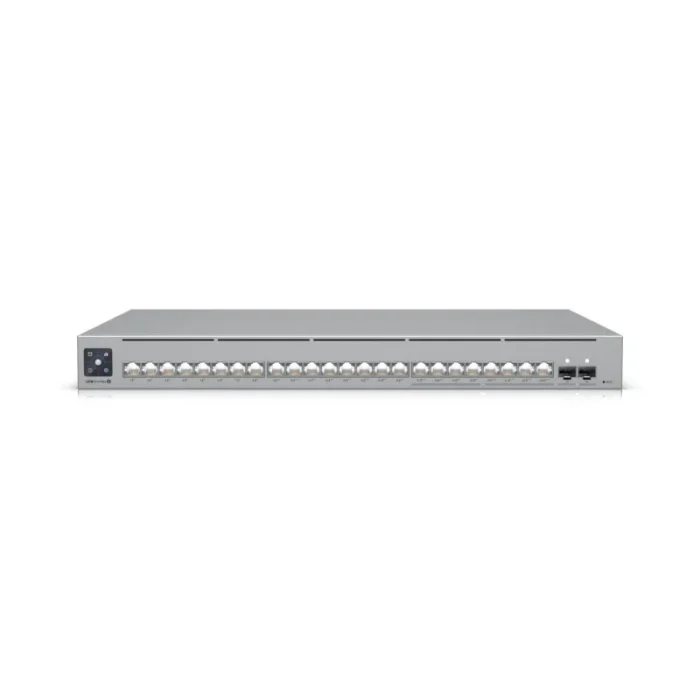

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
| Management features |
| Switch layer |
L3 |
| Ports & interfaces |
| Power connector |
AC/DC |
| Installed SFP+ modules quantity |
2 |
| 10G Ethernet (copper) ports quantity |
2 |
| 2.5G Ethernet (copper) ports quantity |
8 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| VLAN support |
Yes |
| 10G support |
Yes |
| Data transmission |
| Switching capacity |
112 Gbit/s |
| Design |
| Display type |
LCM |
| Backlight display |
Yes |
| LED indicators |
Link, Network, Speed, Status |
| Reset button |
Yes |
| Housing material |
SGCC |
| Product colour |
Grey |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
50 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
400 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Power over Ethernet (PoE) voltage |
57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
5.1 kg |
| Height |
43.7 mm |
| Depth |
325 mm |
| Width |
442.4 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
Power |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
