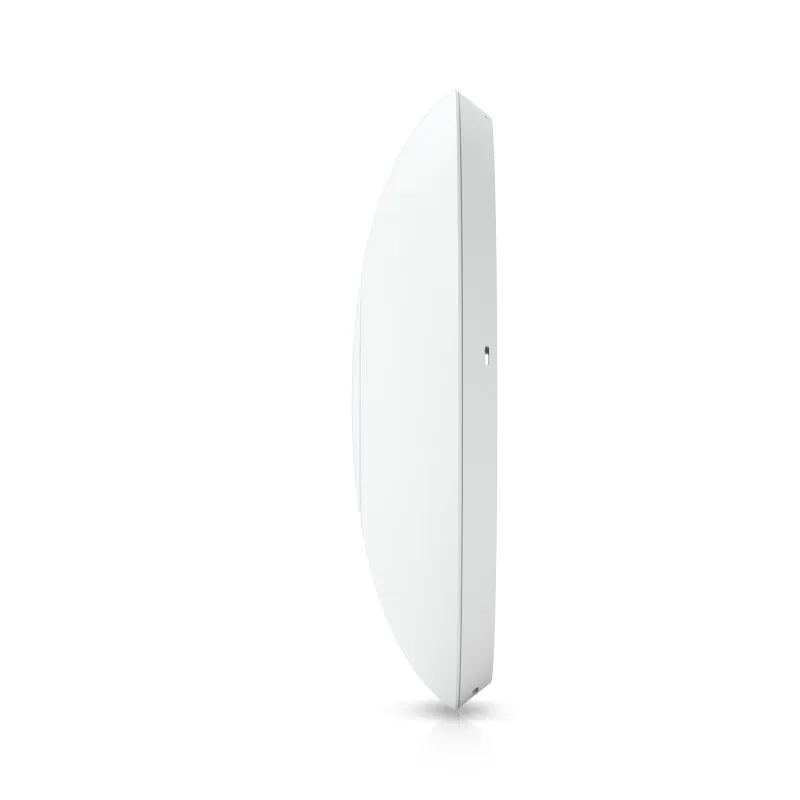

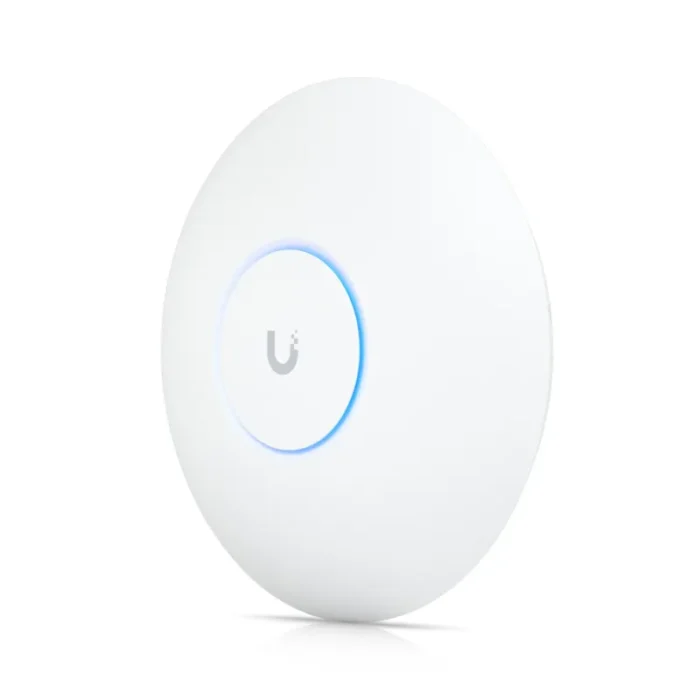

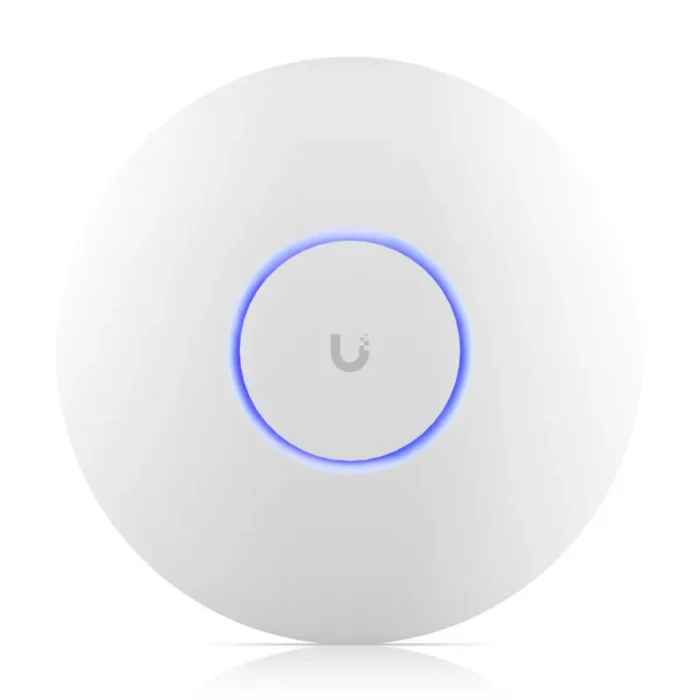

Ubiquiti U7 Pro Max 5700 Mbit/s White Power over Ethernet (PoE)
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
| Features |
| Quality of Service (QoS) support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Spatial streams |
8 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Frequency band |
2.4 – 5.7 GHz |
| Throughput data rate |
5765 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate |
5700 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
22 W |
| DC voltage range |
44 – 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Recommended usage |
Indoor |
| LED indicators |
Yes |
| Reset button |
Yes |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
| Antenna gain level (max) |
5.9 dBi |
| Antenna type |
Internal |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
| Weight |
680 g |
| Height |
46 mm |
| Depth |
206 mm |
| Width |
206 mm |
| Packaging content |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
-30 – 60 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Sustainability |
| Sustainability compliance |
Yes |
