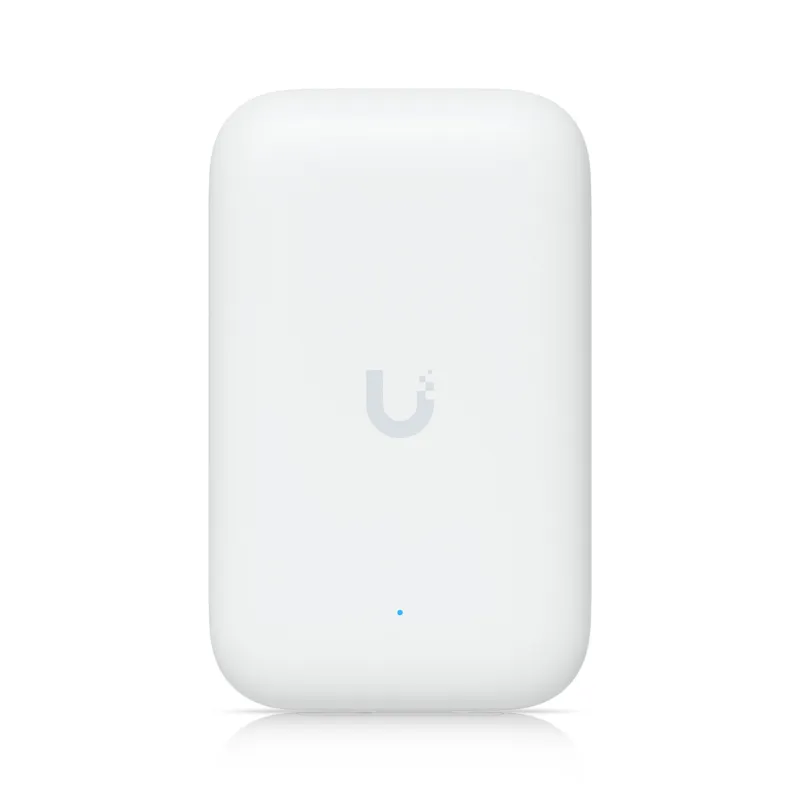

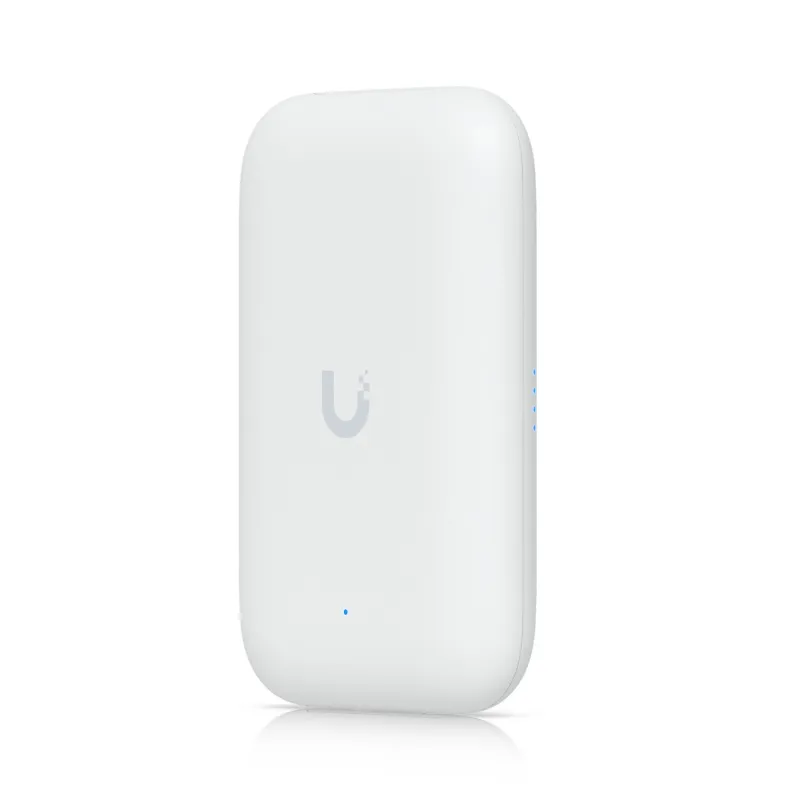

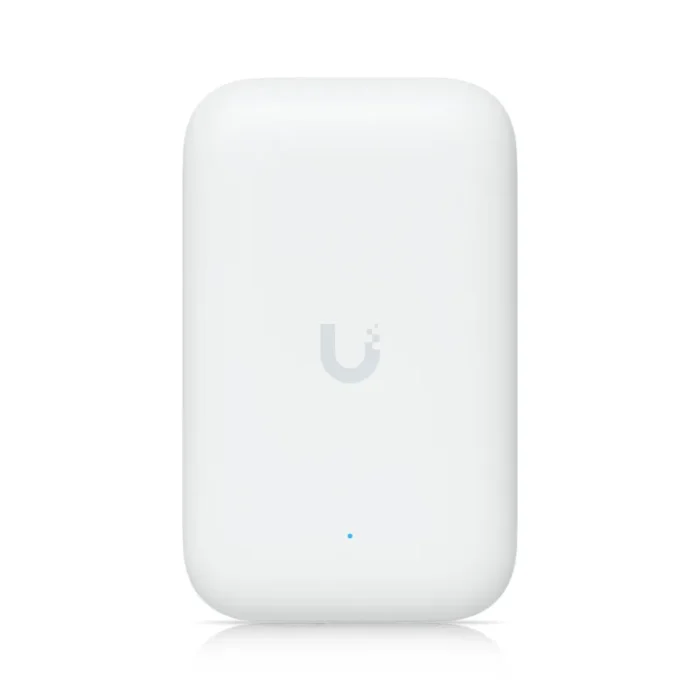

Ubiquiti Swiss Army Knife Ultra 866.7 Mbit/s White Power over Ethernet (PoE)
- 115 m² (1,250 ft²) coverage with internal antenna
- 200+ connected devices
- WiFi 5 (2×2 MIMO)
- Powered using PoE
- Compact form factor

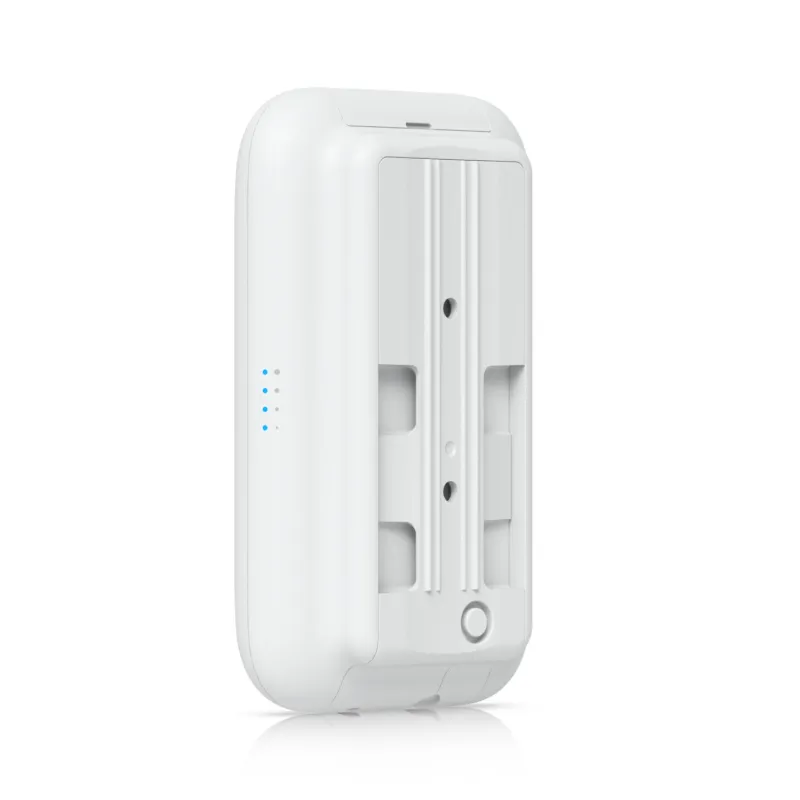

- Versatile wall and pole mounting
- (2) RP-SMA connectors for optional external antennas
Incredibly compact indoor/outdoor PoE access point with long-range external antenna support and versatile mounting options.
| Features |
| Quality of Service (QoS) support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
866.7 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
866.7 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
AES, TKIP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
| Management features |
| Web-based management |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
8 W |
| DC voltage range |
44- 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Power, Signal strength |
| Reset button |
Yes |
| International Protection (IP) code |
IPX6 |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling, Pole, Wall |
| Antenna |
| Number of connectors |
2 |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
6 dBi |
| Antennas quantity |
1 |
| Antenna type |
Internal |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Weight & dimensions |
| Weight |
173 g |
| Height |
137 mm |
| Depth |
34 mm |
| Width |
84 mm |
| Packaging content |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
-40 – 60 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Sustainability |
| Sustainability compliance |
Yes |
