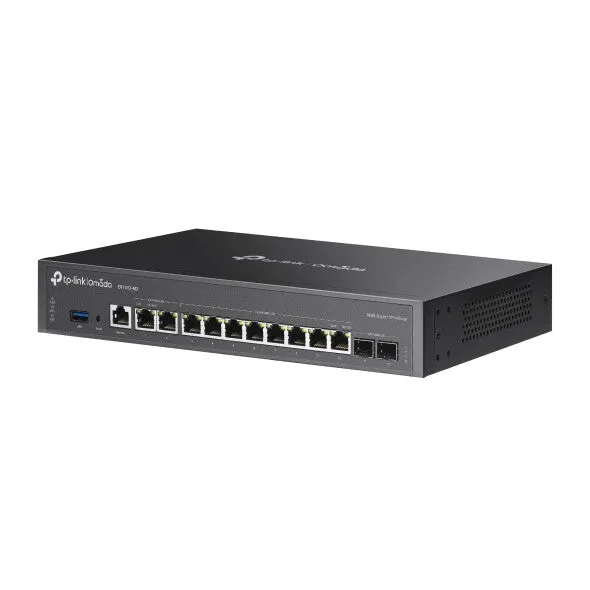

TP-Link Omada Multi-Gigabit VPN Router
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Omada Multi-Gigabit VPN Router
– 2× 2.5Gbps WAN/LAN RJ45 Ports
– 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
– Load Balancing on up to 11 WAN Ports
– Quad-Core 2.0 GHz CPU
– Centralized Cloud Management
– SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
– Multi-Net DHCP
– DPI & IPS/IDS
Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
| WAN connection | |
|---|---|
| SFP WAN | Yes |
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Static route | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Management features | |
|---|---|
| Reset button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Number of console ports | 1 |
| SFP module slots quantity | 2 |
| WAN/Ethernet LAN ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 7 |
| Protocols | |
|---|---|
| DMZ support | Yes |
| DHCP server | Yes |
| General | |
|---|---|
| Product family | Omada |
| Security | |
|---|---|
| VPN tunnels quantity | 80 |
| Network address translation (NAT) | Yes |
| Access Control List (ACL) | Yes |
| ICMP attack prevention | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| URL filtering | Yes |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Features | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Internal memory type | DDR4 |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 18.5 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 180 mm |
| Width | 294 mm |
