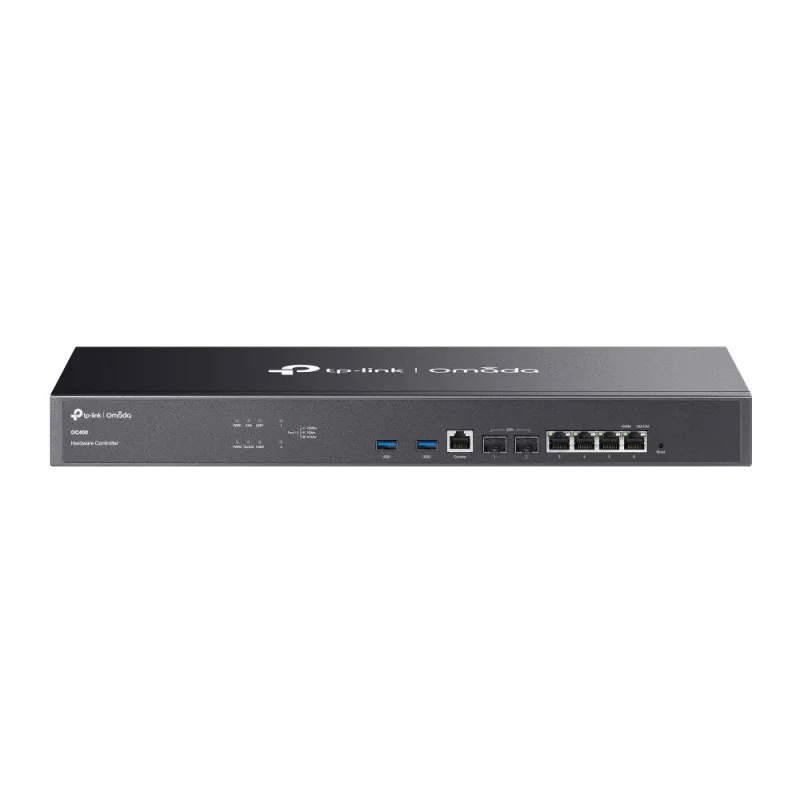

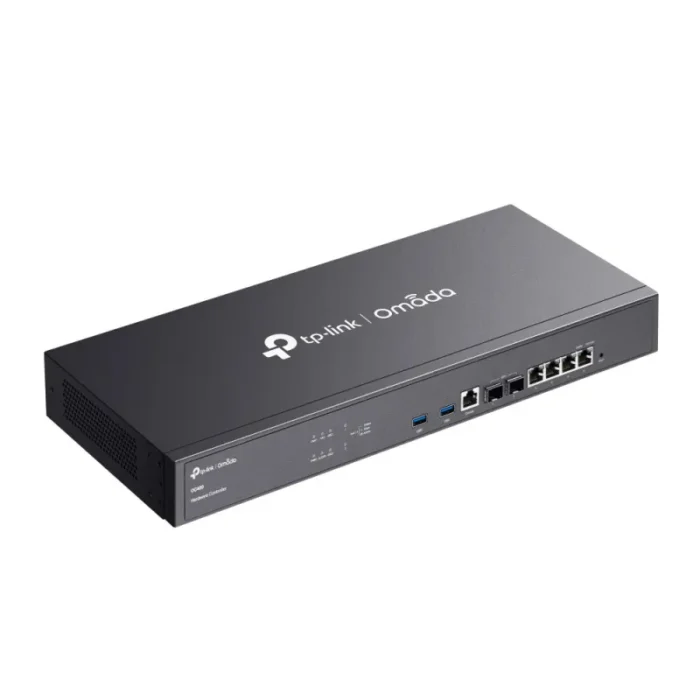

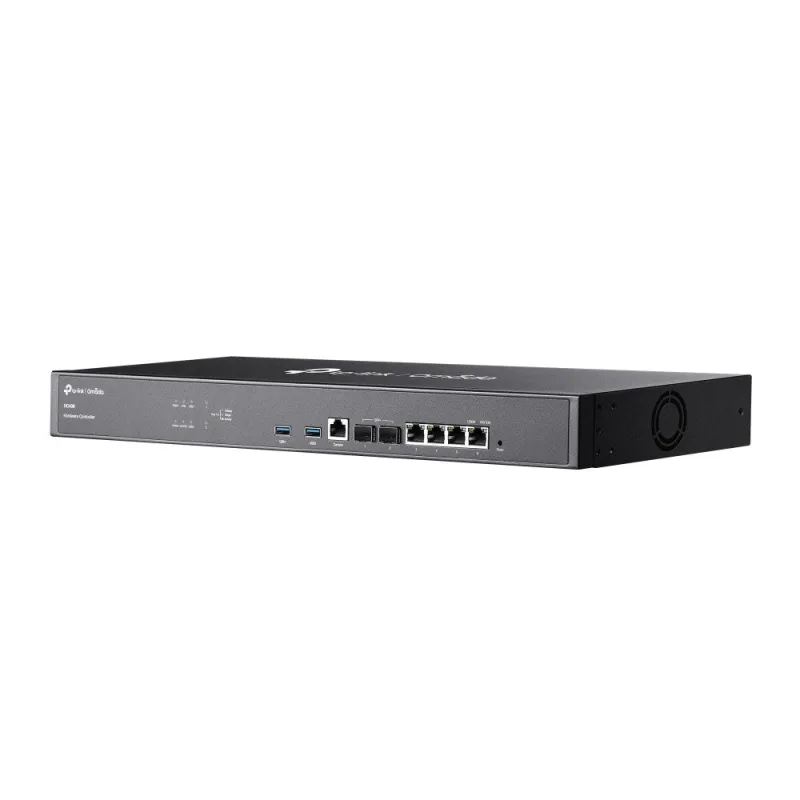

TP-Link Omada Hardware Controller (OC400)
- Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.*
- 2× 10GE SFP+ Slots, 4× GE RJ45 Ports, and 2× USB 3.0 Ports
- Redundant power supplies offer a reliable networking architecture
- Free cloud access with the Omada app or Web UI from anywhere, anytime
- On-premises manages to locally monitor and manage devices
- The easy-to-use dashboard and real-time network topology make network monitoring easy
- Batch and multi-site management benefit network maintenance
Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.
| Design |
| LED indicators |
Yes |
| Product colour |
Grey |
| Performance |
| Flash memory |
4 MB |
| SSD capacity |
32 GB |
| Internal memory |
8 MB |
| Internal memory type |
DDR4 |
| Built-in processor |
Yes |
| Control display unit |
No |
| Network |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Ports & interfaces |
| DC-in jack |
Yes |
| SFP+ ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
4 |
| Number of console ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Management features |
| Performance management |
• Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients |
| Management platform |
Omada App |
| Reset button |
Yes |
| Power |
| Input frequency |
50/60 Hz |
| Input voltage |
100 – 240 V |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
| Packaging content |
• Omada Hardware Controller OC400• Quick Installation Guide• Ethernet Cable• Power Cord• Rackmount Kit |
| Cables included |
LAN (RJ-45), Power |
| Quick installation guide |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| General |
| Product family |
Omada |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
