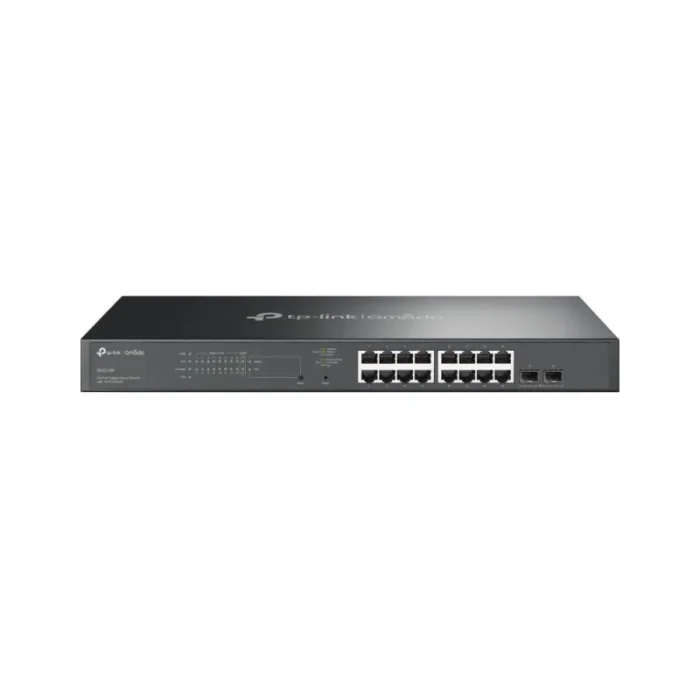

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
- 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and rackmountable design
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.
| Management features |
| MIB support |
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spanning tree protocol |
Yes |
| IP routing |
Yes |
| Policy-based routing |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9 |
| Jumbo frames support |
Yes |
| Forwarding rate |
26.78 Mpps |
| Switching capacity |
26.78 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Loop protection |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Static port security |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP snooping |
| Multicast features |
| Multicast features |
Multicast forwarding |
| Multicast support |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
181.4 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
DC/PoE |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
150 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
619.06 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| User guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Packaging data |
| Package type |
Box |
| General |
| Product family |
Omada |
| Certificates |
| Certification |
CE, FCC, RoHS |
