TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications

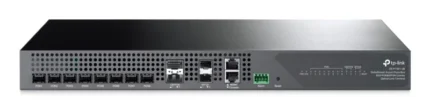

8-Port GPON Optical Line Terminal
8 GPON Ports,
Supports 1024 ONUs
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
Free Centralized Management
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
– No Additional Expense
– Improve Management Efficiency And Reduce Maintenance Costs
– The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

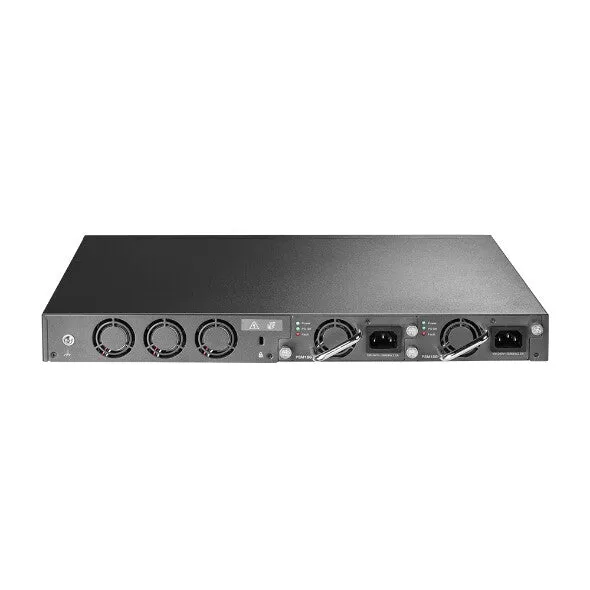

Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
| Features | |
|---|---|
| Access Control List (ACL) | Yes |
| Maximum operating distance (GPON) | 20000 m |
| GPON split ratio (max) | 1:128 |
| Quality of Service (QoS) support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| IGMP snooping | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| Static route | Yes |
| Ports & interfaces | |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| GPON ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Upstream ports | Gigabit Ethernet |
| Power | |
|---|---|
| Power consumption (max) | 70 W |
| DC voltage range | 38.4 – 72 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 260 mm |
| Width | 440 mm |
| General | |
|---|---|
| Product family | DeltaStream |
