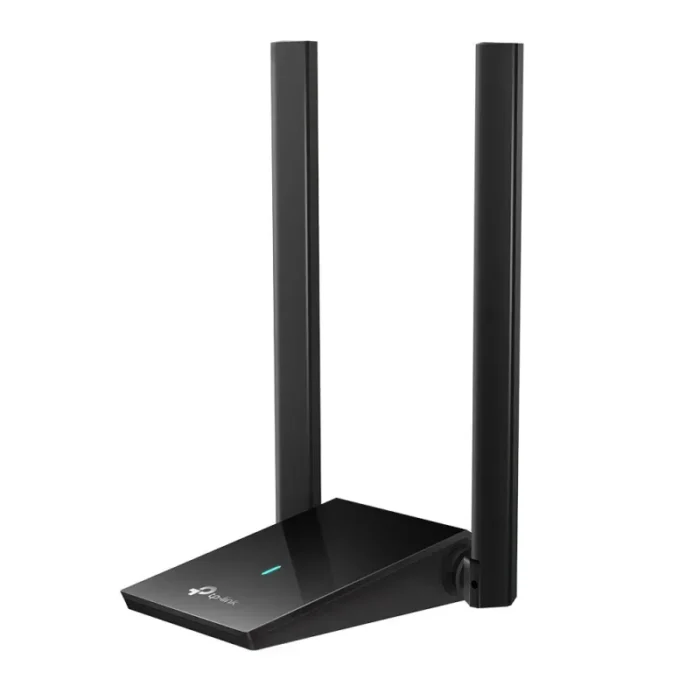

TP-Link AX1800 Dual Antennas High Gain Wireless USB Adapter
- Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
- Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
- Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
- MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
- OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
- Refined Security – Protect your personal data with the latest WPA3 encryption
Level Up Your PC with WiFi 6
High-Gain Wireless USB Adapter
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement

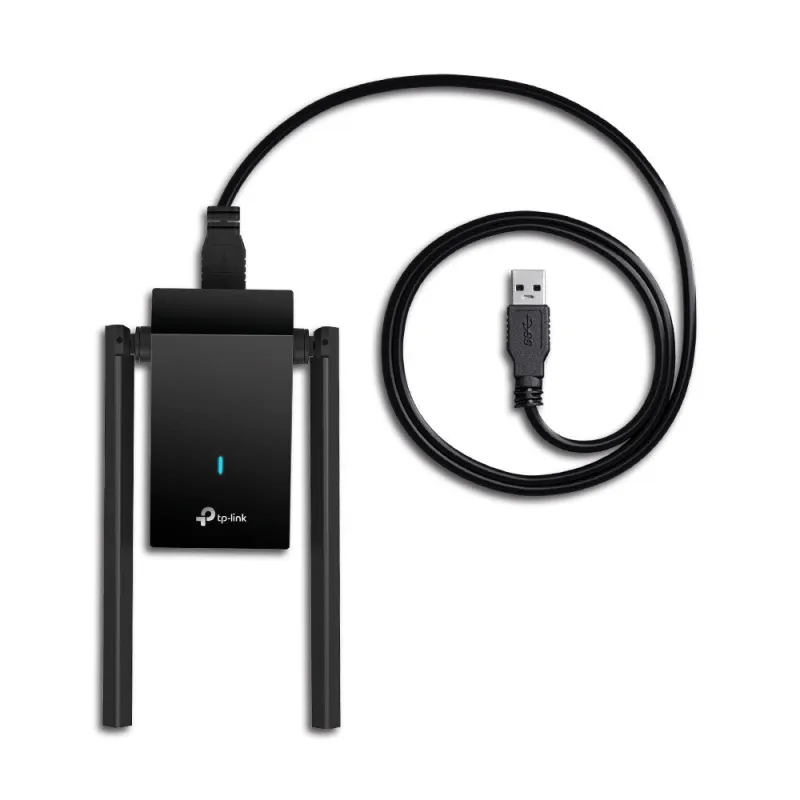

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| MU-MIMO | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| WLAN data transfer rates supported | 11,54,300,400,574,867,1200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1800 Mbit/s |
| Design | |
|---|---|
| Operating modes | Infrastructure mode |
| LED indicators | Status |
| Transmitting power (FCC) | 19 dBm |
| Transmitting power (CE) | 16 dBm |
| Antenna type | External |
| Product colour | Black |
| Component for | PC |
| Internal | No |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 19.2 mm |
| Depth | 156.3 mm |
| Width | 84 mm |
| Packaging data | |
|---|---|
| Package weight | 230 g |
| Package height | 46.5 mm |
| Package depth | 153 mm |
| Package width | 201.5 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | USB |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Other features | |
|---|---|
| Antennas quantity | 2 |
