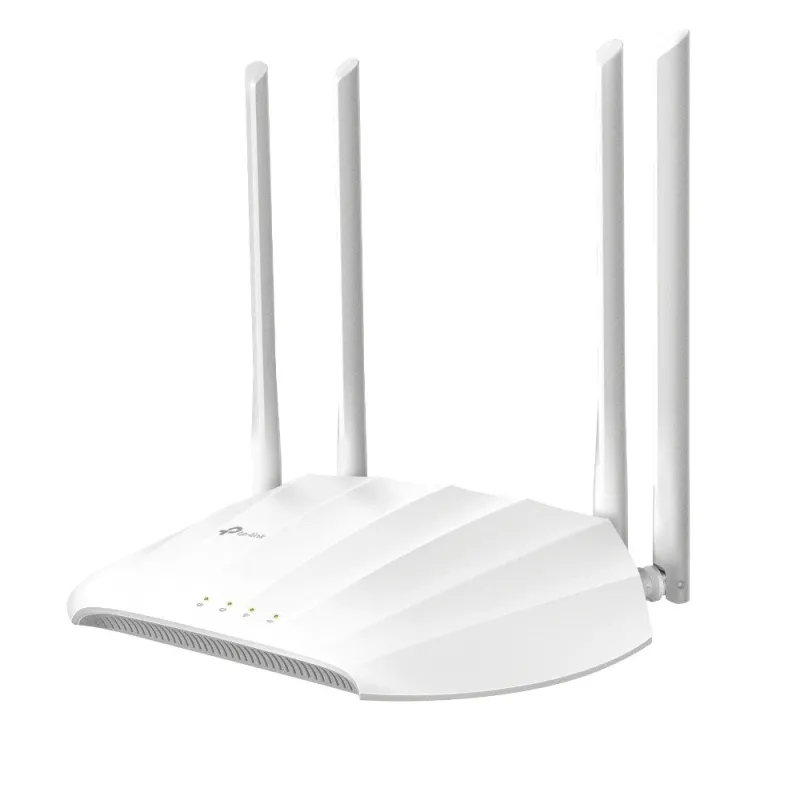

TP-Link AC1200 Wireless Access Point
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Captive Portal – Offers a designed portal page for heightened security and marketing
AC1200 Wireless Access Point
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.
| Features |
| Receiver sensitivity |
5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm , 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Fit AP mode features |
Wireless distribution system (WDS) |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
867 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Access Control List (ACL) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
| Supported network protocols |
IPv4, IPv6 |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Management features |
| Firmware upgradeable |
Yes |
| Web-based management |
Yes |

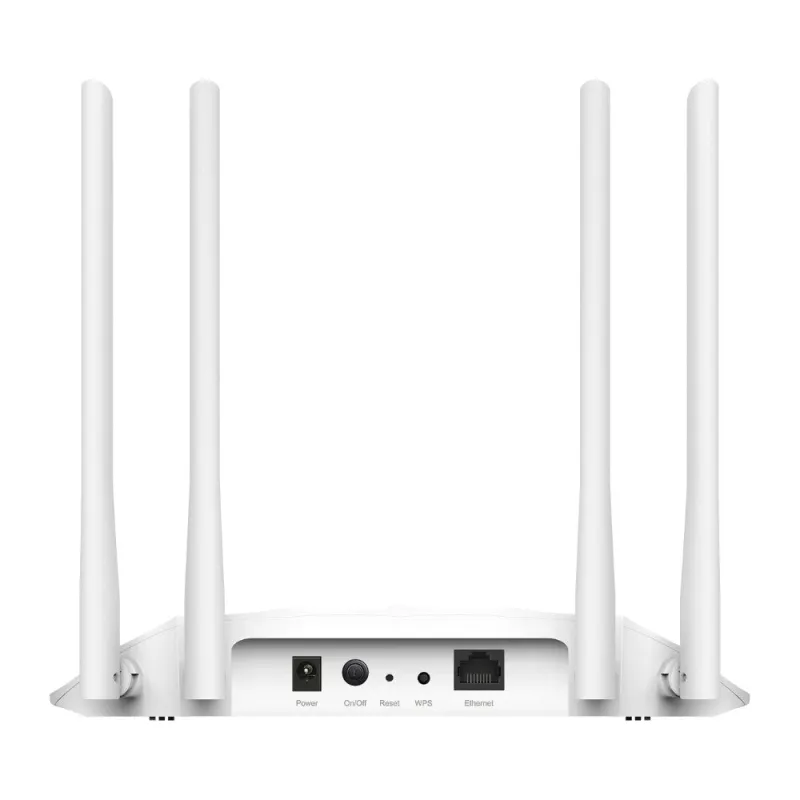

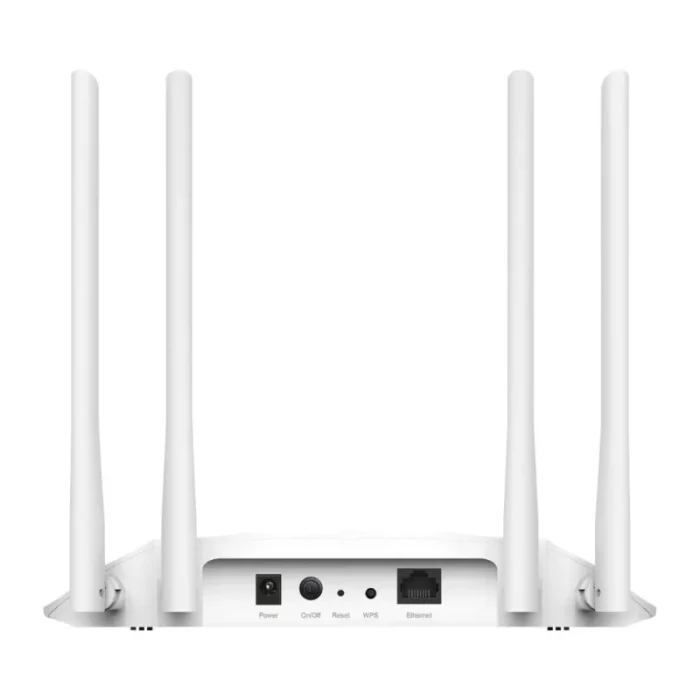

| Ports & interfaces |
| DC-in jack |
Yes |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Output current |
1.5 A |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Product colour |
White |
| Placement |
Table |
| Antenna |
| Antennas quantity |
4 |
| Antenna type |
External |
| Performance |
| Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Weight & dimensions |
| Height |
37 mm |
| Depth |
145.5 mm |
| Width |
225 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
860 g |
| Package height |
69 mm |
| Package depth |
255 mm |
| Package width |
400 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
