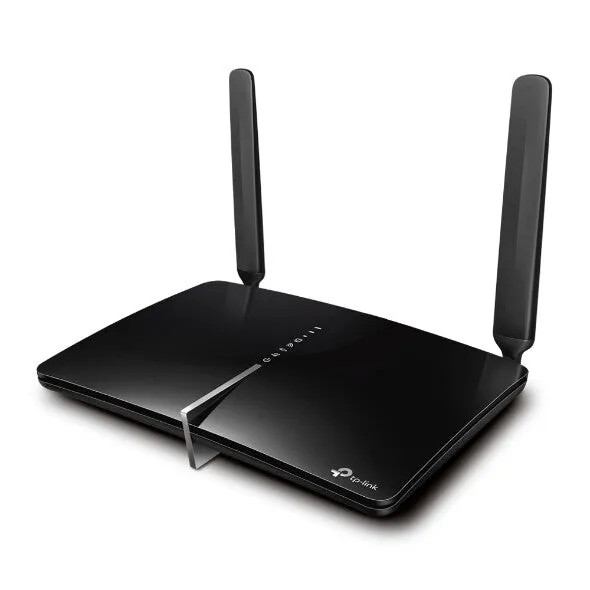

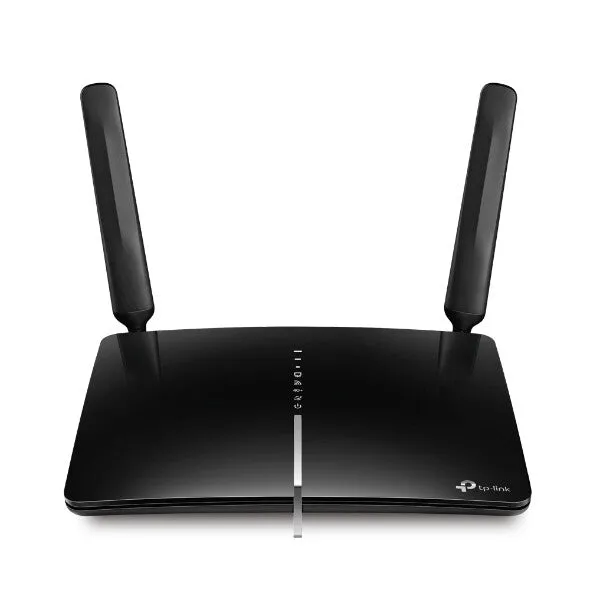

TP-Link 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
- TP-Link’s First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
- Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
Enjoy 4G+ Speed Sharing Everywhere
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
Boost Your 4G+ Speed
Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.
Fully Gigabit Ports for Consummate Connectivity
Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Got SIM Card?
Then Plug and Play!
With an integrated 4G+ modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G+ network has never been easier.
Reliable Access for Up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR600 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 300 Mbit/s |
| WLAN data transfer rate (first band) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 5 GHz: 11a 54M: -74 dBm11ac HT20: -66 dBm11ac HT40: -63 dBm11ac HT80 : -59 dBm11n HT20: -73 dBm11n HT40: -70 dBm2.4 GHz: 11g 54M: -74 dBm11n HT20: -72 dBm11n HT40: -69 dBm |
| VPN support | PPTP VPN, IPSec VPN , OpenVPN |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| UMTS bands supported | 850,900,2100 MHz |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type | MicroSIM |
| 4G standard | LTE |
| 3G standards | HSPA, HSPA+, UMTS |
| Dual SIM support | No |
| 5G | No |
| 3G | Yes |
| 4G | Yes |
| Mobile network generation | 4G |

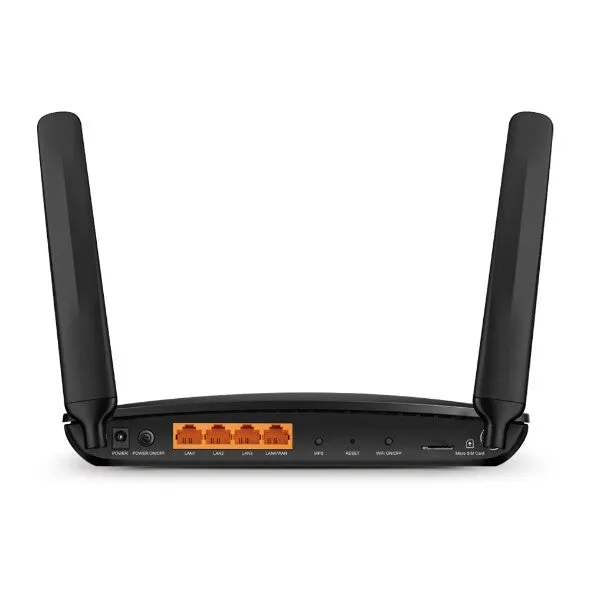

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| URL filtering | Yes |
| Filtering | Yes |
| Parental control | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Firewall security | Domain Filter, IP, MAC Address Binding |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Routing protocols | IP |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| LED indicators | LAN, Power, WLAN |
| Wall mountable | No |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Antenna design | External |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power source type | AC, DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Width | 229 mm |
| Depth | 160 mm |
| Height | 37 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package type | Box |
| Package height | 70 mm |
| Package depth | 223 mm |
| Package width | 307 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
