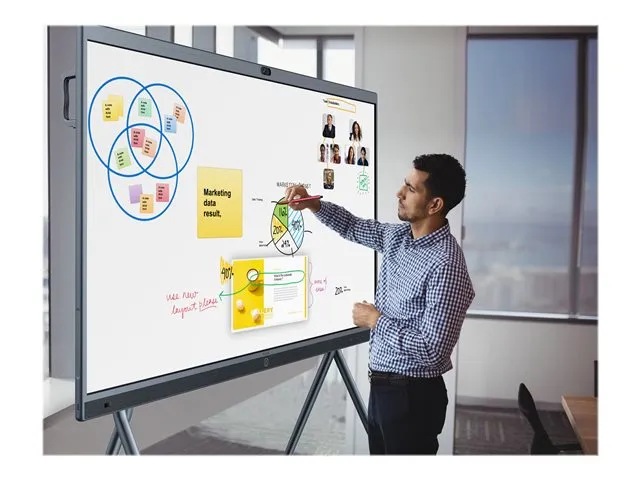

TieDex UK Yealink MeetingBoard 86″ LED-backlit LCD display – 4K – for interactive communication
Yealink MeetingBoard – 86″ Diagonal Class LED-backlit LCD display – interactive – with built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array – 4K UHD (2160p) 3840 x 2160 – direct-lit LED
Basic Specifications
- Manufacturer’s Part Number
- MB86-A001
- EAN
- 6938818310759
- Voltage
- AC 100-240 V
- Product Type
- LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array
- Dimensions (WxDxH)
- 196.7 cm x 9.2 cm x 120.5 cm
- Storage Capacity
- 64 GB (system 24 GB + available 40 GB)
- Product Description
- Yealink MeetingBoard 86″ LED-backlit LCD display – 4K – for interactive communication
- Included Accessories
- Mounting bracket, 4 pen styluses, power cable (3 m)
- HDMI Ports Qty
- 1 ports
- LCD Backlight Technology
- Direct-lit LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Display Format
- 4K UHD (2160p)
- USB
- 3 ports
- Diagonal Class
- 86″
- Connectivity
- Wi-Fi, LAN, Bluetooth, NFC
- Video Interface
- HDMI
- Environmental Standards
- ENERGY STAR Qualified
- Speaker System
- 4 speakers, 2 tweeters
- TV Tuner
- No tuner
- Commercial Use
- Yes – interactive
- Frame Rate & Enhancement Technology
- 60 Hz Frequency
Dimensions & Weight (Shipping)
- Width (Shipping)
- 209 cm
- Depth (Shipping)
- 28 cm
- Height (Shipping)
- 132 cm
Connections
- Connector Type
- Camera connector ¦ HDMI output ¦ HDMI input ¦ Audio input ¦ Audio output ¦ Yealink VCH ¦ 3 x USB ¦ Gigabit LAN
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 95%
Media Player
- Supported Video Formats
- H.264
- USB Port
- Yes
- USB Ports Qty
- 3
- Configuration
- 64 GB (system 24 GB + available 40 GB)
General
- Product Type
- LED-backlit LCD flat panel display
- Diagonal Class
- 86″
- Commercial Use
- Yes – interactive
- Combined With
- Built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array
- Operating System
- Android OS 10
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Motion sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 1 ports
- Width
- 196.7 cm
- Depth
- 9.2 cm
- Height
- 120.5 cm
Display
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Frequency
- LCD Backlight Technology
- Direct-lit LED
- Coating
- Anti-glare, anti-fingerprint
- Image Contrast Ratio
- 1200:1
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 20
- Features
- Security lock slot (cable lock sold separately), OPS Slot
Miscellaneous
- Included Accessories
- Mounting bracket, 4 pen styluses, power cable (3 m)
- Cables Included
- Network cable – 3 m ¦ HDMI cable – 1.8 m
- Compliant Standards
- ISO 9001, NOM, CCC, FCC, RoHS, AES-256, REACH, RCM, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, Microsoft Teams certified
Network & Internet Multimedia
- Functionality
- Teams whiteboard
- Connectivity
- Wi-Fi, LAN, Bluetooth, NFC
- LAN Protocol
- Gigabit Ethernet
- Wi-Fi Protocol
- 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac, 802.11ax
- Bluetooth Version
- Bluetooth 5.0
Stands & Mounts
- Stand
- Optional
Audio System
- Speaker System
- 4 speakers, 2 tweeters
- Features
- Echo cancellation, audio auto gain control, Micro Electro Mechanical System (MEMS), Yealink Enhanced Noise Proof technology, reverberation suppression
- Speakers
- 4 x main channel speaker ¦ 2 x tweeter
Environmental Standards
- ENERGY STAR Certified
- Yes
Sustainability Information
- ENERGY STAR Certified
- Yes
