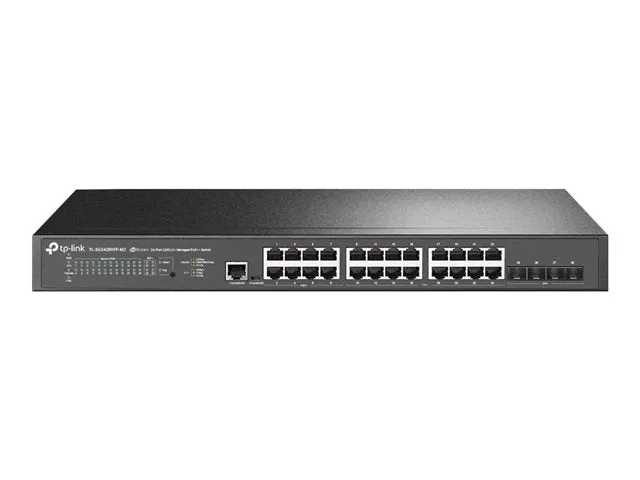

TieDex UK TP-Link JetStream TL-SG3428XPP-M2 V1 – switch – 24 ports – Managed – rack-mountable
TP-Link JetStream TL-SG3428XPP-M2 V1 – Switch – L2+ – Managed – 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+ – rack-mountable – PoE++ (500 W)
Basic Specifications
- Manufacturer’s Part Number
- TL-SG3428XPP-M2
- EAN
- 4897098689769
- Product Description
- TP-Link JetStream TL-SG3428XPP-M2 V1 – switch – 24 ports – Managed – rack-mountable
- Model
- TP-Link JetStream TL-SG3428XPP-M2 V1
- Dimensions (WxDxH)
- 44 cm x 33 cm x 4.4 cm
- Features
- Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, LLDP support, DHCP relay, Port Security, MIB, MVR, port isolation, CoS, SP, tagged VLAN, 802.1x authentication, DSCP support, 3 fans, MAC and IP-based ACLs support, Storm Control, system log, IP source guard, ARP inspection, BPDU, Link Aggregation, MIB II, dual image support, SDN, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, VLAN group, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, DHCPv6 snooping, LLDP-MED
- Power
- AC 100-240 V (50/60 Hz)
- Device Type
- Switch – 24 ports – L2+ – Managed
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt
- Capacity
- IP interfaces: 32 ¦ Packet buffer size: 16 MB ¦ Static routes: 48 ¦ IGMP groups: 511 ¦ Priority queues: 8 ¦ Maximum aggregation groups: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ VLAN groups: 4000 ¦ MAC addresses per port: up to 64 ¦ Static ARP entries: 128
- MAC Address Table Size
- 32K entries
- Subtype
- 2.5 Gigabit Ethernet
- Performance
- Switching capacity: 200 Gbps ¦ Packet forwarding rate: 148.80 Mpps
- Enclosure Type
- Rack-mountable
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- System Requirements
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB
- Jumbo Frame Support
- 9KB
- Ports
- 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+
- PoE Budget
- 500 W
- Power Over Ethernet (PoE)
- PoE++
General
- Device Type
- Switch – 24 ports – L2+ – Managed
- Enclosure Type
- Rack-mountable
- Subtype
- 2.5 Gigabit Ethernet
- Ports
- 16 x 10/100/1000/2.5G (PoE+) + 8 x 10/100/1000/2500 (PoE++) + 4 x 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE++
- PoE Budget
- 500 W
- Performance
- Switching capacity: 200 Gbps ¦ Packet forwarding rate: 148.80 Mpps
- Capacity
- IP interfaces: 32 ¦ Packet buffer size: 16 MB ¦ Static routes: 48 ¦ IGMP groups: 511 ¦ Priority queues: 8 ¦ Maximum aggregation groups: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ VLAN groups: 4000 ¦ MAC addresses per port: up to 64 ¦ Static ARP entries: 128
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, TACACS+, RADIUS, MIB
- Encryption Algorithm
- SSL, SSL 3.0, TLS 1.2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, LLDP support, DHCP relay, Port Security, MIB, MVR, port isolation, CoS, SP, tagged VLAN, 802.1x authentication, DSCP support, 3 fans, MAC and IP-based ACLs support, Storm Control, system log, IP source guard, ARP inspection, BPDU, Link Aggregation, MIB II, dual image support, SDN, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, VLAN group, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, DHCPv6 snooping, LLDP-MED
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt
- RAM
- 256 MB
- Flash Memory
- 32 MB
- Status Indicators
- Status
Dimensions & Weight
- Width
- 44 cm
- Depth
- 33 cm
- Height
- 4.4 cm
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Expansion / Connectivity
- Interfaces
- 16 x 10/100/1000/2.5G RJ-45 PoE+ – 30 W ¦ 8 x 10/100/1000/2.5G RJ-45 PoE++ – 60 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x micro-USB console
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 629.1 Watt
- Power Consumption Stand by
- 24.2 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% RH (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 – 90% RH (non-condensing)
Software / System Requirements
- OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11
