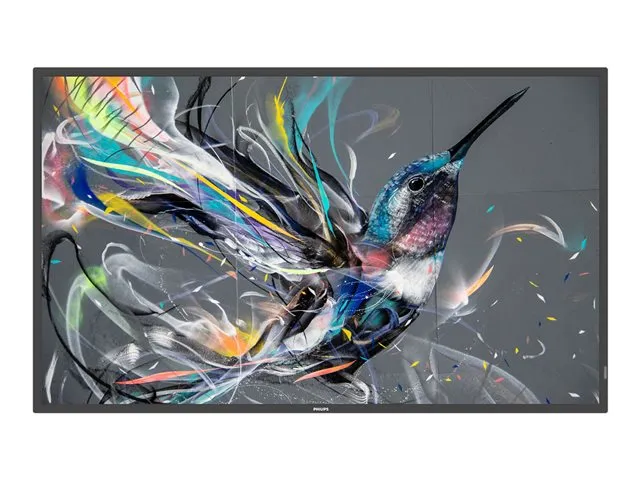

TieDex UK Philips 75BDL3650Q Q-Line – 75″ Class (74.5″ viewable) LED-backlit LCD display – 4K – for digital signage
Philips 75BDL3650Q – 75″ Diagonal Class (74.5″ viewable) – Q-Line LED-backlit LCD display – digital signage – 4K UHD (2160p) 3840 x 2160 – Direct LED
Basic Specifications
- Manufacturer’s Part Number
- 75BDL3650Q/00
- EAN
- 8712581799335
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Weight
- 35.75 kg
- Product Description
- Philips 75BDL3650Q Q-Line – 75″ Class (74.5″ viewable) LED-backlit LCD display – 4K – for digital signage
- Model
- Philips 75BDL3650Q
- Manufacturer Warranty
- 3-year warranty
- HDMI Ports Qty
- 2 ports
- LCD Backlight Technology
- Direct LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Display Format
- 4K UHD (2160p)
- USB
- Yes
- Voltage
- AC 100-240 V (50/60 Hz)
- Commercial Features
- HTML5 support, FailOver
- Dimensions (WxDxH) – without stand
- 168.35 cm x 6.95 cm x 96.17 cm
- Diagonal Class
- 75″
- Included Accessories
- Remote control, USB dust cover, 3 clampers, logo sticker, screws
- Power Consumption Stand by
- 0.5 Watt
- Connectivity
- LAN
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Diagonal Size
- 74.5″
- Speaker System
- 2 speakers
- PC Interface
- DVI
- Technology
- ADS
- TV Tuner
- No tuner
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
- Picture Enhancements
- Dynamic contrast enhancement, progressive scan
- Storage Capacity
- 16 GB
- Input Video Formats
- 1080/60i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i, 2160/50p, 2160/60p
- Supported Memory Cards
- microSD
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Diagonal Class
- 75″
- Diagonal Size
- 74.5″
- Commercial Use
- Yes – digital signage
- Series
- Q-Line
- Operating System
- Android OS 10
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- PC Interface
- DVI
- Modes
- Portrait mode, landscape mode
- Picture Enhancements
- Dynamic contrast enhancement, progressive scan
- Dimensions
- Without stand
- Width
- 168.35 cm
- Depth
- 6.95 cm
- Height
- 96.17 cm
- Weight
- 35.75 kg
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Features
- Smart power
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 – 80% RH (non-condensing)
Miscellaneous
- Included Accessories
- USB dust cover, 3 clampers, logo sticker, screws
- Cables Included
- IR sensor cable – 1.8 m ¦ RS-232 daisy chain cable ¦ RS232 cable
- Compliant Standards
- FCC Class A certified, UL, VCCI, CB, RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years
Network & Internet Multimedia
- Connectivity
- LAN
Stands & Mounts
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 2 x HDMI input ¦ DVI-I input ¦ 2 x USB 2.0 ¦ USB 3.0 ¦ Audio line-out ¦ Audio line-in ¦ LAN ¦ RS-232C input/output ¦ Infrared input/output
Remote Control
- Type
- Remote control
- Battery Form Factor
- AAA type
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 20 Watt
- Speakers
- 2 x speaker – 10 Watt
Media Player
- Supported Video Formats
- MPEG-4, AVI, H.264, H.263, MPEG, H.265, VP8
- Supported Audio Formats
- AAC, HE-AAC
- Supported Pictures Formats
- BMP, PNG, JPEG
- Supported Memory Cards
- microSD
- USB Port
- Yes
- Configuration
- ARM Cortex-A55 Quad-Core – 3 GB – 16 GB – Mali G52 MC1
Video Features
- Input Video Formats
- 1080/60i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i, 2160/50p, 2160/60p
- Supported Computer Resolutions
- 1024 x 768 (XGA), 800 x 600 (SVGA), 832 x 624, 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 720, 720 x 400, 1152 x 870, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 1280 x 800, 3840 x 2160, 1680 x 1050
Display
- LCD Display Technology
- ADS
- Pixel Pitch
- 0.4296 mm
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- Direct LED
- Coating
- 2% haze
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 500000:1
- Brightness
- 400 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Pull-Down Compensation
- 3:2, 2:2
- Response Time
- 8 ms
- Display Menu Language
- Chinese (traditional), Chinese (simplified), English, German, French, Italian, Polish, Russian, Spanish, Turkish, Arabic, Japanese
- Backlight Life
- 50,000 hour(s)
- Commercial Features
- HTML5 support, FailOver
- Operation Hours / Days
- 18 / 7
