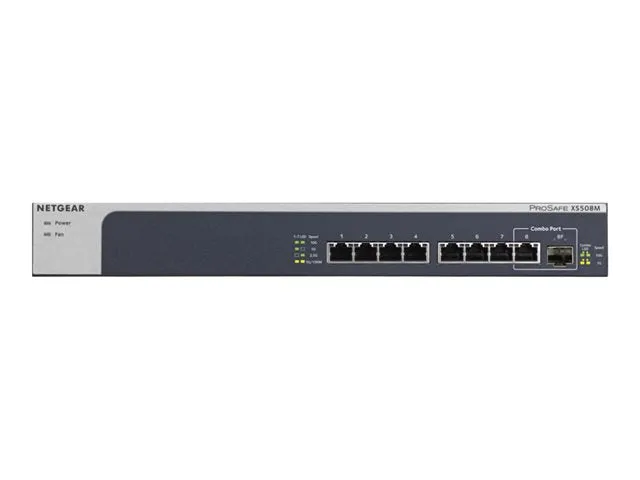

TieDex UK NETGEAR XS508M – switch – 8 ports – unmanaged – rack-mountable
NETGEAR XS508M – Switch – unmanaged – 7 x 10 Gigabit Ethernet + 1 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ – desktop, rack-mountable
Basic Specifications
- Manufacturer’s Part Number
- XS508M-100EUS
- EAN
- 0606449131116
- Manufacturer Warranty
- NETGEAR lifetime warranty
- Weight
- 1.49 kg
- Product Description
- NETGEAR XS508M – switch – 8 ports – unmanaged – rack-mountable
- Model
- NETGEAR XS508M
- Dimensions (WxDxH)
- 32.8 cm x 16.9 cm x 4.32 cm
- Localisation
- United Kingdom, Europe
- Features
- DiffServ support, store and forward, QoS, 128KB packet buffer, CoS, metal housing, 1 fan, EEE, WRR
- Power
- AC 120/230 V (50 – 60 Hz)
- Device Type
- Switch – 8 ports – unmanaged
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz
- Capacity
- Priority queues: 8
- MAC Address Table Size
- 2K entries
- Subtype
- 10 Gigabit Ethernet
- Performance
- Bandwidth: 160 Gbps
- Enclosure Type
- Rack-mountable
- Jumbo Frame Support
- 9KB
- Ports
- 7 x 10 Gigabit Ethernet + 1 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+
General
- Device Type
- Switch – 8 ports – unmanaged
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 7 x 10 Gigabit Ethernet + 1 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+
- Performance
- Bandwidth: 160 Gbps
- Capacity
- Priority queues: 8
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 9KB
- Features
- DiffServ support, store and forward, QoS, 128KB packet buffer, CoS, metal housing, 1 fan, EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz
- Status Indicators
- Power, fan, link/activity/speed
Dimensions & Weight
- Width
- 32.8 cm
- Depth
- 16.9 cm
- Height
- 4.32 cm
- Weight
- 1.49 kg
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 1145157 hours
- Compliant Standards
- Plug and Play, VCCI, BSMI, ICES-003, EN55024, AS/NZS 60950-1, UL 60950-1, KCC, KC, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, CNS 14336-1, VCCI V-4/2012.04, VCCI V-3/2015.04 Class B, ANSI C63.4-2014, CISPR 32, EN 55032, EN 55032:2012+AC:2013 Class B, ICES-003:2016 issue 6 Class B, EN 61000-3-2:2014 Class B, EN 6100-3-3:2013, sDoC, CB 60950-1, LVD 60950-1
- Localisation
- United Kingdom, Europe
Manufacturer Warranty
- Service & Support
- Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – lifetime
Expansion / Connectivity
- Interfaces
- 7 x 10GBase-T RJ-45 ¦ 1 x 10Gbit LAN RJ-45/SFP+
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 – 60 Hz)
- Power Consumption Operational
- 39 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
