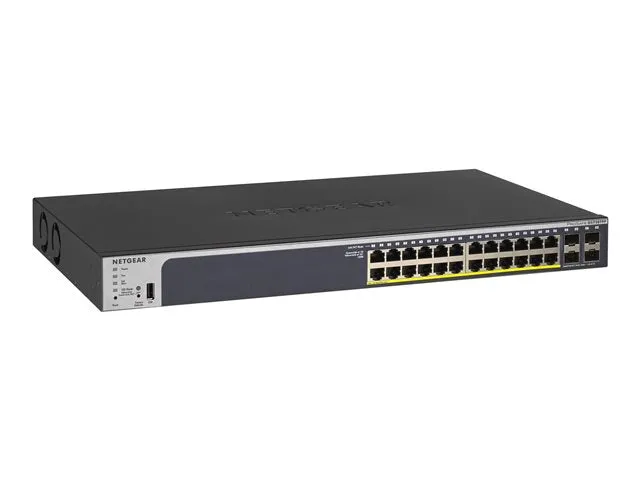

TieDex UK NETGEAR Pro GS728TPPv2 – v2 – switch – 24 ports – smart – rack-mountable
NETGEAR Pro GS728TPPv2 – V2 – switch – L3 – smart – 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP – rack-mountable – PoE+ (380 W)
Basic Specifications
- Manufacturer’s Part Number
- GS728TPP-200EUS
- EAN
- 0606449131673
- Manufacturer Warranty
- Limited lifetime warranty
- Weight
- 4.11 kg
- Product Description
- NETGEAR Pro GS728TPPv2 – v2 – switch – 24 ports – smart – rack-mountable
- Model
- NETGEAR Pro GS728TPPv2
- Dimensions (WxDxH)
- 44 cm x 25.7 cm x 4.32 cm
- Localisation
- Europe
- Features
- DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, QoS, MLD snooping, DAI, DHCP relay, LACP, DHCP client, MVR, GARP, GVRP, ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, DoS protection, WRR, Auto VoIP, MAC lockdown
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch – 24 ports – L3 – smart
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Capacity
- ACL: 100 ¦ ARP entries: 512 ¦ VLANs supported: 256 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP multicast groups: 512
- MAC Address Table Size
- 16K entries
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.67 Mpps
- Enclosure Type
- Rack-mountable
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Jumbo Frame Support
- 10KB
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- PoE Budget
- 380 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 24 ports – L3 – smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 380 W
- Performance
- Bandwidth: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.67 Mpps
- Capacity
- ACL: 100 ¦ ARP entries: 512 ¦ VLANs supported: 256 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP multicast groups: 512
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Encryption Algorithm
- TLS
- Authentication Method
- RADIUS, TACACS+
- Features
- DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, QoS, MLD snooping, DAI, DHCP relay, LACP, DHCP client, MVR, GARP, GVRP, ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, DoS protection, WRR, Auto VoIP, MAC lockdown
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1: 700 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
- Status Indicators
- Port transmission speed, PoE, link/activity
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25.7 cm
- Height
- 4.32 cm
- Weight
- 4.11 kg
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 1,071,896 hours
- Compliant Standards
- EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- Europe
Manufacturer Warranty
- Service & Support
- Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – phone consulting – 90 days
Expansion / Connectivity
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x USB
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 120/230 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
