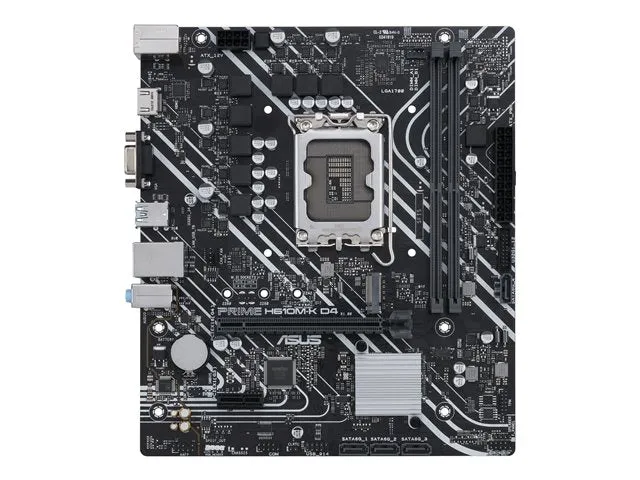

ASUS PRIME H610M-K D4 – Motherboard – micro ATX – LGA1700 Socket – H610 Chipset – USB 3.2 Gen 2, USB 3.2 Gen 1 – Gigabit LAN – onboard graphics (CPU required) – HD Audio (8-channel)
Basic Specifications
- Manufacturer’s Part Number
- 90MB1A10-M0EAY0
- EAN
- 4711081565499
- Manufacturer Warranty
- 3-year warranty
- Product Description
- ASUS PRIME H610M-K D4 – motherboard – micro ATX – LGA1700 Socket – H610
- Model
- ASUS PRIME H610M-K D4
- Product Type
- Motherboard – micro ATX
- Form Factor
- Micro ATX
- Audio
- HD Audio (8-channel)
- RAM Supported
- 2 DIMM slots – DDR4, non-ECC, unbuffered
- Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
- Max RAM Size
- 64 GB
- Processor Socket
- LGA1700
- USB / FireWire Ports
- 2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
- Chipset Type
- Intel H610
- Storage Ports
- 4 x SATA-600, 1 x M.2
- LAN
- Gigabit Ethernet
Features
- BIOS Features
- UEFI BIOS, ASUS EZ Flash 3
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, CrashFree BIOS 3, ASUS EZ DIY, Preboot eXecution Environment (PXE)
General
- Product Type
- Motherboard – micro ATX
- Chipset Type
- Intel H610
- Processor Socket
- LGA1700 Socket
- Max Processors Qty
- 1
- Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Audio
- Type
- HD Audio (8-channel)
- Compliant Standards
- High Definition Audio
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1
- Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
- Interfaces
- 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in – mini-jack ¦ 1 x audio line-out – mini-jack ¦ 1 x microphone – mini-jack
- Internal Interfaces
- 2 x USB 2.0 – header ¦ 2 x USB 3.2 Gen 1 – header ¦ 1 x SPDIF out – header ¦ 1 x audio – header ¦ 1 x serial – header ¦ 1 x speaker – header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Miscellaneous
- Included Accessories
- I/O back plate, 1 x M.2 screw
- Cables Included
- 2 x Serial ATA cable
- Software Included
- ASUS CPU-Z, ASUS AI Suite III, Norton AntiVirus (Trial), WinRAR, Drivers & Utilities
- Width
- 23.4 cm
- Depth
- 20.3 cm
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years
LAN
- Network Interfaces
- Gigabit Ethernet
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR4
- Bus Clock
- 2133 MHz, 2400 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
