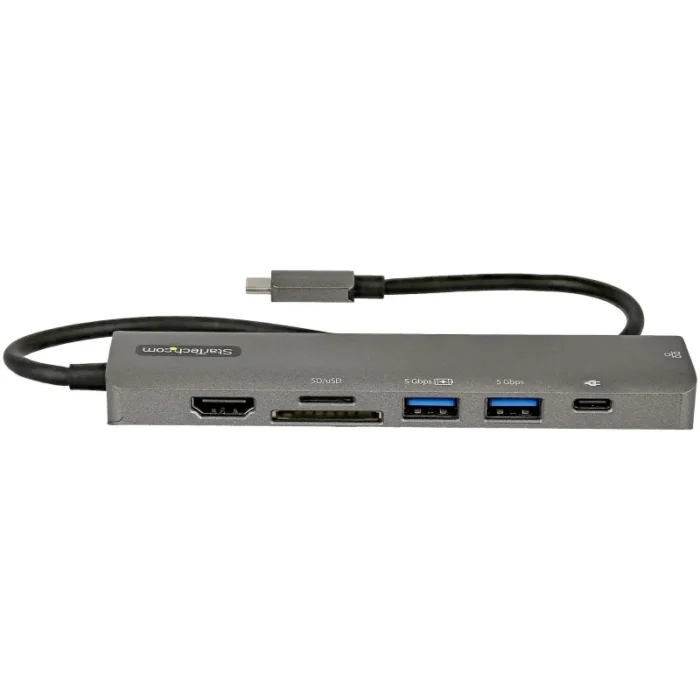

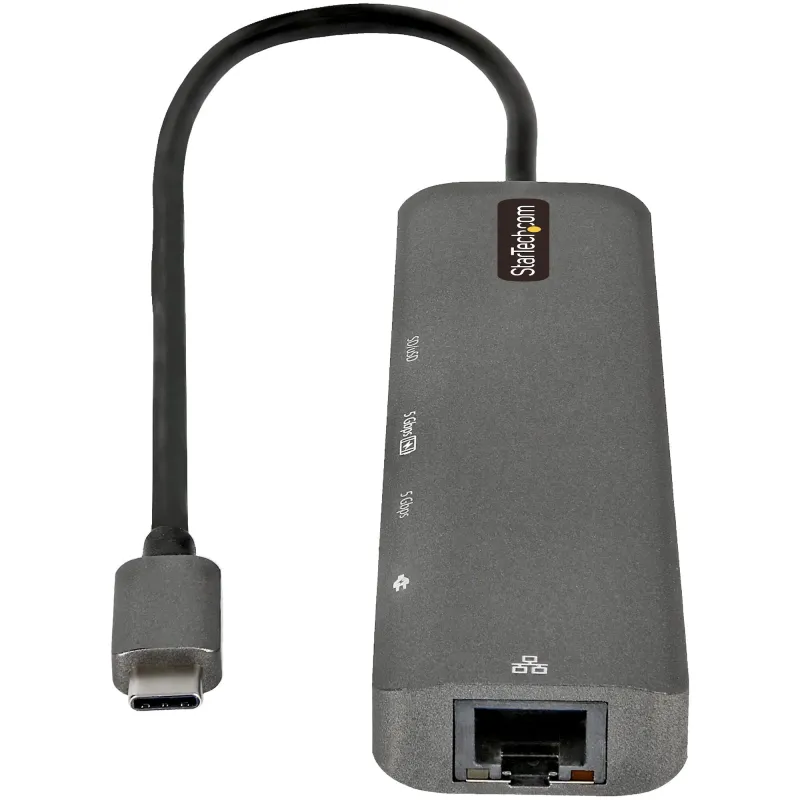

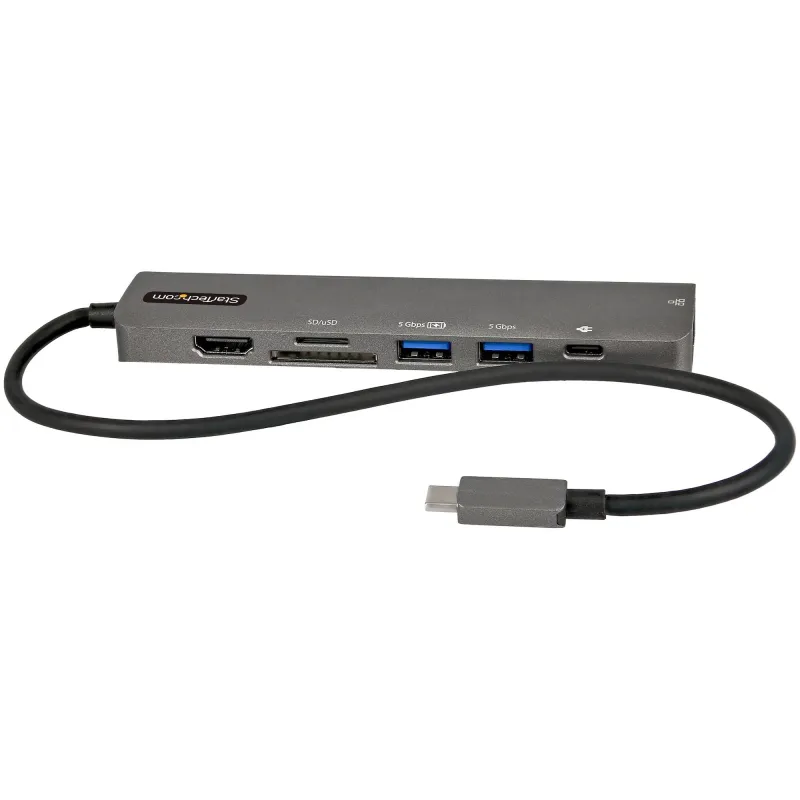

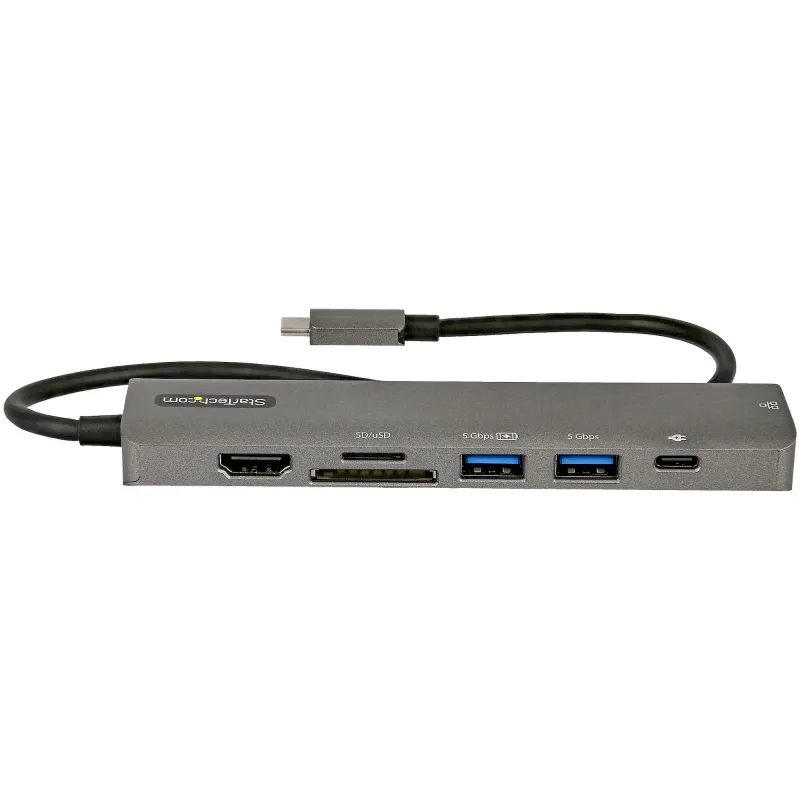

StarTech.com USB C Multiport Adapter – USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-through, SD/MicroSD, 2-Port USB 3.0 Hub, GbE – USB Type-C Mini Dock – 12″ Long Attached Cable
- 7-IN-1 MULTIPORT ADAPTER: USB-C multiport adapter w/ 4K 60Hz HDMI 2.0b (HDR10) video, 2-Port USB-A Hub 5Gbps (BC 1.2 charge port), 100W PD, SD + MicroSD Card Reader, Gigabit Ethernet; works w/ ultra-wide monitors up to 3440×1440@60Hz
- EXTRA LONG CABLE: USB C mini dock with 12″ (30cm) attached cable for extended reach to reduce port / connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, iPhone 15 (Plus/Pro/Max) and up, HP Elite x2 & laptops on riser stands
- 4K 60HZ WITH DP 1.4 ALT-MODE: Supports 4K 60Hz on host devices that support DP 1.4 Alt-Mode (minimum Intel 11th Gen); on host devices that support DP 1.2 Alt-Mode, maximum video output resolution is 4K 30Hz
- WIDE COMPATIBILITY: Fully compatible with USB-C laptops, ultrabooks & Chromebooks, plus Thunderbolt 3 laptops from HP, Dell, Lenovo, MacBooks (Intel processor & M1/M2 chip), and Surface; works w/ Windows, macOS, iPadOS, iOS, Android and Chrome OS
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
USB Type-C Multiport Adapter | 4K 60Hz | HDMI 2.0 | 100W Power Delivery Passthrough | SD & microSD
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.2 Gen 1 Type-A (5Gbps) ports and a Gigabit Ethernet port, all through one connection to your laptop’s USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
Enhance Productivity
The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports to connect your legacy USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The DKT30CHSDPD1 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Microphone in | No |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Maximum refresh rate | 60 Hz |
| HD type | 4K Ultra HD |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MMC, MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Power consumption (max) | 12 W |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android, iPadOS |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -10 – 55 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 99 g |
| Height | 14 mm |
| Depth | 34 mm |
| Width | 352 mm |
| Packaging data | |
|---|---|
| Package weight | 180 g |
| Package height | 20 mm |
| Package depth | 180 mm |
| Package width | 100 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 230 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | VIA Labs – VL102, VIA Labs – VL817, Parade – PS186, Realek – RTL8153, Genysis Logic – GL3224 |
