StarTech.com Thunderbolt 3 Dock – Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA – 85W Power Delivery & Charging – 2x USB-A, Ethernet – Mac & Windows
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40Gbps); Up to dual 4K 60Hz video; 2x DisplayPort, 1x HDMI, 1x VGA; 2-Port USB-A Hub (USB 3.2 Gen 1 5Gbps); Gigabit Ethernet; 85W Power Delivery
- FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for up to dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz) or VGA (1080p 60Hz); Video output utilizes direct GPU performance with no software or compression
- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters; Included 1.6 ft (0.5 m) Thunderbolt 3 host cable; Front facing Thunderbolt 3 host port for hassle-free installation
- OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring & Windows Layout
Laptop Dock | Mac & Windows® | HDMI | DisplayPort | VGA | 85W PD
Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Speed & Flexibility with 3 Monitor Options
Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.
The dock offers many dedicated dual-video options:
2x DisplayPort (4096 x 2160p @ 60Hz)
1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

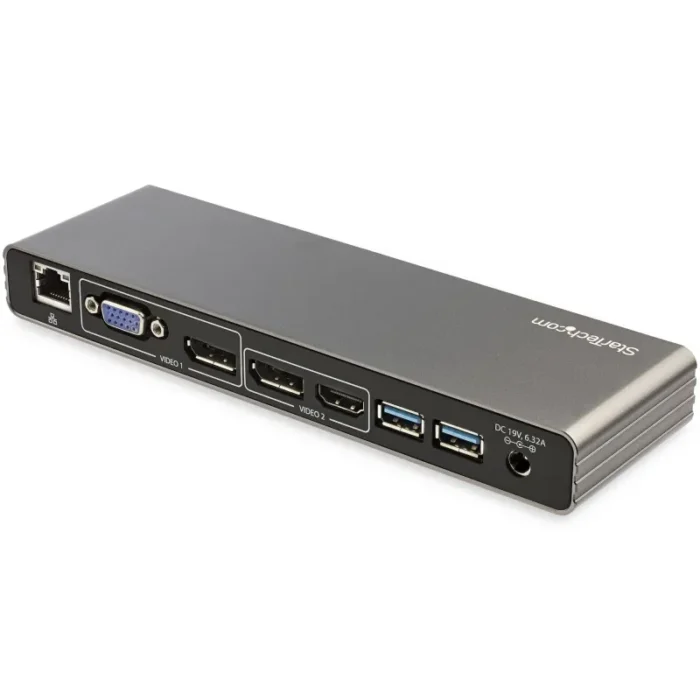

The Ports You Need Most
Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.
Power & Charge with 85W Power Delivery
Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it’s docked. It provides up to 85W of charging power through Power Delivery.
The TB3DK2DHVUE is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Microphone in | No |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 85 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | Thunderbolt 3 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | CE, FCC, REACH |
| UASP support | Yes |
| Housing material | Aluminium |
| Maximum digital resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Card reader integrated | No |
| Product colour | Grey |
| Power | |
|---|---|
| Compatible power plug types | EU, UK |
| Power plug type | Type N |
| Power consumption (typical) | 120 W |
| Output voltage | 19 V |
| Output current | 6.32 A |
| Input current | 1.8 A |
| AC input voltage | 100 – 240 V |
| Power source type | AC |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 340 g |
| Height | 24 mm |
| Depth | 196 mm |
| Width | 58.6 mm |
| Packaging data | |
|---|---|
| Package weight | 1.3 kg |
| Package height | 65 mm |
| Package depth | 254 mm |
| Package width | 187 mm |
| Packaging content | |
|---|---|
| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 676 mm |
| Master (outer) case height | 280 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | Intel – Alpine Ridge JHL6540, Intel – WGI210AT, ASMedia – ASM1042A, Parade – PS176, Chrontel – CH7517 |
| Cable length | 0.5 m |
