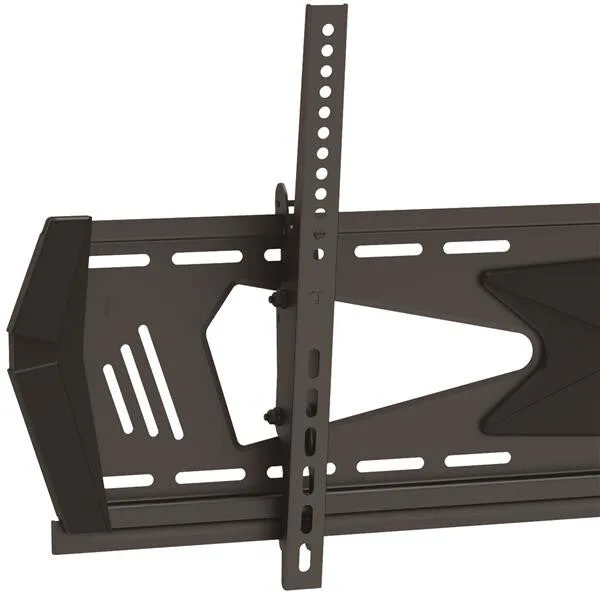

StarTech.com Low-Profile TV Wall Mount – Tilting
- Save space with this flat-screen TV wall mount for 37″ to 75″ TVs (fits curved TVs, with compatible VESA mount)
- Low profile TV mount sits only 2″ (51 mm) from the wall; Tilts -10 to +5 degrees for optimal viewing
- Lockable bar securely holds TV and provides theft deterrence (padlock required)
- Heavy-duty steel TV wall mount (tool-less assembly) supports up to 88 lb. (40 kg)
- Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 300×200, 300×300, 400×200, 400×300, 400×400, 600×200, 600×300, 600×400, 800×400
Display Wall Mount | Anti-Theft | For 37″ to 75″ Displays
Save space while improving the appearance of your work area, with this low-profile TV wall mount. The mount sits close to the wall to support a VESA Mount compliant TV from 37” to 75”, and offers theft deterrence as well as titling capability that makes it easy to find the perfect viewing position.
Low-Profile Design for Meeting Areas or Digital Signage
Mount your flat-screen TV or monitor in a location that’s convenient for visitors, clients or employees. The wall mount safely and securely supports your TV about two inches (51 mm) from the wall to provide a sleek, low-profile look.
It’s ideal for lobbies, hallways, boardrooms, works areas, customer-facing areas or for creating digital signage. The wall mount supports most 37″ to 75″ (940 to 1905 mm) LED or LCD flat panel TVs weighing up to 88 lb. (40 kg).
Adjust Your Viewing Angle
This TV wall mount tilts -10 to +5 degrees, so you can adjust the angle of your display with ease to customize your viewing experience.
Anti-theft Protection
Engineered with heavy-duty steel, the robust steel TV wall mount securely supports your flat-screen TV, to protect your investment. Ideal for areas with high traffic and minimal supervision, the TV mount features a steel bar that can be locked into place with a padlock (purchased separately) to deter theft of your equipment.
Easy Setup
A built-in level helps to ensure your TV is aligned in a straight position on your wall, to ensure optimum viewing.
The FPWTLTBAT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Save space with this flat-screen TV wall mount for 37″ to 75″ TVs (fits curved TVs, with compatible VESA mount)
– Low profile TV mount sits only 2″ (51 mm) from the wall; Tilts -10 to +5 degrees for optimal viewing
– Lockable bar securely holds TV and provides theft deterrence (padlock required)
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 300,600 x 400,800 x 400 |
| Maximum VESA mount | 800 x 400 mm |
| Minimum VESA mount | 300 x 200 mm |
| Mounting type | Wall |
| Maximum screen size | 190.5 cm (75″) |
| Minimum screen size | 94 cm (37″) |
| Maximum weight capacity | 40 kg |
| Ergonomics | |
|---|---|
| Built-in spirit level | Yes |
| Cable management | No |
| Tilt angle range | -5 – 10° |
| Design | |
|---|---|
| Certification | CE, REACH |
| Anti-theft function | Yes |
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 30 |
| Screws included | Yes |
| Number of spacers included | 16 |
| Spacer included | Yes |
| Number of washers included | 10 |
| Washers included | Yes |
| Number of anchors included | 6 |
| Anchors included | Yes |
| Number of decorative covers included | 2 pc(s) |
| Decorative cover included | Yes |
| Number of adapter brackets included | 2 |
| Adapter bracket included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 440 mm |
| Depth (max) | 99.8 cm |
| Width | 51 mm |
| Packaging data | |
|---|---|
| Package weight | 4.8 kg |
| Package height | 65 mm |
| Package depth | 987 mm |
| Package width | 236 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 1007 mm |
| Master (outer) case width | 256 mm |
