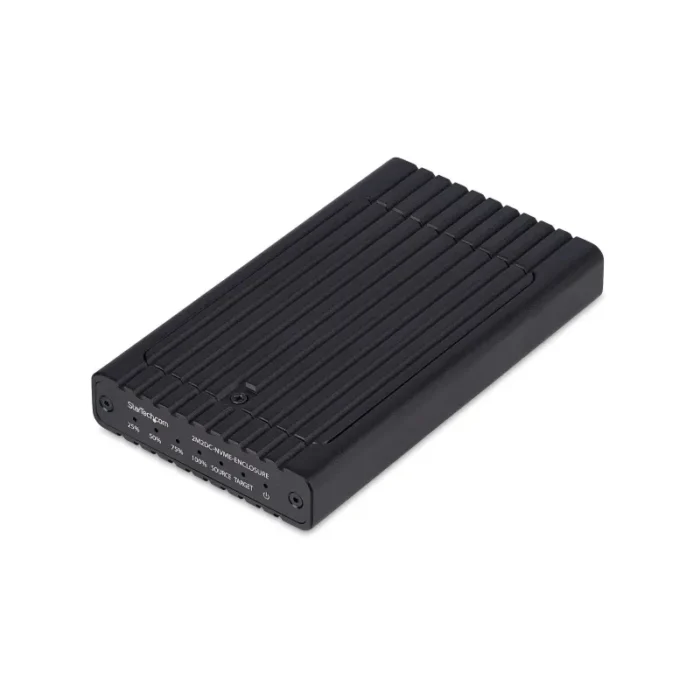

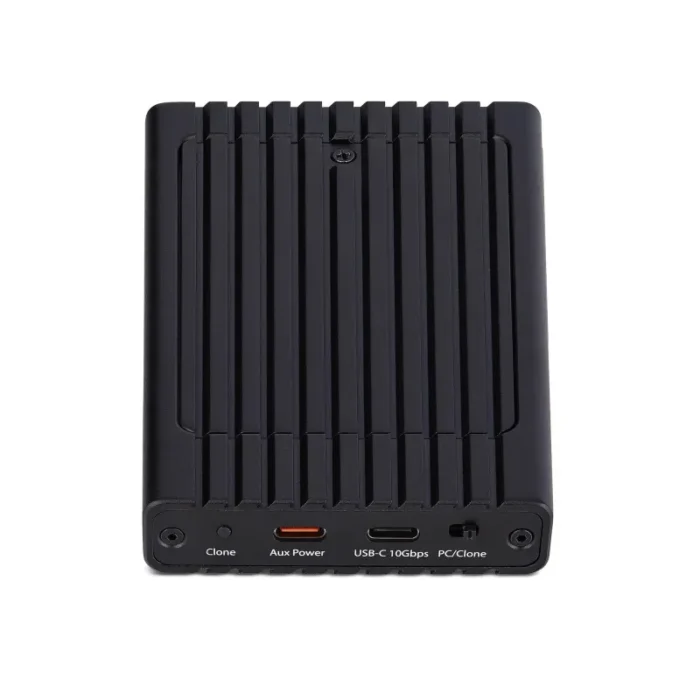

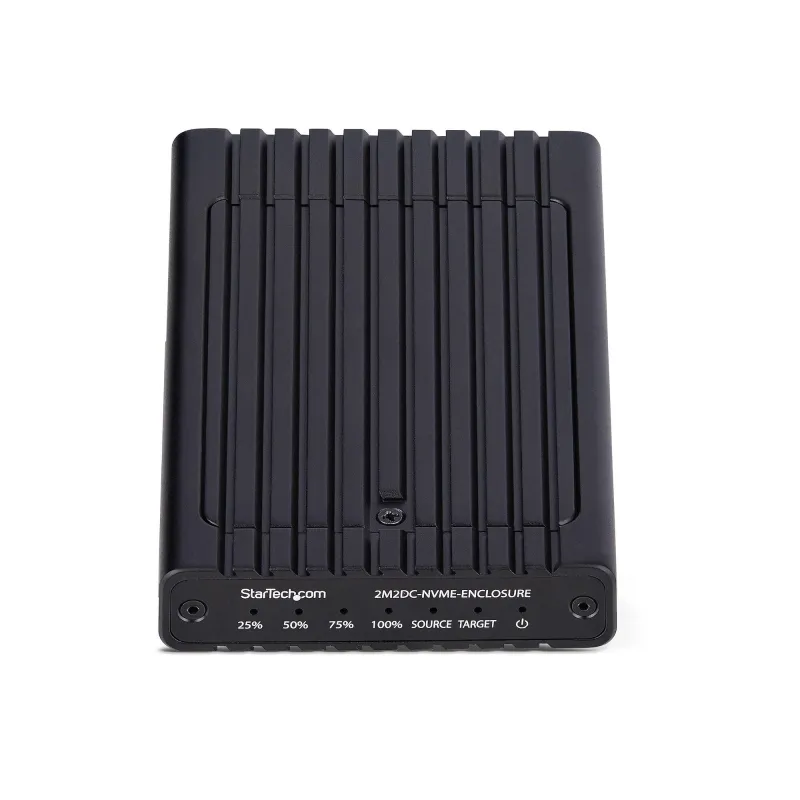

StarTech.com Dual-Bay M.2 NVMe Enclosure and Standalone Duplicator, 1:1 NVMe Cloner and SSD Enclosure, USB-C 10Gbps, Dual M.2 NVMe Reader and Offline Cloner, TAA
- STANDALONE M.2 CLONER ENCLOSURE: Perform standalone duplication of M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector copy rates of up to 50Gbpm; Works with any file format and copies the entire drive
- DUAL M.2 DRIVE ACCESS: Bus-powered USB-C 10Gbps host connection enables quick external access to two M.2 NVMe drives, facilitating data transfer without installing the drives internally; Auxiliary USB-C power connection for standalone drive cloning
- COMPACT & PORTABLE: Compact aluminum housing takes up minimal desk space and offers a portable solution for travel; Individual LEDs indicate Power, Drive Detection, and Duplication Progress; Thermal pads enable heat dissipation for peak performance
- COMPATIBILITY: Driverless operation ensures compatibility with any Operating System; Supports M-Key 2230/2242/2260/2280 M.2 NVMe SSDs, 4Kn sectors, TRIM, SMART, and UASP; For cloning, the target disk must be equal to or larger than the source disk
- APPLICATIONS: Compact Standalone Cloner Enclosure is ideal for traveling IT Pros; Perform instant data backup, IT disk re-imaging, disk support, or access data from your M.2 NVMe drives using any USB-C host
Perform standalone M.2 NVMe drive cloning, or enable read and write access from a USB-C host
This Dual Bay M.2 NVMe enclosure with a USB-C 10Gbps host port offers instant drive access and standalone duplication, providing efficient and fast cloning of storage devices.
Standalone M.2 Cloner Enclosure
Clone M.2 NVMe solid-state drives (SSDs) without a computer. This device requires no drivers or software and delivers high-performance sector-by-sector copy rates of up to 50Gbpm, working with any file format and copying the entire drive.
External Drive Access over USB-C
The USB-C 10Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without requiring internal drive installation.
Compact Form Factor
With a compact aluminum housing, the M.2 NVMe Enclosure is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals performing on-site troubleshooting, with the ability to re-image and re-deploy M.2 NVMe drives without the need for a dedicated disk cloner.
The enclosure features built-in thermal heat pads, to maintain consistent temperatures during peak performance. The Standalone Duplicator Enclosure supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Storage | |
---|---|
NVMe | Yes |
Supported storage drive lengths | 30,42,60,80 mm |
Supported storage drive heights | 22 mm |
Number of storage drives supported | 2 |
Supported storage drive interfaces | M.2 |
Storage drive size | M.2 |
Ports & interfaces | |
---|---|
Integrated USB cable | No |
USB ports quantity | 2 |
USB connector gender | Female |
USB connector type | USB Type-C |
USB version | USB4 Gen 2×2 |
USB connectivity | Yes |
Design | |
---|---|
Number of fans | 0 fan(s) |
LED indicators | Yes |
Product colour | Black |
Product type | SSD enclosure |
Performance | |
---|---|
TRIM support | Yes |
S.M.A.R.T. support | Yes |
UASP support | Yes |
Chipset | JMS581 |
Data transfer rate | 10 Gbit/s |
Power | |
---|---|
Power source type | USB |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 10 – 85% |
Storage temperature (T-T) | -10 – 70 °C |
Operating temperature (T-T) | 0 – 45 °C |
Weight & dimensions | |
---|---|
Package weight | 327.7 g |
Package height | 46 mm |
Package depth | 92 mm |
Package width | 144 mm |
Weight | 207 g |
Height | 17 mm |
Depth | 115 mm |
Width | 70 mm |
Packaging content | |
---|---|
Manual | Yes |
Cables included | USB Type-C |
Technical details | |
---|---|
Compliance certificates | RoHS |
Logistics data | |
---|---|
Products per master (outer) case | 40 pc(s) |
Master (outer) case height | 210 mm |
Master (outer) case length | 300 mm |
Master (outer) case width | 485 mm |
