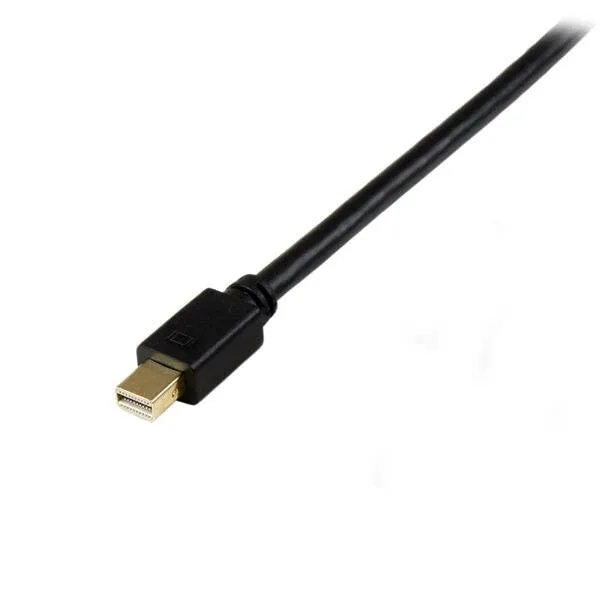

StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable – Active Mini DP to DVI Adapter Cable – 1080p Video – mDP 1.2 to DVI-D Single Link – mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor
- MINI DISPLAYPORT TO DVI CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display / 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable / Supports DVI screw locking cable to prevent accidental disconnection / Mini DP male to DVI male
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Connect a Mini DisplayPort-equipped PC or MAC to a DVI display, with an active 6ft cable
The MDP2DVIMM6BS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a DVI monitor or projector, saving the expense of additional adapters.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active |
| Plug and Play | Yes |
| Chipset | Parade – PS171 |
| Product colour | Black |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Dual Link DVI | No |
| DisplayPort version | 1.2 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | Mini DisplayPort |
| Cable length | 1.9 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 40 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
|---|---|
| Height | 16 mm |
| Depth | 1900 mm |
| Width | 40 mm |
| Weight | 100.7 g |
| Packaging data | |
|---|---|
| Package weight | 123 g |
| Package height | 20 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case height | 435 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 420 mm |
| Harmonized System (HS) code | 84733080 |
