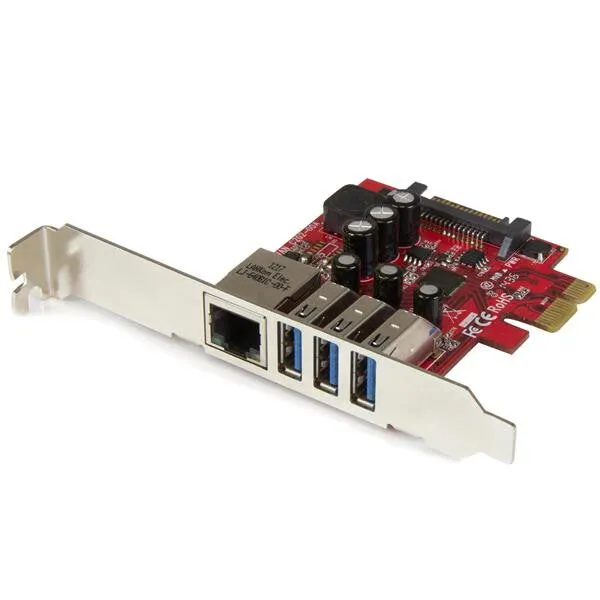

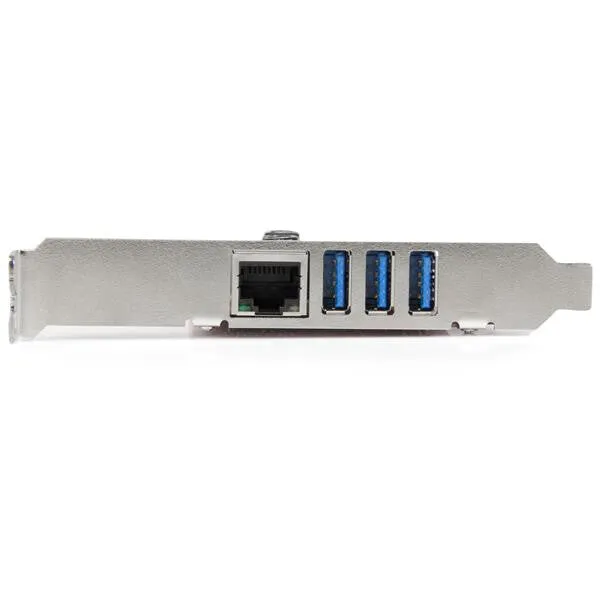

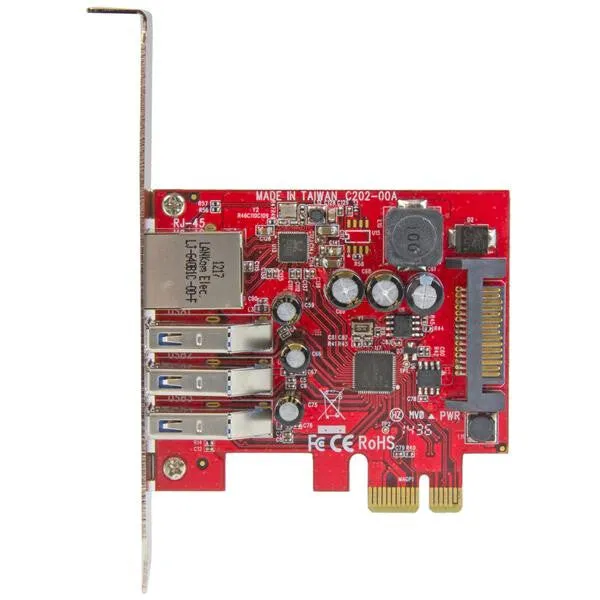

StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet
- Wired
- PCI Express 2.0 3.2 Gen 1 (3.1 Gen 1) Ethernet
- 5000 Mbit/s 10/100/1000BaseT(X)
- Internal Chipset: Renesas / NEC – µPD720201, Realtek – RTL8153
This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.
By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.
Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.
This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.
The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.
Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.
Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.
The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 2.0 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| VLAN tagging | Yes |
| Auto-negotiation | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 5000 Mbit/s |
| Design | |
|---|---|
| Certification | CE, FCC |
| Mean time between failures (MTBF) | 1920042 h |
| LED indicators | Activity, Link |
| Chipset | Renesas / NEC – µPD720201, Realtek – RTL8153 |
| Product colour | Metallic, Red |
| Internal | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 5 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 60 g |
| Height | 120 mm |
| Depth | 77 mm |
| Width | 18 mm |
| Packaging data | |
|---|---|
| Package weight | 150 g |
| Package height | 33 mm |
| Package depth | 176 mm |
| Package width | 144 mm |
| Drivers included | Yes |
| Quantity | 1 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| UASP support | Yes |
| USB data transfer rates | 5000 Mbit/s |
| Flow control support | Yes |
