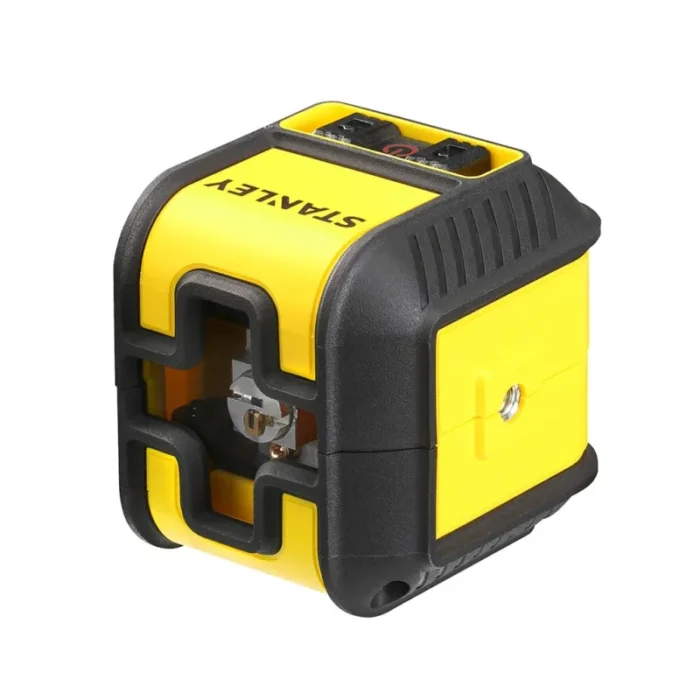

Stanley Cubix Cross Line Red Beam Laser
- 12m Working range
- Accuracy +/ – 4.5mm @ 10m
- Projects 1 horizontal and 1 vertical line to create a cross line
- Can be flipped on its back for ceiling applications
- Self-leveling to +/ – 4°
- Rated to IP50 to protect against dust
- Pendulum lock for safe transportation

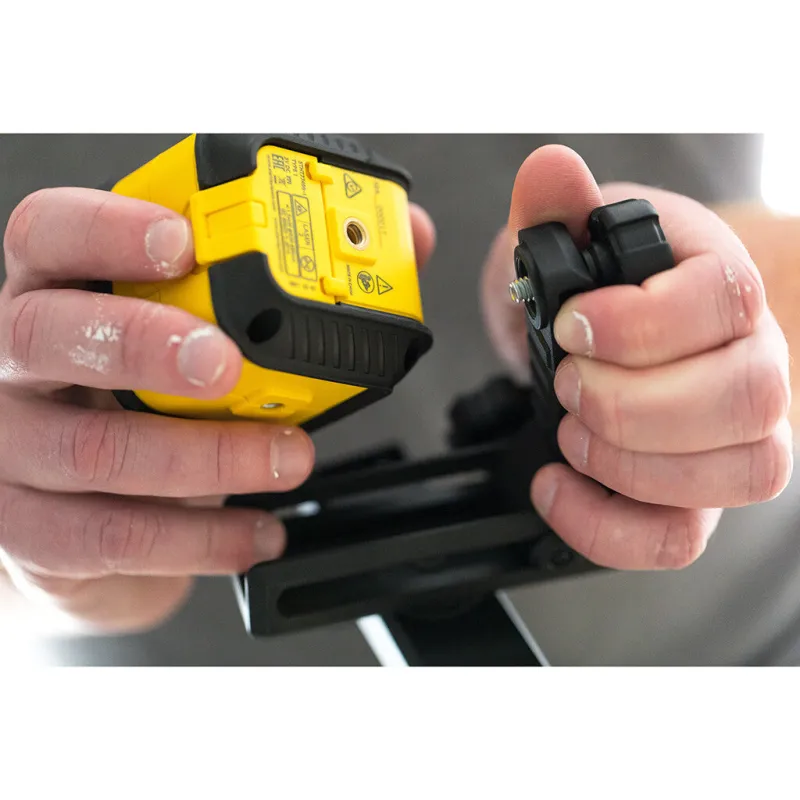

- 1/4” thread allows the unit to be mounted to a tripod
- Suitable for internal use
- Runs on 2 x AA batteries (supplied)
| Features | |
|---|---|
| Colour of laser beam | Red |
| Beam direction | Horizontal/Vertical |
| Number of laser lines | 2 |
| Self-levelling range (±) | 4° |
| Self-levelling | Yes |
| Levelling accuracy (±) | 0.45 mm/m |
| Maximum range | 12 m |
| Design | |
|---|---|
| International Protection (IP) code | IP50 |
| Tripod thread | 1/4″ |
| Tripod mounting supported | Yes |
| Product colour | Black, Yellow |
| Type | Line level |
| Battery | |
|---|---|
| Number of batteries supported | 2 |
| Battery type | AA |
| Power source | Battery |
| Weight & dimensions | |
|---|---|
| Weight | 578 g |
| Height | 150 mm |
| Depth | 240 mm |
| Width | 175 mm |
| Packaging content | |
|---|---|

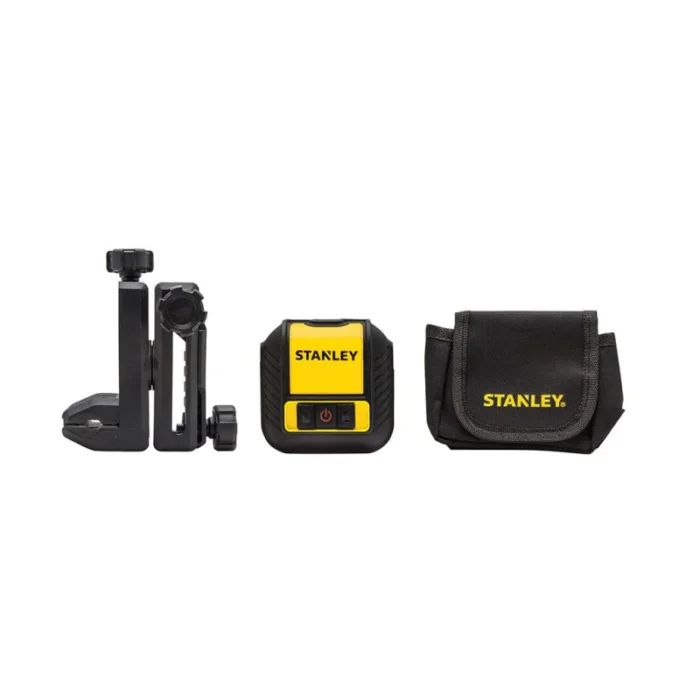

| Pouch | Yes |
- Cubix Cross Line Red Beam Laser
