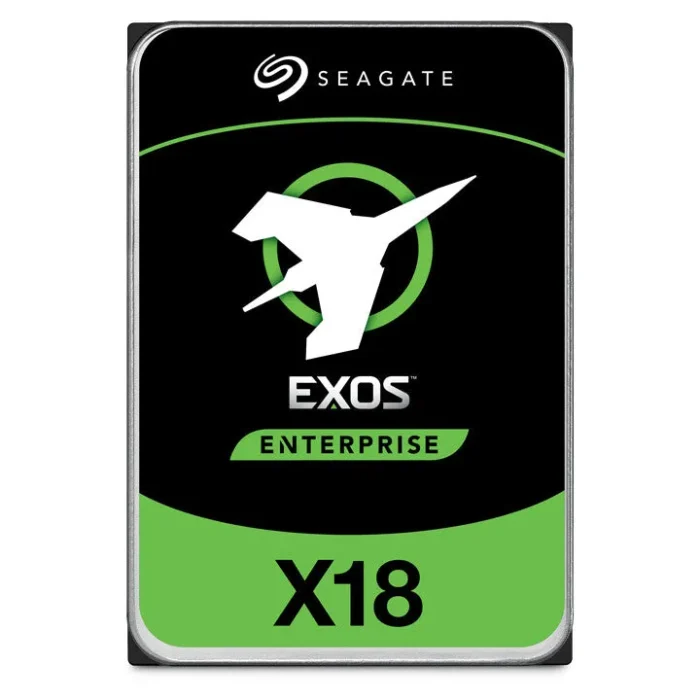

Seagate ST12000NM001J internal hard drive 12 TB 7200 RPM 3.5″
- Highly reliable performance
- Hyperscale SATA model
- Maximise total cost of ownership savings
- Proven helium side-sealing weld technology
- Digital environmental sensors
- Data protection and security
Market-leading 18 TB HDD offering the highest capacity available for more petabytes
per rack
Highly reliable performance with enhanced caching, making it the logical choice for
cloud data centre and massive scale-out data centre applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance™ feature optimises Watts/TB
Maximise total cost of ownership savings through lower power and weight with
helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and
leak protection
Digital environmental sensors to monitor internal drive conditions for optimal
operation and performance
Data protection and security — Seagate Secure™ features for safe, affordable, fast
and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr
MTBF rating
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2500000 h |
| HDD average transfer rate | 270 MB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Hot-swap | Yes |
| Component for | Disk array |
| Type | HDD |
| HDD size | 3.5″ |
| HDD speed | 7200 RPM |
| HDD capacity | 12 TB |
| Power | |
|---|---|
| Operating voltage | 5 / 12 V |
| Power consumption (read) | 8.6 W |
| Power consumption (write) | 8.6 W |
| Power consumption (typical) | 4.4 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 200 G |
| Operating shock | 50 G |
| Non-operating vibration | 2.27 G |
| Operating temperature (T-T) | 5 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 650 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.8 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 20 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
- leaflet
