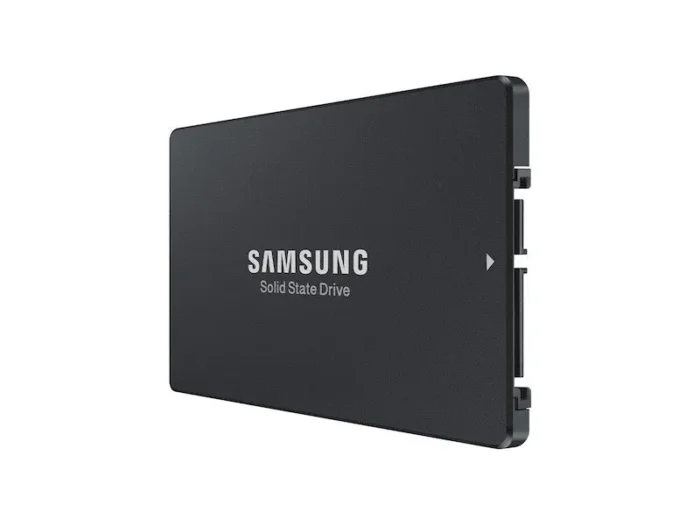

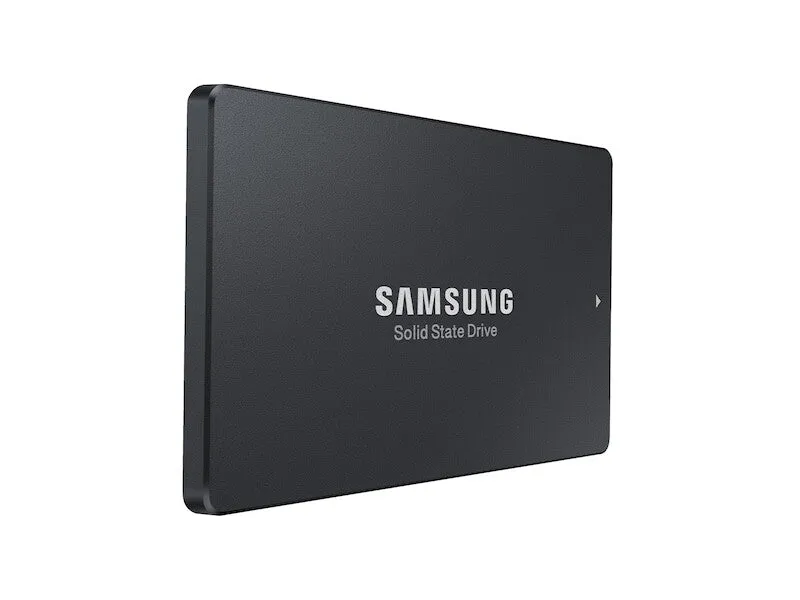

Samsung PM893 7.68 TB 2.5″ Serial ATA III V-NAND TLC
- 7.68 TB 2.5″ Serial ATA III
- Read speed: 550 MB/s 98000 IOPS
- Write speed: 520 MB/s 30000 IOPS
- V-NAND TLC
- Hardware encryption 256-bit AES
- S.M.A.R.T. support TRIM support
- Component for: Server/workstation
Optimized for data center demands
Coming in a 2.5-inch form factor and 6 Gb/s SATA interface with storage capacities up to 7.68TB, the PM893 meets the demands of server storage systems, with added reliability for critical data thanks to end-to-end data protection. 1
Performance fit for mixed workloads
The PM893 is designed to achieve optimal performance with a high level of QoS (quality of service) under the SATA interface. The sequential read/write speeds of up to 550/520 MB/s and random read/write speeds of up to 98K/30K IOPS are ideal for handling massive amounts of data. 2
Secure critical data
Data integrity is critical to data center SSD. The PM893 is safeguarded with end-to-end data protection to ensure consistency over the entire data transfer path and prevents data corruption in case of power failure with power loss protection.
Enhanced operations efficiency
Accomplish far more with less. Achieve higher efficiency and performance compared to legacy storage systems, with fewer servers, reduced power and cooling, and lower TCO 3, all with efficient management from the advanced Samsung SSD Toolkit software.
Samsung reliability and quality
Experience the superior SSD quality and reliability of in-house production using Samsung built components. Empower your 24/7 business to run faster, more efficiently, and at reduced costs with world-class dependability with a limited 5-year warranty or 1.0 DWPD 4,5
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| End-to-End Data Protection | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Controller type | Samsung Metis |
| Random write (4KB) | 30000 IOPS |
| Random read (4KB) | 98000 IOPS |
| Write speed | 520 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | V-NAND TLC |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 7.68 TB |
| Power | |
|---|---|
| Power consumption (max) | 1.5 W |
| Power consumption (write) | 3.2 W |
| Power consumption (read) | 2.1 W |
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Height | 69.8 mm |
| Depth | 6.8 mm |
| Width | 100 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
