RAIJINTEK Styx Micro Tower Black
- Micro Tower PC
- micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 2 Number of 3.5″ bays: 3

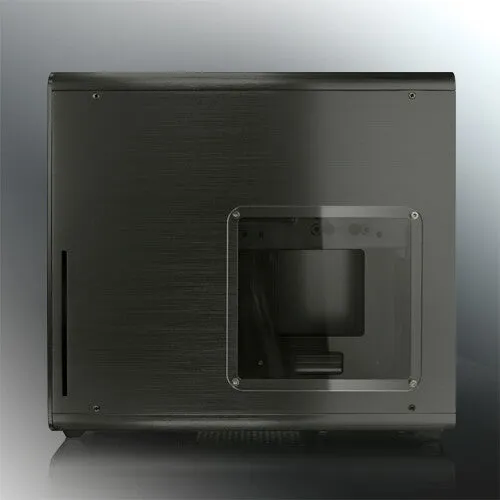

- Side window
- Aluminium, SPCC
- Black

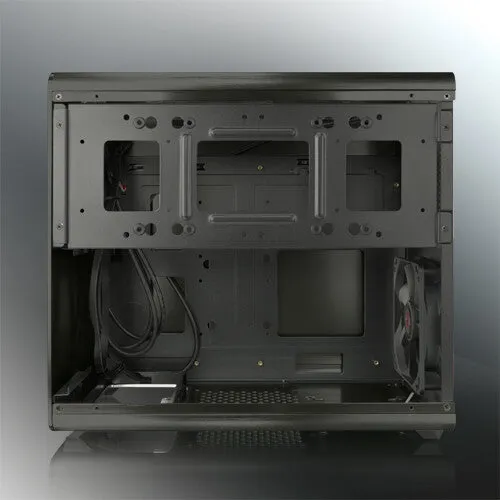

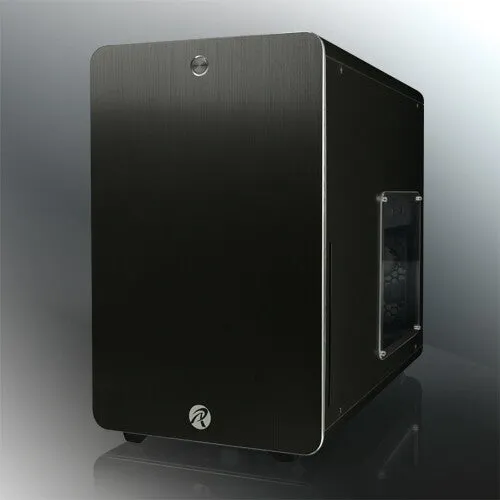

STYX, RAIJINTEK’s new aluminum Micro ATX case, has a remarkable elegant appearance design and high compatibility with your PC system. STYX is compatible with regular/ standard ATX Power supply, max. 280mm VGA card, 180mm height CPU cooler. STYX provides best cooling solution, 120mm fan pre-installed at rear, optional 2*120mm fan on top /side, optional 120mm fan at bottom and max. 240mm radiator cooling on top/side. Moreover, STYX offer a drive bay for Slim DVD on side. Entirely black coated inside, aluminum color hair-silk anodized appearance, STYX satisfies not only your request of looking for elegant taste, but simultaneously satisfies the joy of installing a performing case.
– Aluminum color hair-silk anodized appearance design
– Entire Coating black internally design
– Compatible with ATX POWER SUPPLY
– Compatible with max. 280mm VGA card
– Supports to max. 180mm height CPU cooler
– 2×USB3.0 ports
– Anti-vibration rubber for HDD installation
– Supports to install 3×3.5″HDD +2×2.5″HDD/ 1×3.5″HDD +4×2.5″HDD
– 120 mm performing fan pre-installed at rear
– Optional to install 240mm radiator on the top/side and 120mm fan at bottom
| Design |
| Maximum graphics card length |
28 cm |
| Maximum CPU cooler height |
18 cm |
| Side window |
Yes |
| Number of expansion slots |
5 |
| Number of internal 3.5″ bays |
3 |
| Number of 2.5″ bays |
2 |
| Number of 3.5″ bays |
3 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Product colour |
Black |
| Material |
Aluminium, SPCC |
| Type |
PC |
| Form factor |
Micro Tower |
| Power supply |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
1 |
| Top fans diameters supported |
120,240 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Weight & dimensions |
| Material thickness |
1.5 mm |
| Weight |
3.8 kg |
| Height |
335 mm |
| Depth |
360 mm |
| Width |
210 mm |
| Packaging data |
| Package weight |
5.2 kg |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| User guide |
Yes |
