QuickJack Portable Automatic Car Lift System Jack (1,587kg Capacity) – Model BL-3500SLX
img{max-width:100%}
Installation Manual
Product Specification
Measuring Guide

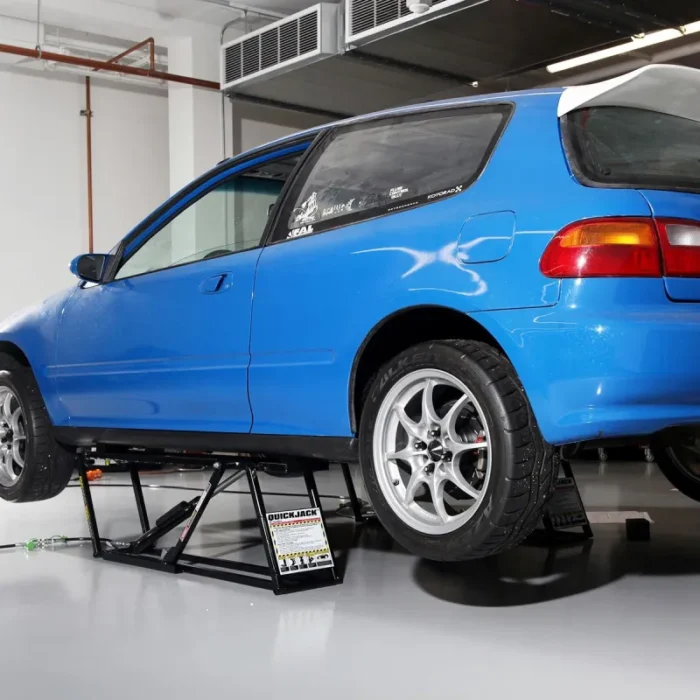

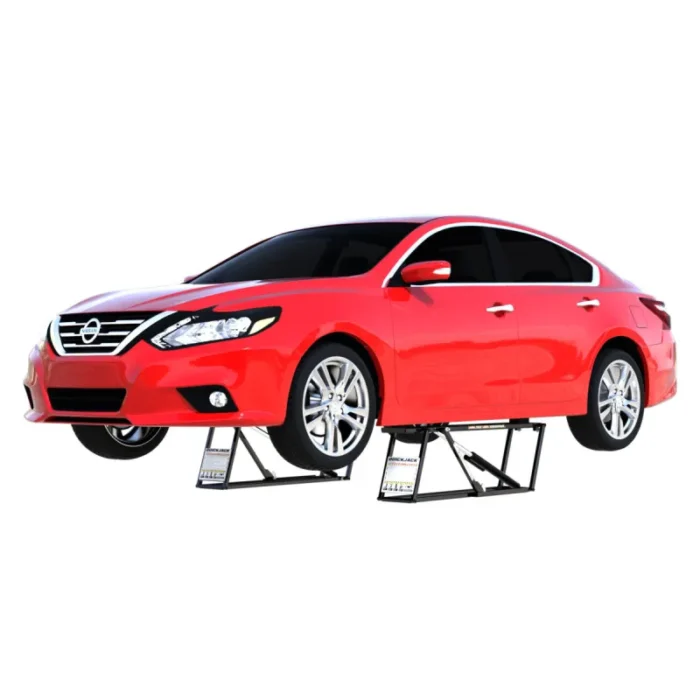

Meet your new best friend in the garage and at the track. The QuickJack is an amazing portable automated car lift and the ultimate garage tool for DIY enthusiasts and home mechanics. It easily rolls out of storage in seconds and can be set up in minutes.

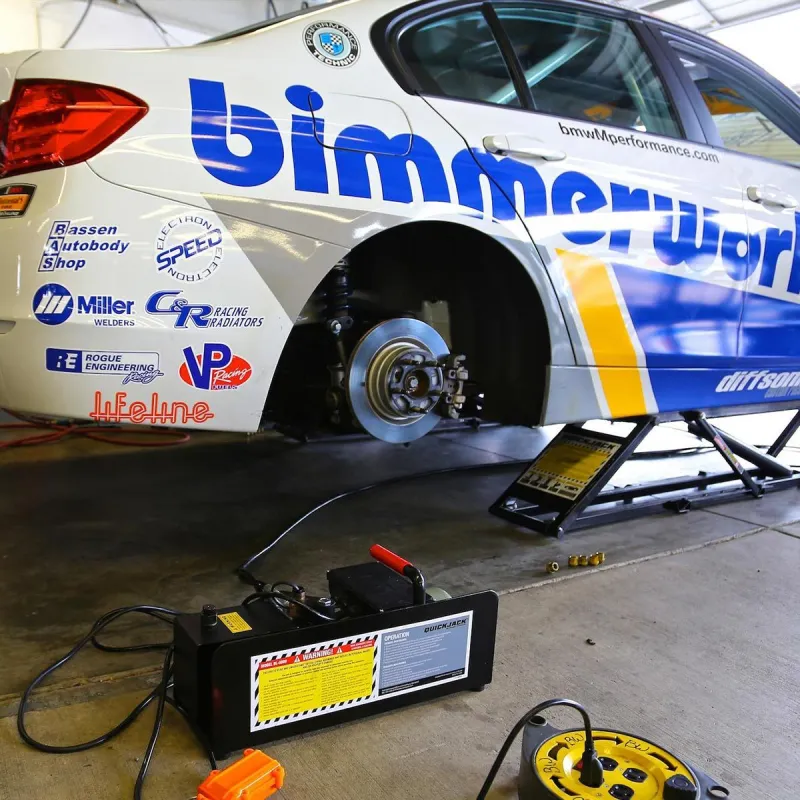

The simple push-button pendant control gets cars in the air in seconds with help from the hydraulic flow divider for a precise, equal lift. The sturdy steel lock bars engage automatically as the lift rises, and the open-centre design provides full under-car access.
Surprisingly light and easily stored, you can use this for car maintenance, detailing and more. It’s suitable for most UK cars up to 1,587kg.
Automatic Safety Locks
Features dual-position, automatic safety locks. As the frames rise, these locks glide securely into place and can be disengaged with a simple flip of the lock bar meaning your car lift is ready for a smooth descent.
Low-Profile Design
The QuickJack is compact, lightweight and easy to store in tight spaces and is able to service vehicles with narrow wheelbases.
One-Handed Operation
By holding the pendant control in one hand, your other hand is totally free.
Features
Specifications
Includes
-
- Mini hydraulic power unit with pendant control
- 4 x Tall rubber lifting blocks
- 4 x Short rubber lifting blocks
- 2 x Quick-mount handles
- 2 x Short aux. hoses (35 cm / 14”)
- 2 x Long quick-connect hydraulic hoses (381 cm / 150″)
- 2 x Jack frames
- Durable powder coat finish
- Low-profile design fits under the lowest cars
- Quick connect / disconnect hoses
- Steel mounted UHMW wheels for effortless rolling
- Strong, 14-gauge welded steel frames
- Automatic safety locks for added safety & security
- Hydraulic flow divider for precise, equal lifting
- Easy and comfortable, one-handed pendant control gets your car in the air in seconds
- Suitable for most types of UK cars (up to 1,587kg / 3,500lbs)
| Noise | < 45dBA |
| Power Unit Voltage | 12VDC |
| Power Unit Dimensions | L45.7 x W15.2 cm |
| Power Unit Weight | 7kg |
| Frame Weight | 27kg (Each) |
| Frame Length | 157.5cm |
| Frame Width | 26.8cm |
| Lifting Point Spread | 8 – 128.3cm |
| Lifting Height | 50.8cm |
| Lowered Height | 6cm |
| Weight Capacity | 1,587kg |
| Dual locking positions | Mid-rise & full-rise |
