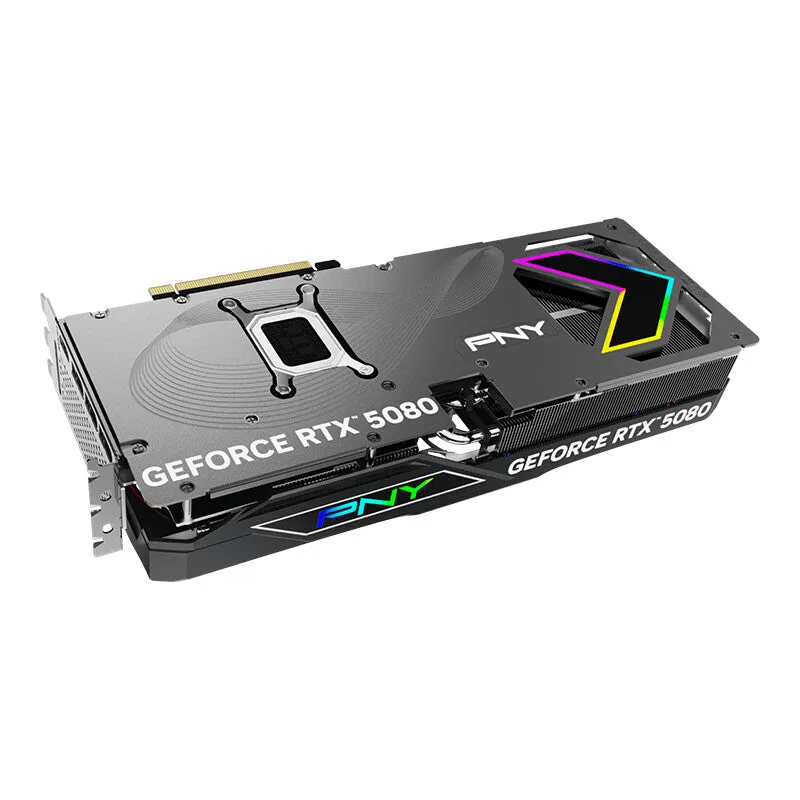

PNY NVIDIA GeForce RTX 5080 16 GB GDDR7 Graphics Card (VCG508016TFXXPB1-O)
- NVIDIA GeForce RTX 5080 16 GB GDDR7
- 7680 x 4320 pixels 256 bit 30 Gbit/s PCI Express x16 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 3
- DirectX version: 12 Ultimate OpenGL version: 4.6
- 1x 16-pin, 3x 8-pin
Gear up for game-changing experiences with the NVIDIA GeForce RTX™ 5080 and AI-powered DLSS 4. Built with NVIDIA® Blackwell and equipped with blistering-fast GDDR7 memory, it lets you run the most graphically demanding games and creative applications with stunning fidelity and performance. With NVIDIA Studio you can bring your creative projects to life faster than ever.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2775 MHz |
| Processor frequency | 2295 MHz |
| CUDA cores | 10752 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5080 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 960 GB/s |
| Data transfer rate | 30 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1b |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 5.0 |
| Performance | |
|---|---|
| Overclocked (OC) edition | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 3 |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin, 3x 8-pin |
| Thermal Design Power (TDP) | 360 W |
| Minimum system power supply | 850 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Height | 137.6 mm |
| Depth | 59.6 mm |
| Length | 328.7 mm |
| Packaging data | |
|---|---|
| Package height | 198.9 mm |
| Package depth | 102.9 mm |
| Package width | 404.9 mm |
| Other features | |
|---|---|
| External video modes refresh rate (max) | 480 Hz |
