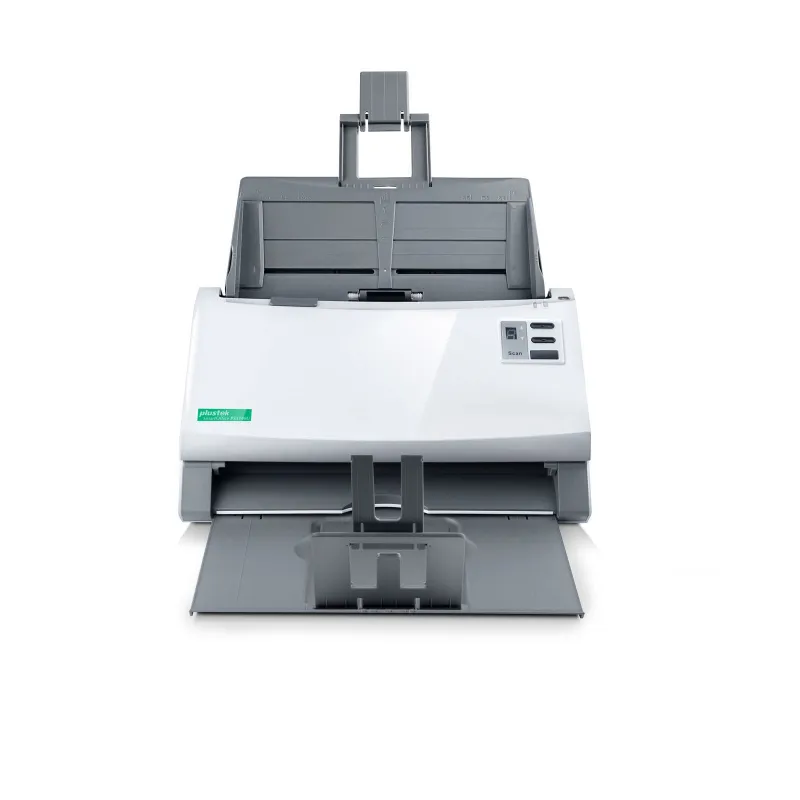

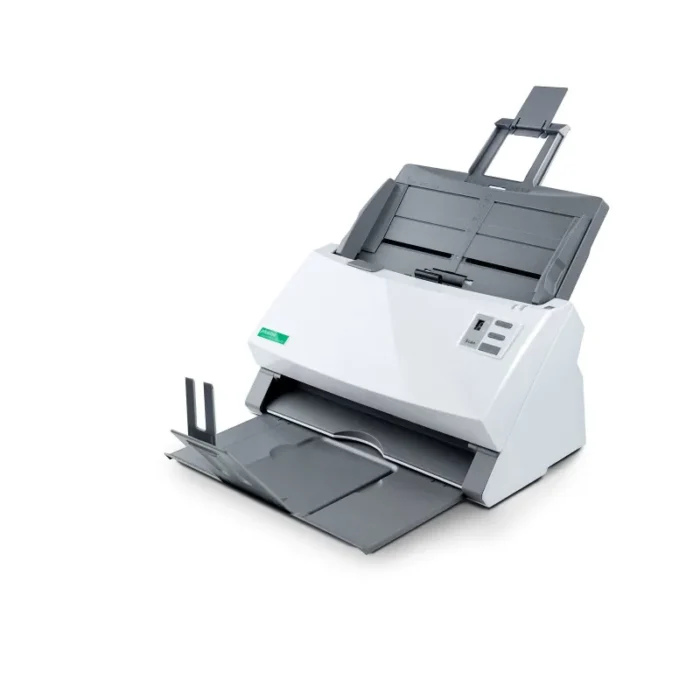

Plustek SmartOffice PS3140U ADF scanner 600 x 600 DPI A4 Grey, White
- Scanner type: ADF scanner 600 x 600 DPI
- Colour scanning Duplex scanning
- Built-in display
- A4 Scanning media types supported: Plain paper, Plastic Card
- Maximum scan size: 216 x 5080 mm Sensor type: Dual CIS
- USB port
- Power supply type: DC
Mixed Documents & Multiple Card Feeding
Multi-feed paper detection provides you with the most reliable user experience, this technology can prevent you from having to re-scan.
Image Enhancement Technology
Automatically optimize the image by concentrating the dark color, enhancing the bright background and allocating the color distribution. You don’t need to spend time adjusting IP or learning.
Enhance Paper Feeding
With optimized Friction Roller system with advanced composite material, this technology helps the paper feeding process become more smooth and reliable. This not only minimizes the feeding errors, but also help you efficiently finish the process of digitizing documents.
| Scanning |
| Roller lifetime |
300000 pages |
| Pad lifetime |
100000 pages |
| ADF scan speed (colour, A4) |
40 ppm |
| ADF scan speed (greyscale, A4) |
40 ppm |
| ADF scan speed (b/w, A4) |
40 ppm |
| Output monochrome depth |
1 bit |
| Output greyscale depth |
8 bit |
| Output colour depth |
24 bit |
| Input greyscale depth |
16 bit |
| Input colour depth |
48 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
216 x 5080 mm |
| Design |
| Product colour |
Grey, White |
| Built-in display |
Yes |
| Scanner type |
ADF scanner |
| Performance |
| Scan drivers |
TWAIN |
| Button functions |
Down, Scan, Standby, Up |
| Ultrasonic double sheet detection |
Yes |
| Daily duty cycle (max) |
4000 pages |
| Light source |
LED |
| Sensor type |
Dual CIS |
| Input capacity |
| Auto document feeder (ADF) input capacity |
100 sheets |
| Paper handling |
| Maximum scan area (ADF) |
216 x 5080 mm |
| Minimum scan area (ADF) |
13.2 x 13.2 mm |
| Auto Document Feeder (ADF) media weight |
40 – 220 g/m² |
| Card thickness (max) |
1.2 mm |
| Multi feed detection |
Yes |
| Long-paper mode |
Yes |
| Scanning media types supported |
Plain paper, Plastic Card |
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
| Standard interfaces |
USB 2.0 |
| USB version |
2.0 |
| USB port |
Yes |
| Power |
| Output voltage |
24 V |
| Output current |
1.25 A |
| Power supply type |
DC |
| Weight & dimensions |
| Weight |
2.7 kg |
| Height |
228.3 mm |
| Depth |
230.7 mm |
| Width |
318.7 mm |
| General |
| Product family |
SmartOffice |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Minimum storage drive space |
2048 MB |
| Minimum RAM |
1024 MB |
| Minimum processor |
PentiumR IV 2.4 GHz |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Technical details |
| Maximum paper size |
216 x 5080 mm |
