Peerless SP850-UNL TV mount/stand 2.03 m (80″) Black
- Dedicated models include VESA® 100 and 200 x 100mm compliant adaptor plate (PLP or LC model adaptor plate required for non-VESA displays)
- Universal models adapt to displays with mounting holes up to 600 x 400mm (23.62″ W x 15.75″ H)
- IncreLok™ tilt provides tilt at 0°, 5° and 10°
- ±1° of roll for horizontal display levelling during installation
- Mounts to 16″ wood studs, concrete and cinder block

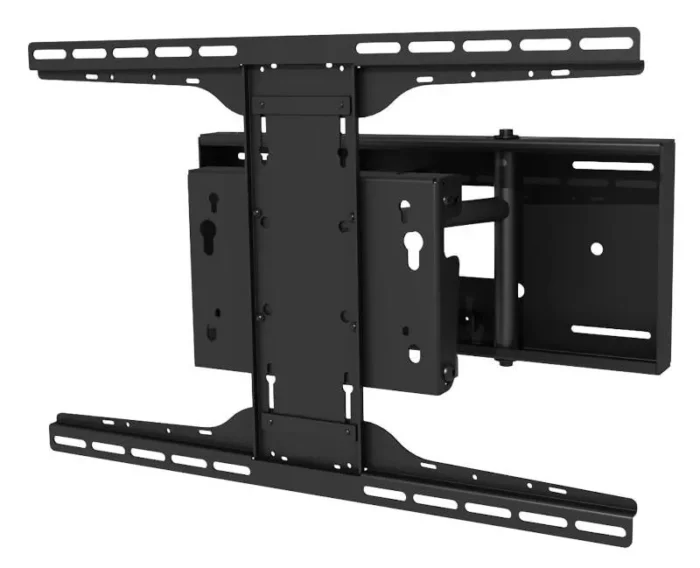

The SP850 Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73″ (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850’s sturdy arm construction smoothly glides the display out 11.18″ (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum VESA mount | 200 x 100 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 2.03 m (80″) |
| Minimum screen size | 81.3 cm (32″) |
| Maximum weight capacity | 68 kg |
| Ergonomics | |
|---|---|
| Pivot angle | -45 – 45° |
| Tilt angle range | 0 – 10° |
| Design | |
|---|---|
| Certification | RoHS, UL |
| Product colour | Black |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 13.8 kg |
| Height | 428 mm |
| Depth (max) | 28.4 cm |
| Depth (min) | 6.9 cm |
| Width | 619 mm |
| Packaging data | |
|---|---|
| Package weight | 15.4 kg |
| Package height | 119.1 mm |
| Package depth | 838.2 mm |
| Package width | 304.8 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
