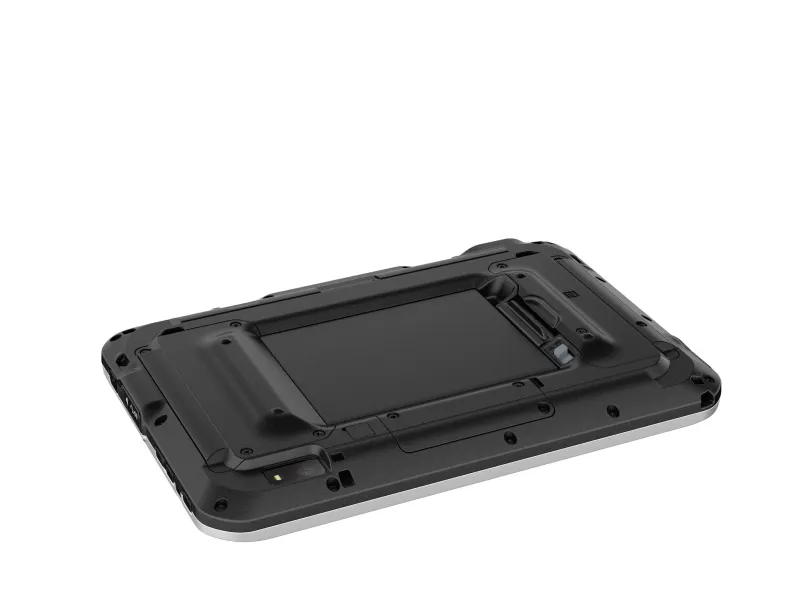

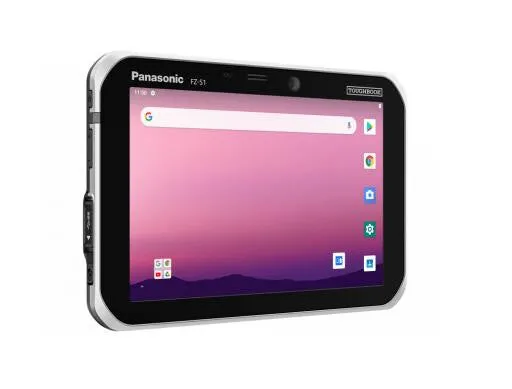

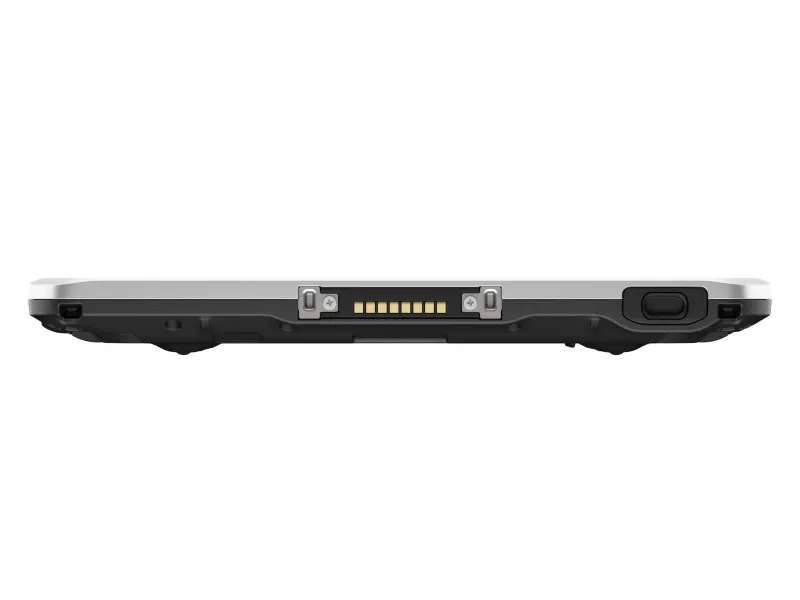

Panasonic Toughbook S1 4G Qualcomm Snapdragon LTE 64 GB 17.8 cm (7″) 4 GB Wi-Fi 5 (802.11ac) Android 10 Black, Silver
- Slate Mobile tablet Black, Silver
- 17.8 cm (7″) 1280 x 800 pixels IPS
- Qualcomm Snapdragon 660 1.843 GHz
- 64 GB eMMC Card reader integrated
- Single camera 13 MP Front camera 5 MP
- 4G Wi-Fi 5 (802.11ac) Bluetooth 5.1 Near Field Communication (NFC)
- Lithium-Ion (Li-Ion) 3200 mAh 8 h
- Android 10
The TOUGHBOOK S1 tablet – the ultimate rugged Android™ tablet for the truly mobile worker. This 7 inch screen device is easy to use in one hand, adaptable for a variety of tasks yet powerful and tough enough to cope with the busiest shift. It’s at its best when in the hands of security and police forces patrolling the streets, technicians monitoring production lines, field services engineers carrying out inspections and maintenance or construction workers on site.
To ensure the rugged tablet can work as long as any shift, it is equipped with a simple click and switch design for warm swapping batteries. It takes away the need to interrupt work, power down the device or remove fiddly panels to change batteries. With two options of battery size, the device can operate for up to 14 hours on a single charge.
Harness the power of Android in the Enterprise with Panasonic COMPASS
Panasonic Complete Android Services and Security (COMPASS) offers everything you need to configure, deploy and manage your Panasonic TOUGHBOOK rugged Android tablets and handhelds securely in your business across the full lifecycle of your solutions. It is designed to give you the confidence to take advantage of the flexibility offered by the Android operating system with the reassurance that Panasonic’s devices are enterprise-ready for applications, management and security.
| Display |
| Touchscreen type |
Capacitive |
| Display brightness |
500 cd/m² |
| Panel type |
IPS |
| Display resolution |
1280 x 800 pixels |
| Display diagonal |
17.8 cm (7″) |
| Processor |
| Processor frequency |
1.843 GHz |
| Processor boost frequency |
2.2 GHz |
| Processor cores |
8 |
| Processor model |
660 |
| Processor family |
Qualcomm Snapdragon |
| Processor manufacturer |
Qualcomm |
| Memory |
| Internal memory type |
LPDDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Storage media |
eMMC |
| Maximum memory card size |
64 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Internal storage capacity |
64 GB |
| Graphics |
| Graphics card |
Adreno 512 |
| Graphics card family |
Adreno |
| Camera |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Rear camera flash |
Yes |
| Rear camera resolution (numeric) |
13 MP |
| Rear camera type |
Single camera |
| Network |
| Near Field Communication (NFC) |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| 4G standard |
LTE |
| Mobile network generation |
4G |
| Mobile network connection |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Design |
| Device type |
Mobile tablet |
| Product colour |
Black, Silver |
| Form factor |
Slate |
| Performance |
| Electronic compass |
Yes |
| Gyroscope |
Yes |
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Galileo |
Yes |
| GLONASS |
Yes |
| BeiDou |
Yes |
| Position location |
Yes |
| Software |
| Operating system installed |
Android 10 |
| Platform |
Android |
| Battery |
| Battery life (max) |
8 h |
| Battery capacity |
3200 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Weight & dimensions |
| Weight |
514 g |
| Height |
131 mm |
| Depth |
22.9 mm |
| Width |
193 mm |
| General |
| Product family |
Toughbook |
| Operational conditions |
| Drop proof |
150 cm |
| Operating temperature (T-T) |
-20 – 50 °C |
