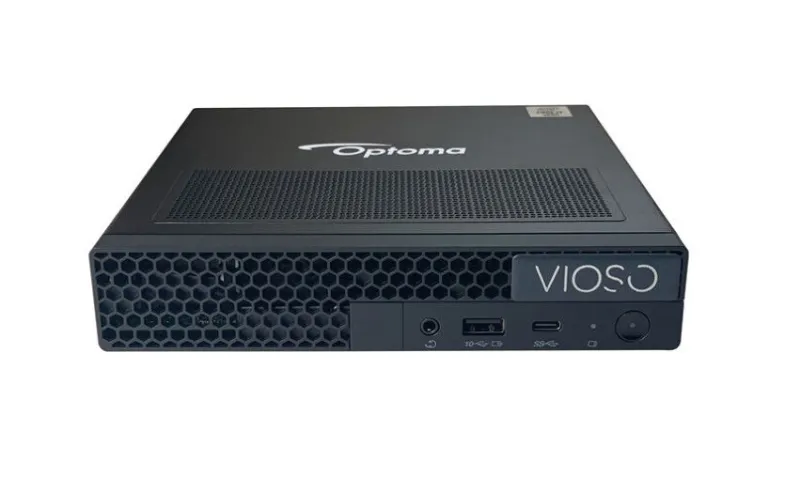

Optoma VIOSO Nano 6 Intel® Core™ i5 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black
- Mini PC Black
- Intel® Core™ i5 2 GHz
- 8 GB DDR4-SDRAM 2400 MHz
- 256 GB SSD
- Intel® HD Graphics 630
- Ethernet LAN
- Windows 10 Pro 64-bit
All-in-one content playback, warping and edge blending solution
The VIOSO Nano 6 has a smaller footprint than an A4 sheet of paper, but incorporates a highly powerful feature set including Intel i5 processor and NVIDIA QUADRO graphics. It is ideal for a multi-projector installation where powerful edge-blending, warping and content playback are required from one compact package.
It supports the use of a simple USB camera for auto-blending of projectors using the famous patented VIOSO auto-alignment technology. For more advanced setups, IP network cameras that provide greater flexibility are optionally available.
The VIOSO Nano 6 features mini-display port output connectors. Adapters are available from third party providers and are not included as standard.
| Processor | |
|---|---|
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor threads | 12 |
| Processor cores | 6 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 2400 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| Mini DisplayPorts quantity | 4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Power | |
|---|---|
| Power supply input frequency | 50 – 60 Hz |
| Power supply input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Height | 35.6 mm |
| Depth | 182.9 mm |
| Width | 180.3 mm |
| Packaging content | |
|---|---|
| Display included | No |
