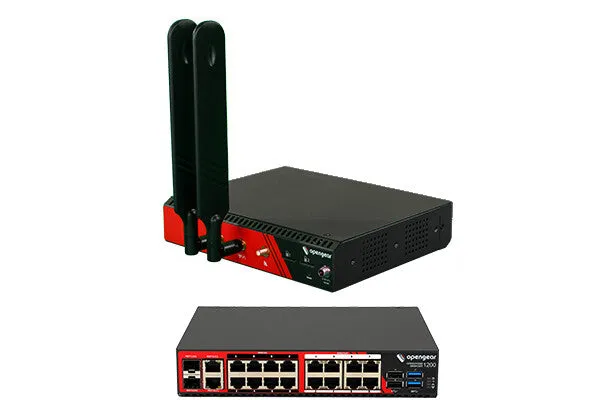

Opengear OM1200 RJ-45
- 4 Serial, 8 Serial, and 8 Serial/8 Ethernet port combinations
- x86 platform supporting Docker and Python, to automate NetOps processes
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- Cellular access with a Global LTE-A Pro module (optional)
- x86 CPU supports standard Docker containers and a python runtime environment, to automate NetOps processes
- TPM2.0 chip provides a secure boot process to protect against configuration and firmware tampering
- Open architecture, based on Linux operating system. Standard DevOps tools, including Ansible, Docker and Python, used for automation
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. Combining the secure access of Smart OOB with the flexibility of NetOps automation tools, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Supported programming languages | Python |
| Compliance certificates | CE, RoHS |
| 4G LTE | Yes |
| Product colour | Black, Red |
| Cellular | Yes |
| Security | |
|---|---|
| Security algorithms | SSH |
| Authentication method | AAA – TACACS+ |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| SFP module slots quantity | 2 |
| Processor | |
|---|---|
| Processor frequency | 1400 MHz |
| Processor cores | 4 |
| Processor model | GX-412TC |
| Processor family | AMD |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 50 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Certificates | |
|---|---|
| Certification | IEC 6950-1, IEC 62368-1, CAN/CSA-C22.2,NERC CIP |
| Power | |
|---|---|
| Power consumption (typical) | 25 W |
| AC input voltage | 110 – 240 V |
| Network | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Memory | |
|---|---|
| RAM capacity | 4000 MB |
| RAM type | DDR3 |
| Internal memory | 16000 MB |
