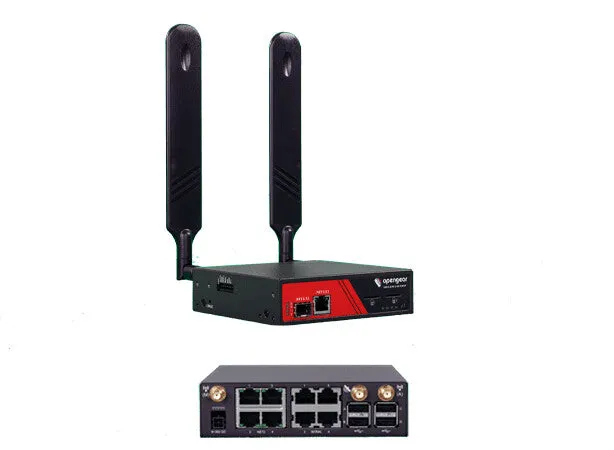

Opengear ACM7004-5-L gateway/controller 10, 100, 1000 Mbit/s
For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.
Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.
Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.
| Performance |
| Flash memory |
32 MB |
| Internal memory |
256 MB |
| Internal memory type |
DDR3 |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Control display unit |
No |
| Network |
| 4G standard |
LTE |
| Mobile network generation |
4G |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
| Fixed SFP ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| SIM card slot |
Yes |
| RS-232 ports |
4 |
| USB 2.0 ports quantity |
4 |
| Power |
| DC input voltage |
12 V |
| Input voltage |
110 – 240 V |
| Power consumption (typical) |
11.5 W |
| Software |
| Operating system installed |
Linux |
| Weight & dimensions |
| Weight |
6 kg |
| Width |
130 mm |
| Depth |
120 mm |
| Height |
35 mm |
| Operational conditions |
| Storage temperature (T-T) |
-40 – 75 °C |
| Operating temperature (T-T) |
-25 – 60 °C |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
