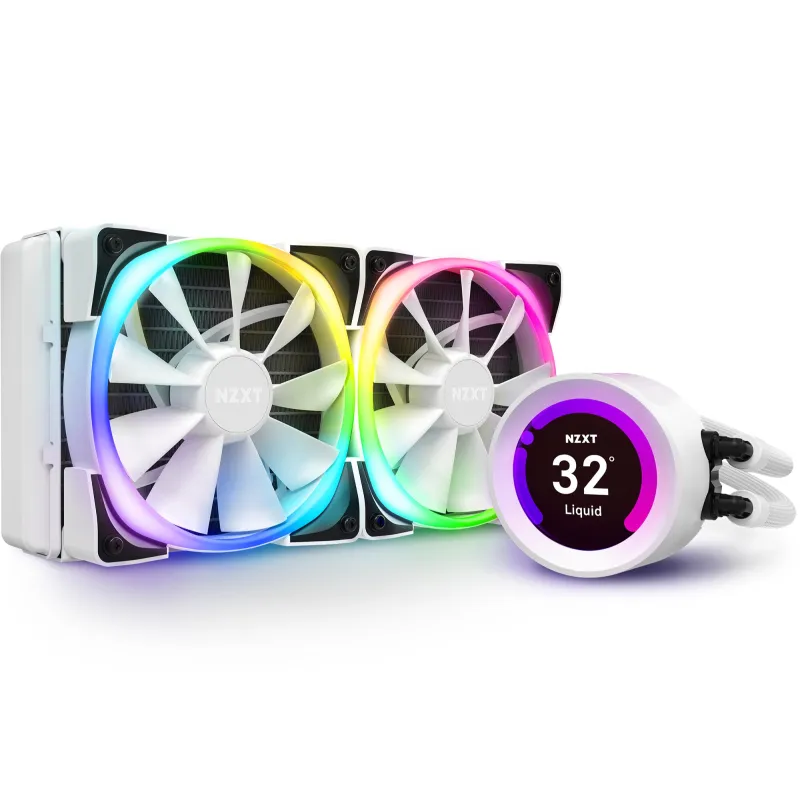

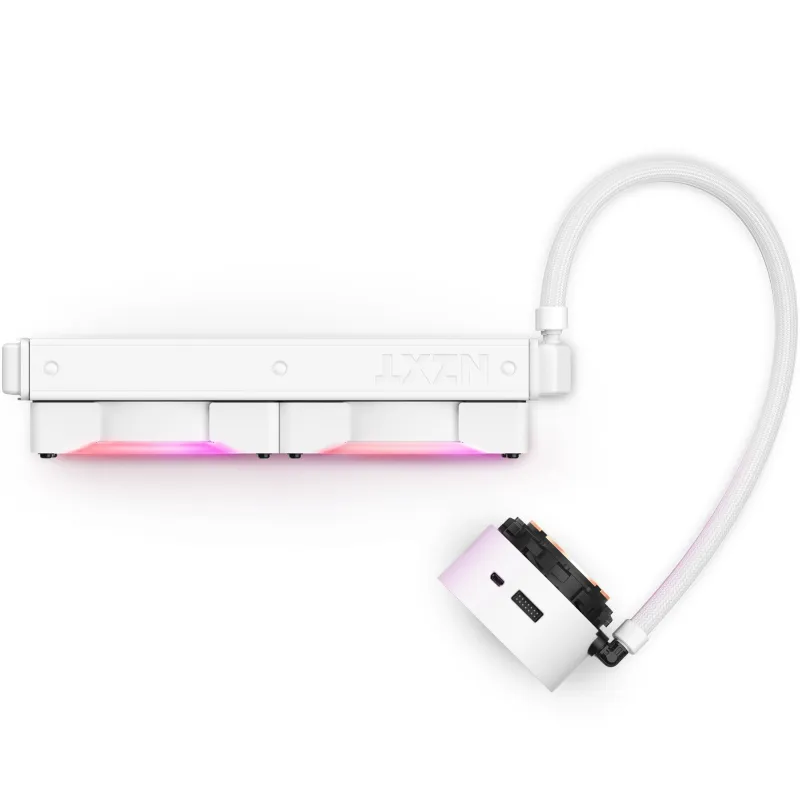

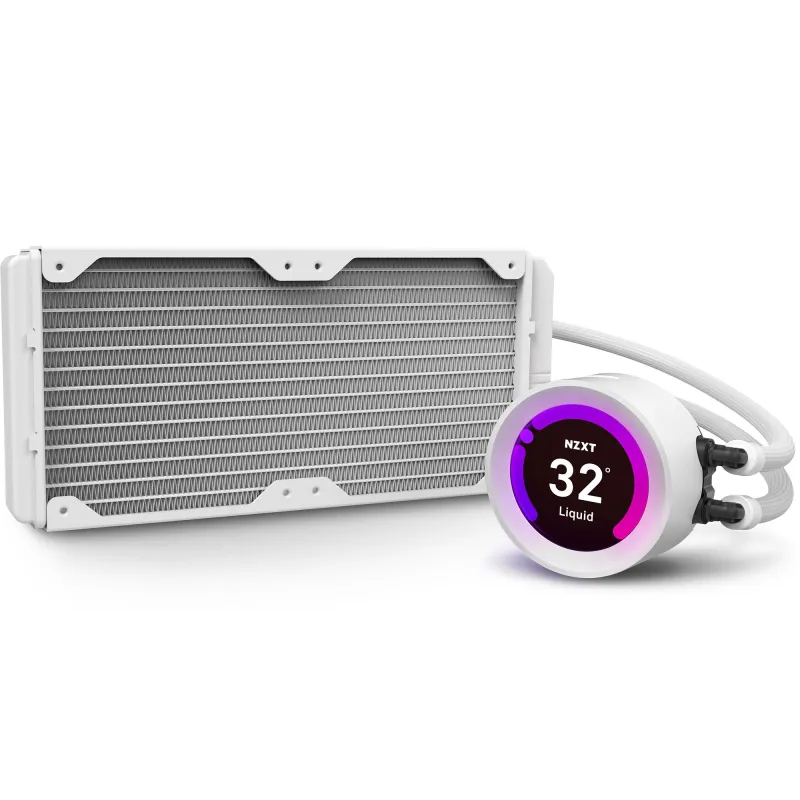

NZXT Kraken Z53 RGB Processor All-in-one liquid cooler 12 cm White
- 2.36” LCD screen capable of displaying 24-bit color
- Customize display with intuitive NZXT CAM controls
- NZXT RGB Connector for NZXT RGB accessories
- Two 120mm Aer RGB 2 radiator fans with fluid dynamic bearing
- Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
- 6-year warranty
- LGA 1700 Bracket Request Form
This All-in-One (AIO) liquid cooler is designed with the ability to fit comfortably in most cases. Show CPU/GPU temperatures or customize with GIFs with the Kraken Z LCD display.
2.36” LCD screen capable of displaying 24-bit color
Customize display with intuitive NZXT CAM controls
NZXT RGB Connector for NZXT RGB accessories
Two 120mm Aer RGB 2 radiator fans with fluid dynamic bearing
Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
6-year warranty
LGA 1700 Bracket Request Form
The display orientation can be adjusted within CAM from Default to a -90° orientation
| Performance |
| Fan’s mean time to failure (MTTF) |
60000 h |
| Fan speed (max) |
1500 RPM |
| Pump motor speed (min) |
800 RPM |
| Pump motor speed (max) |
2800 RPM |
| Fan speed (min) |
500 RPM |
| Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) |
33 dB |
| Fan noise level (min) |
22 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
1.35 mmH2O |
| Minimum air pressure |
0.14 mmH2O |
| Maximum airflow |
52.44 cfm |
| Minimum airflow (imperial) |
17.48 cfm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket TR4, Socket sTRX4 |
| Fan diameter |
12 cm |
| Type |
All-in-one liquid cooler |
| Suitable location |
Processor |
| Design |
| Water block material |
Copper/Plastic |
| Fan connector |
4-pin |
| Illumination colour |
Multi |
| Illumination LED |
Yes |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminium |
| Product colour |
White |
| Power |
| Pump voltage |
12 V |
| Fan voltage |
12 V |
| Fan current |
0.18 A |
| Pump current |
300 mA |
| Fan power consumption |
2.2 W |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
120 x 120 x 26 mm |
| Waterblock depth |
5.2 cm |
| Waterblock width |
7.9 cm |
| Radiator height |
3 cm |
| Radiator depth |
27.5 cm |
| Radiator width |
12.3 cm |
| Packaging content |
| Number of screws |
28 |
| Screws included |
Yes |
| Mounting kit |
Yes |
| Other features |
| Country of origin |
Taiwan |
| Tube material |
Rubber |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
