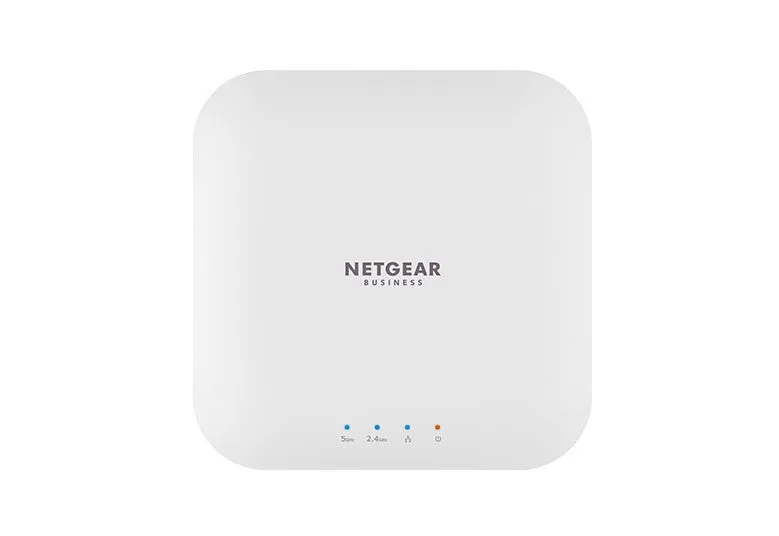

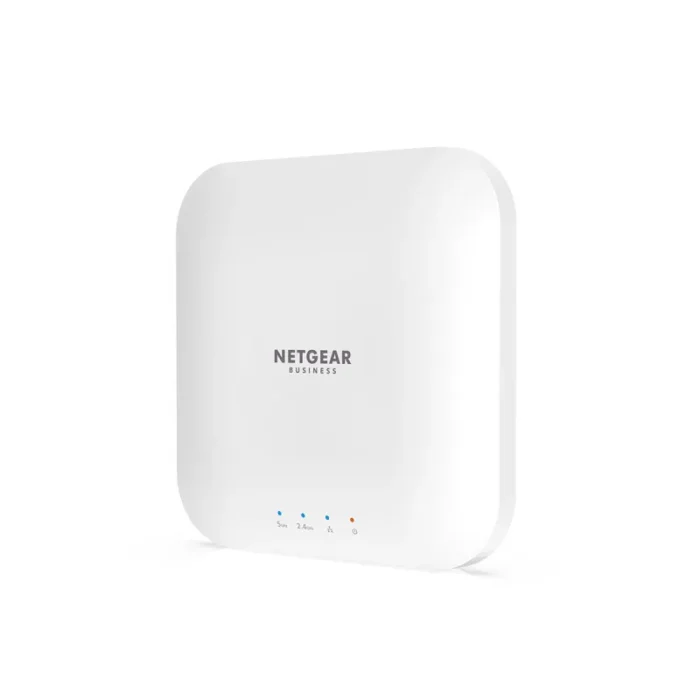

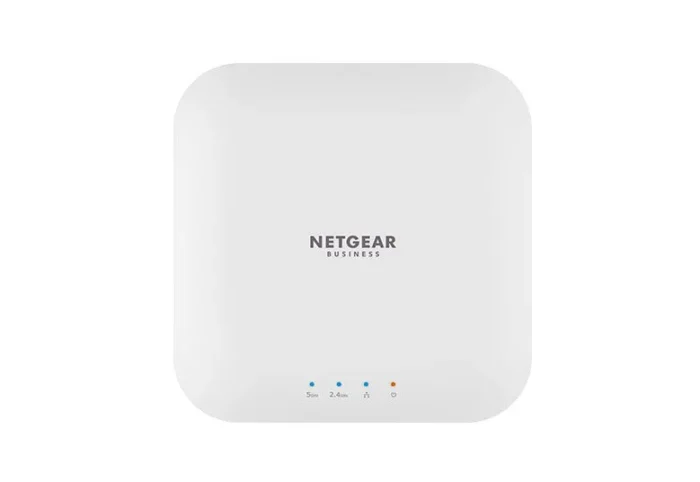

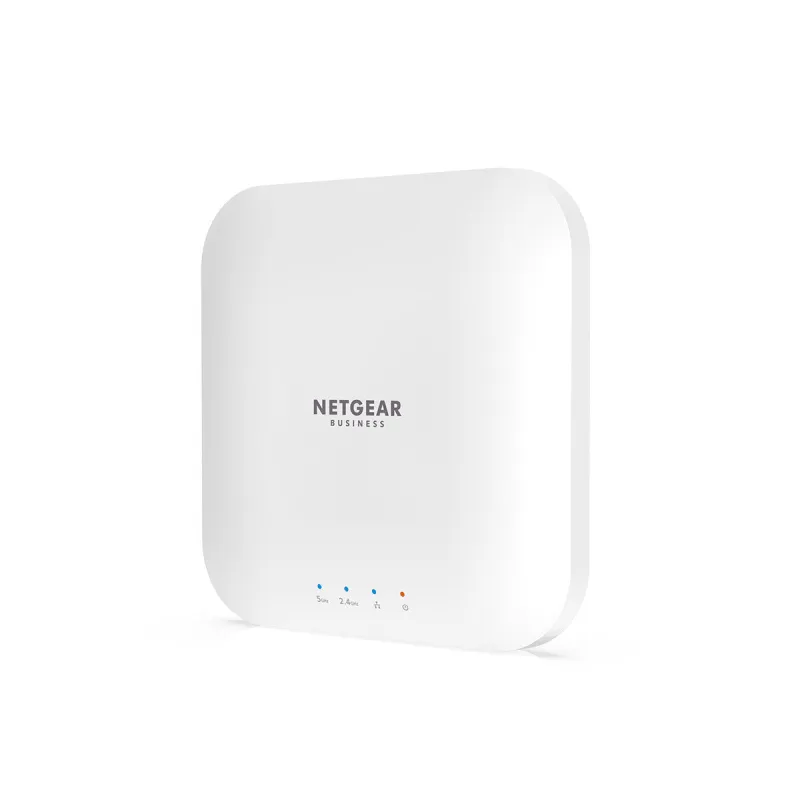

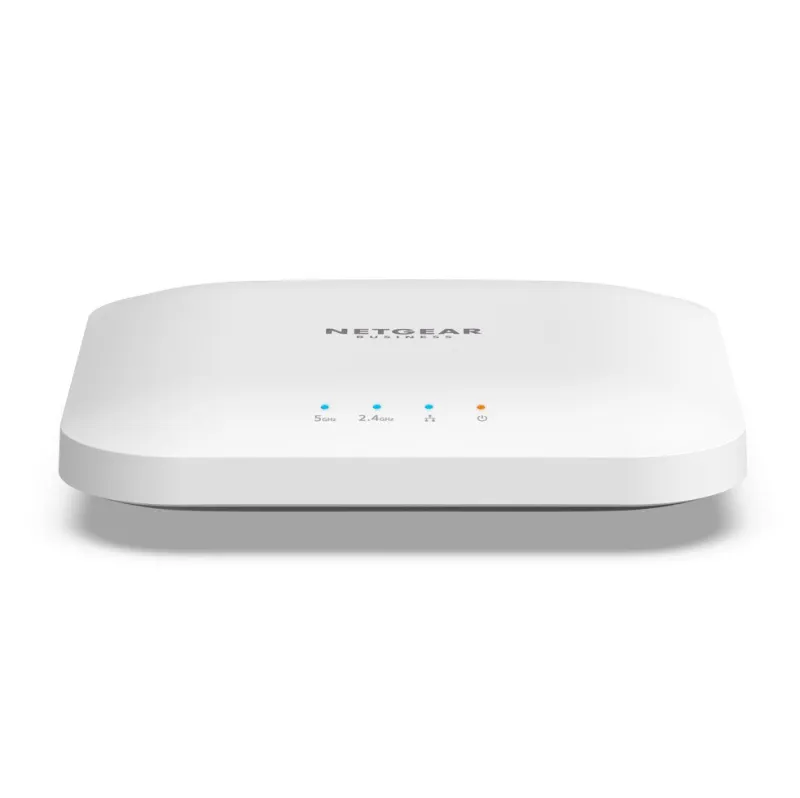

NETGEAR WiFi 6 AX1800 PoE Access Point (WAX214) 1773.5 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 573.5 Mbit/s
- 5 GHz 1201 Mbit/s
- Maximum data transfer rate: 1773.5 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n
- WPA2, WPA3
- Power over Ethernet (PoE)
- Internal
A cost-effective, easy to install WiFi 6 solution for retail and offices offering customers high-performance WiFi access isolated from the rest of the office network.
Business Grade WiFi
WiFi 6 offers your customers and employees 40% faster WiFi, less congestion, and higher device density.
Compact with Versatile Mounting
Ideal for budget-sensitive offices, showrooms, retail shops, conference rooms, or lobbies.
Security Made Easy
Enjoy enterprise-level security without the enterprise budget with WAP3 and 4 separate wireless networks (SSIDs) for your employees, guests, and more.
Easy DIY Setup
Built for easy installation. No complicated wiring, professional installation, or added IT equipment cost.
| Features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Number of users | 128 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate | 1773.5 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Number of SSID supported | 4 |
| MAC address filtering | Yes |
| Security algorithms | WPA2, WPA3 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power supply | 18 W |
| Input current | 1.5 A |
| AC input voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | LAN, Power, WLAN |
| Reset button | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling, Table, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Certificates | |
|---|---|
| Certification | CB, EN60950, EN62368 |
| Weight & dimensions | |
|---|---|
| Weight | 380 g |
| Height | 33.3 mm |
| Depth | 160.9 mm |
| Width | 160.9 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | 0 – 95 °C |
| Operating temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 0 – 40% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
