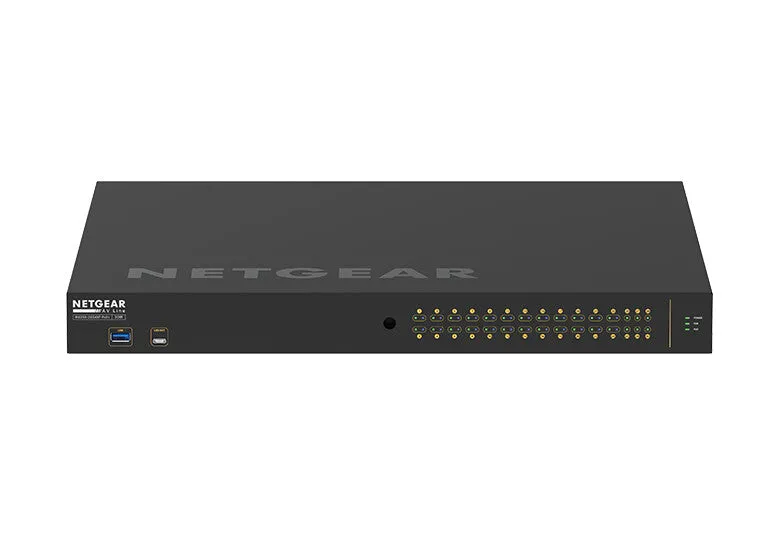

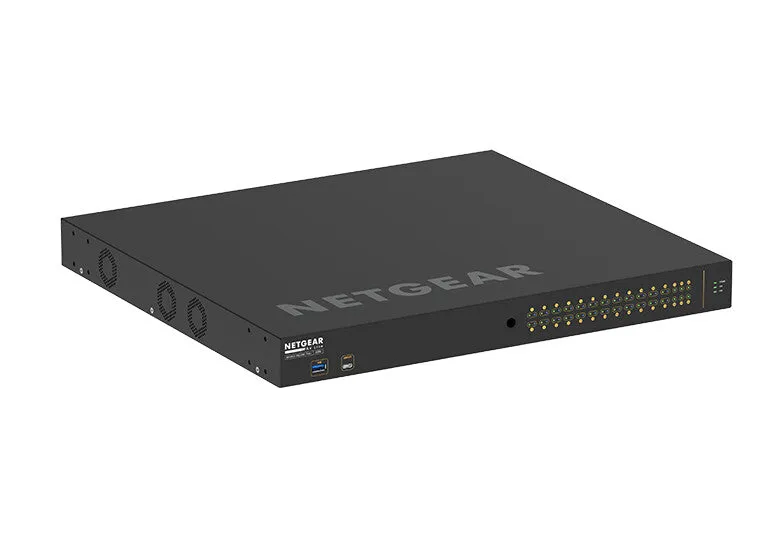

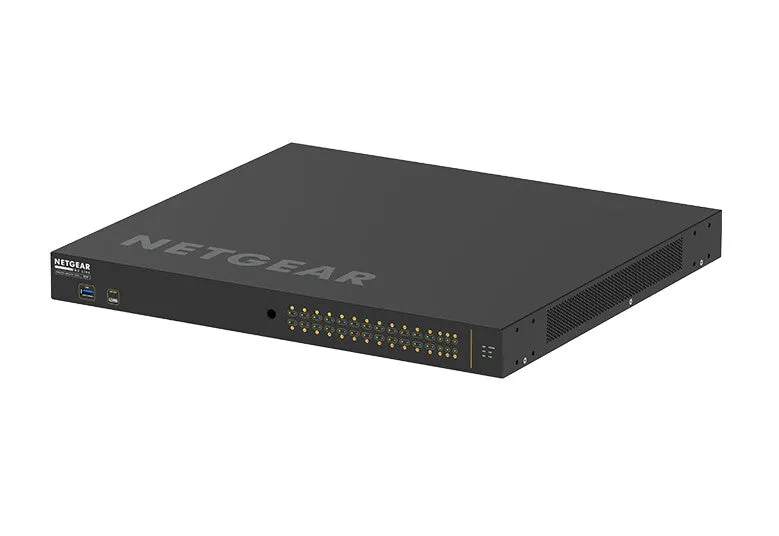

NETGEAR M4250-26G4XF-PoE+ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Primary Port Speed: 1 Gigabit
- Number of Ports: 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
- PoE Ports / Budget: 24 PoE+ (30W/port), 480W Budget
Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4 |
| VLAN support | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 128 |
| Data transmission | |
|---|---|
| Packet buffer memory | 16 MB |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 0.83 µs |
| Latency (1 Gbps) | 2.29 µs |
| Throughput | 98.21 Mpps |
| Switching capacity | 132 Gbit/s |
| MAC address table | 16000 entries |
| Protocols | |
|---|---|
| IPv6 FIB entries | 16 |
| IPv4 FIB entries | 256 |
| Design | |
|---|---|
| Temperature sensor | Yes |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Fanless | Yes |
| Noise level | 42 dB |
| Processor model | ARM Cortex-A57 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) power per port | 45 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 5.45 kg |
| Height | 400 mm |
| Depth | 43.2 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Cables included | AC, LAN (RJ-45), USB Type-C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
