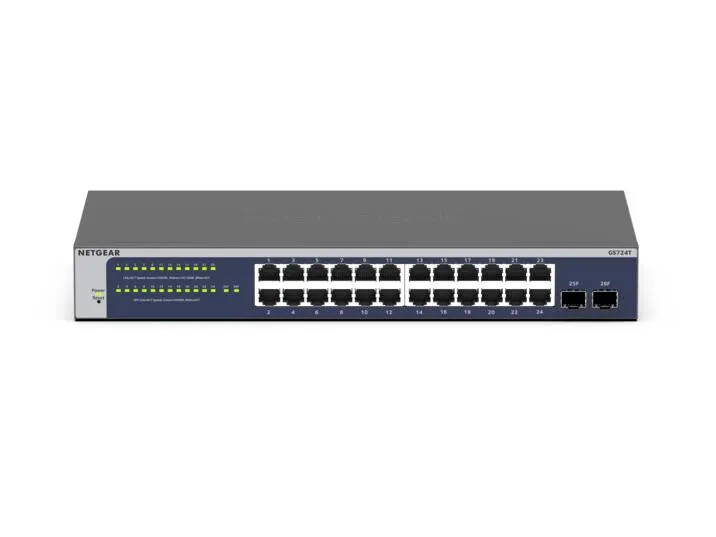

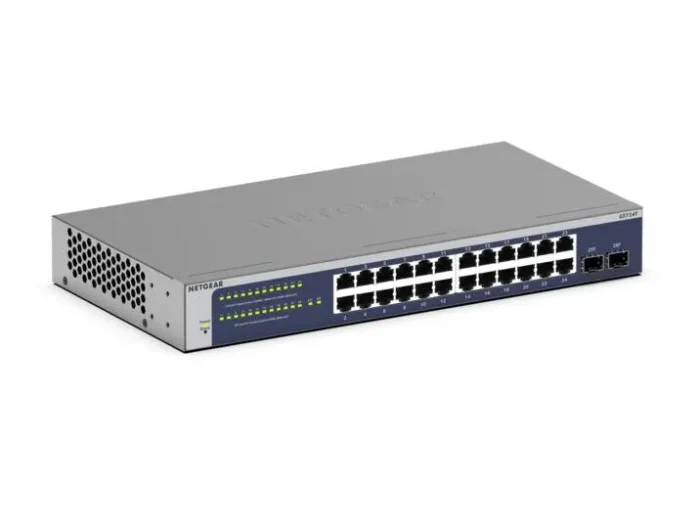

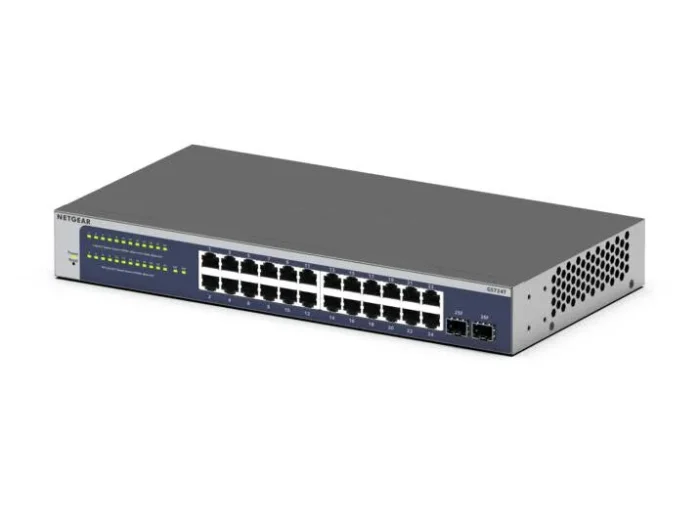

NETGEAR GS724Tv6 Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Blue, Grey
- Managed L2+/L3 Web-based management SNMP v1/v2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries Switching capacity: 52 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
NETGEAR GS724T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| VLAN support | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 32 |
| Number of queues | 8 |
| Switching capacity | 52 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | HTTPS, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
|---|---|
| Number of multicast groups filtered | 512 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2 |
| Design | |
|---|---|
| Number of fans | 0 fan(s) |
| LED indicators | Activity, Link |
| Product colour | Blue, Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1999946 h |
| Firmware upgradeable | Yes |
| Noise level | 0 dB |
| Power | |
|---|---|
| Power consumption (typical) | 13.5 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 3000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.62 kg |
| Height | 43 mm |
| Depth | 169 mm |
| Width | 328 mm |
