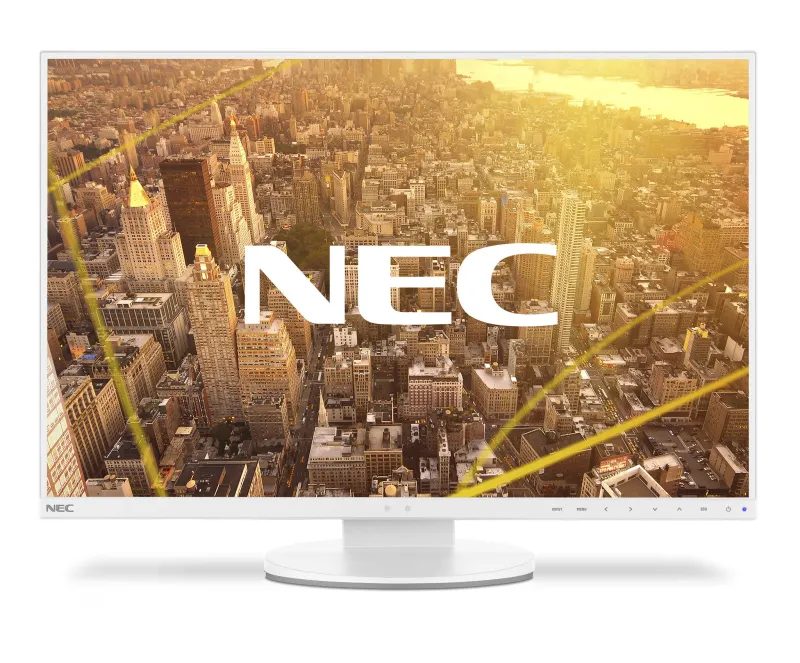

NEC MultiSync EA245WMi-2 LED display 61 cm (24″) 1920 x 1200 pixels WUXGA LCD White
- 61 cm (24″) LCD TFT/IPS
- WUXGA 1920 x 1200 pixels 16:10
- 60 Hz 6 ms 300 cd/m² 1000:1
- E 16 kWh 18 W
NEC MultiSync® EA245WMi-2 Ultra-Thin Bezel – The Office benchmark, combining sleek and elegant design with health-conscious performance
The 24” ultra-thin bezel display targeting ultimate office productivity, performance and quality, fulfils the demand for future-ready design. With its full height adjustability from 0 to 150 mm and 170° swivel functionality this display ensures perfect individual ergonomic set-up supporting best productivity. Ensuring the well-being of the user, built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering. The users’ eyes are protected whilst ensuring a true-to-life display colour performance from all viewing angles. The LED backlight panel with AH-IPS technology supports a high display brightness of 300 cd/m² and in parallel lowers power consumption.
The ultra-narrow bezel display reduces the display footprint without compromising on screen size and gives an office a fresh professional interior with its sleek and elegant design.
Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
Future-Ready Design – best in form and function design with 3-sided 0.8 mm ultra-thin bezel gives an office a fresh professional interior.
Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
Highest Productivity and efficient Multi-Tasking – reduce the number of PCs and Daisy-Chain multiple displays using DisplayPort (out) and benefit from Uniformity Control for a consistent visualisation in a trading floor setup.
Auto-Adjust Power Consumption – to minimize unnecessary power, Human and Ambient Light Sensor adjusts the display brightness when a user leaves his desk.
Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction.
| Display | |
|---|---|
| Colour gamut standard | sRGB |
| DDC/CI | Yes |
| Digital vertical frequency | 56 – 75 Hz |
| Digital horizontal frequency | 31.5 – 95 kHz |
| Pixel pitch | 0.27 x 0.27 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 5000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | TFT/IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 61 cm (24″) |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Ports & interfaces | |
|---|---|
| Headphone out | Yes |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Network | |
|---|---|
| Ethernet LAN | No |
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 – 35° |
| Tilt adjustment | Yes |
| Swivel angle range | -170 – 170° |
| Swivelling | Yes |
| Adjustable height (max) | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 391586 |
| Energy efficiency scale | A to G |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (max) | 28 W |
| Power consumption (typical) | 18 W |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 6.7 kg |
| Height (with stand) | 515.4 mm |
| Depth (with stand) | 250 mm |
| Width (with stand) | 531.5 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | MultiSync |
| Other features | |
|---|---|
| Certification | CE, TCO 7.0 |
| Power management | Yes |
| Rotating | Yes |
| On/off switch | Yes |
| Display | LED |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
