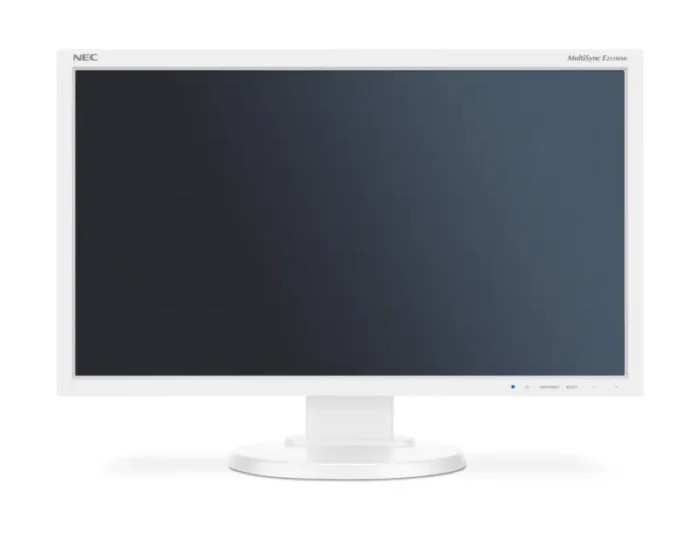

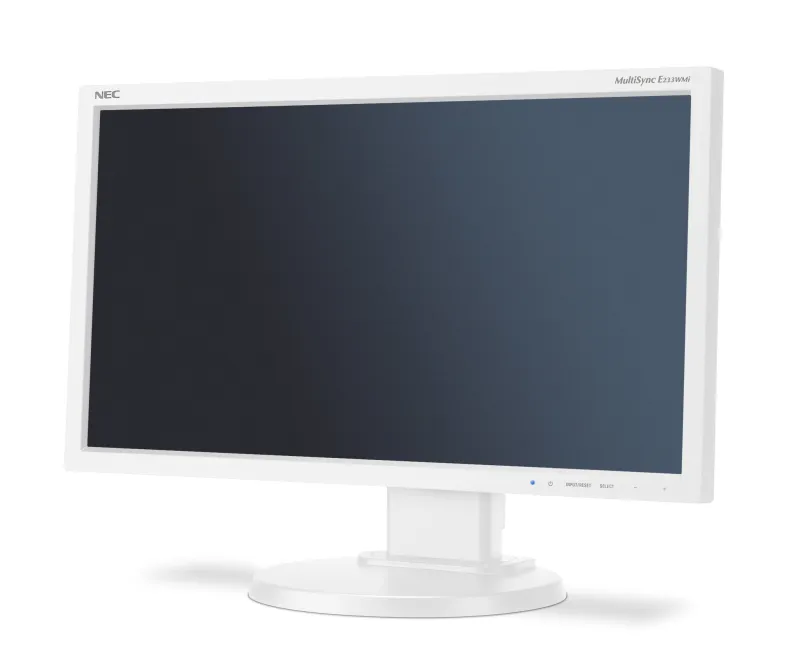

NEC MultiSync E233WMi LED display 58.4 cm (23″) 1920 x 1080 pixels Full HD White
- 58.4 cm (23″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 6 ms 250 cd/m² 1000:1
- C 10 kWh 17 W
NEC MultiSync ® E233WMi – maximum flexibility for a healthy performance
The 23” 16:9 wide screen display targeting entry-level office applications.
With its IPS panel providing wide viewing angles, the screen features an easy-to-read and eye-pleasing image quality, whilst providing best performance for better working results.
Highly flexible ergonomic setting options including height adjust, tilt and swivel as well as vertical and horizontal display orientation results in a more pleasant and productive working environment. Ensuring the well-being of the user, built-in Low Blue Light Plus technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering. Whilst the users’ eyes are protected, the low power consumption ensures an attractive Total Cost of Ownership.

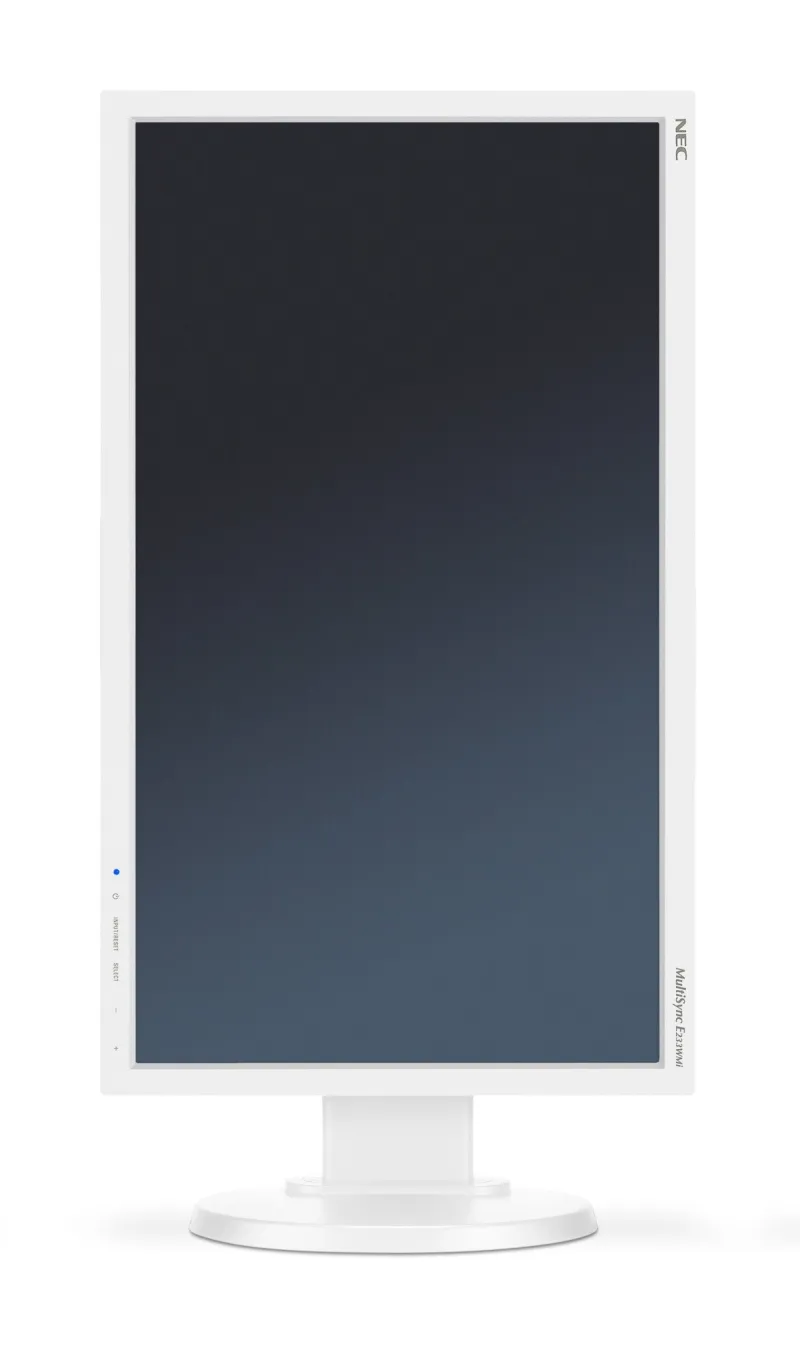

– Ergonomic Office – full height adjustability (110 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
– Ecologics and Ergonomics – complying to the latest standards including TCO 6.0 and ISO 6-0.
– Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
| Display |
| 3D |
No |
| Vertical scan range |
56 – 76 Hz |
| Horizontal scan range |
31.5 – 81.1 kHz |
| Pixel pitch |
0.265 x 0.265 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
25000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
250 cd/m² |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
58.4 cm (23″) |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
White |
| Product colour |
White |
| Ports & interfaces |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| Built-in USB hub |
No |
| Ergonomics |
| Plug and Play |
Yes |
| Tilt angle range |
-5 – 20° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 – 45° |
| Swivelling |
Yes |
| Pivot angle |
0 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
11 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
391637 |
| Energy efficiency scale |
A to G |
| AC input voltage |
100 – 240 V |
| Power consumption (PowerSave) |
0.35 W |
| Power consumption (typical) |
17 W |
| Energy consumption (SDR) per 1000 hours |
10 kWh |
| Energy efficiency class (SDR) |
C |
| Operational conditions |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Bezel width (bottom) |
1.68 cm |
| Bezel width (top) |
1.68 cm |
| Bezel width (side) |
1.64 cm |
| Height (without stand) |
322.2 mm |
| Depth (without stand) |
53.3 mm |
| Width (without stand) |
544.3 mm |
| Weight (with stand) |
5.7 kg |
| Height (with stand) |
374.5 mm |
| Depth (with stand) |
213.9 mm |
| Width (with stand) |
544.3 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, DVI, VGA |
| Stand included |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| General |
| Product family |
MultiSync |
| Other features |
| Certification |
CE, ErP, FCC Class B, ISO 9241-307, Low Blue Light, PCT/Gost, TCO 6.0, TÜV Ergonomics, TÜV GS, UL/C-UL (CSA) |
| ECO mode |
Yes |
| On/Off timer |
Yes |
| TV tuner integrated |
No |
| Display |
LED |
| Thin Client |
| Thin client installed |
No |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
