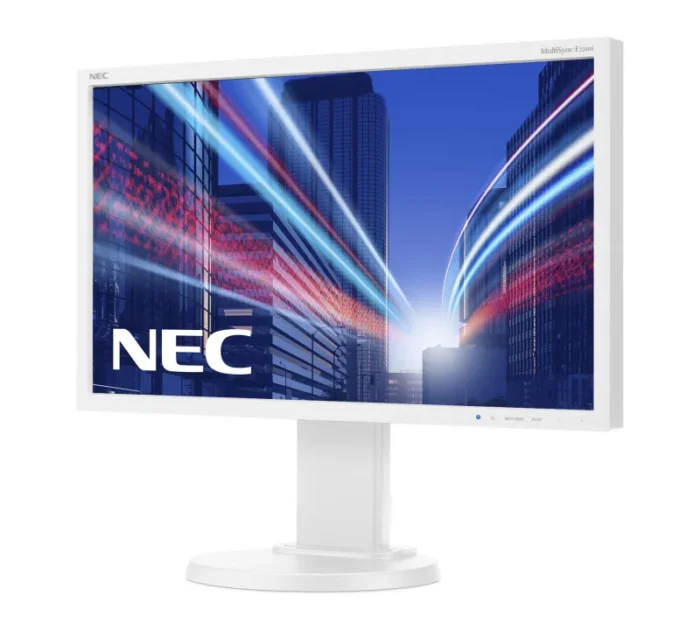

NEC MultiSync E224Wi LED display 54.6 cm (21.5″) 1920 x 1080 pixels Full HD White
- 54.6 cm (21.5″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 6 ms 250 cd/m² 1000:1
- 22 W
The MultiSync® E224Wi is a high class 21.5″ 16:9 format monitor with best IPS panel and latest energy saving LED backlight
technology. It offers the latest DisplayPort connectivity and ergonomic adjustability for professional office users. Low power consumption and low operating costs make the display perfect for use in the professional office environment. Outstanding ergonomic comfort make it very user-friendly and help to increase productivity.
The ideal display for high performance office with compact space requirement.
– Ergonomic Office – full height adjustability (110 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
– Input – Display can be used with two digital (DVI-D, DisplayPort) and one analogue input.
– Image display – 215inch 16:9 IPS with LED backlight.
– Vesa Mount (100 mm) – allows to install the monitor via various mounting solutions.
– Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.
– Special Characteristics – 21.5″ (16:9) Highly efficient IPS panel with LED backlight saves more than 30% energy; Carbon Footprint Meter ; Carbon Savings Meter ; EcoModes ; Energy Star 6.0; ErgoDesign® : Height adjustable stand (110 mm) with 90° Pivot features; NaViSet Administrator 2 ; sRGB Support; TORO™ Design ; Windows 7 compatible; Windows 8 compatible
| Display |
| Composite sync |
Yes |
| 3D |
No |
| Colour gamut standard |
sRGB |
| Digital vertical frequency |
56 – 76 Hz |
| Digital horizontal frequency |
31.5 – 81.1 kHz |
| Pixel pitch |
0.248 x 0.248 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
720 x 400, 832 x 624, 1152 x 870, 1280 x 960, 1366 x 768, 1440 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5″) |
| Multimedia |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Product colour |
White |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Built-in USB hub |
No |
| Network |
| Ethernet LAN |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ergonomics |
| LED indicators |
Power |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 20° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 – 45° |
| Swivelling |
Yes |
| Pivot angle |
0 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
11 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Annual energy consumption |
32 kWh |
| Power consumption (max) |
25 W |
| Power consumption (typical) |
22 W |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Bezel width (bottom) |
1.58 cm |
| Bezel width (top) |
1.58 cm |
| Bezel width (side) |
1.47 cm |
| Height (without stand) |
301.1 mm |
| Depth (without stand) |
58.5 mm |
| Width (without stand) |
507.4 mm |
| Weight (with stand) |
5.9 kg |
| Height (with stand) |
364.5 mm |
| Depth (with stand) |
213.9 mm |
| Width (with stand) |
507.4 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC, DVI, VGA |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| General |
| Product family |
MultiSync |
| Other features |
| Energy efficiency class (old) |
B |
| Certification |
CE; Energy Star 6.0; FCC Class B; MPR III; PSB; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS |
| ECO mode |
Yes |
| Power consumption (economy mode) |
16 W |
| TV tuner integrated |
No |
| Rotating |
Yes |
| On/off switch |
Yes |
| Display |
LED |
| Thin Client |
| Thin client installed |
No |
