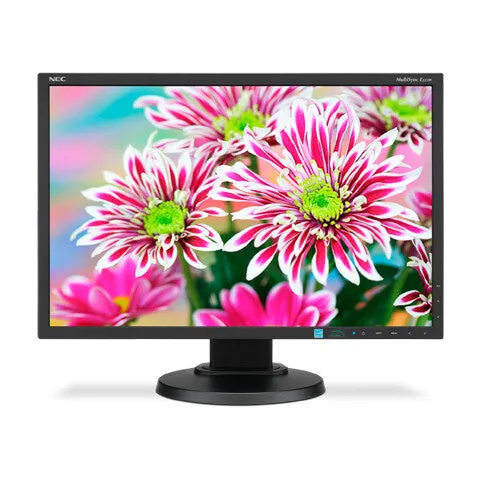

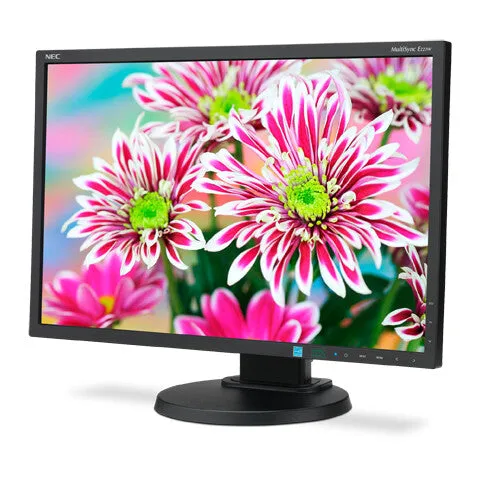

NEC E223W-BK LED display 55.9 cm (22″) 1680 x 1050 pixels Black
- 55.9 cm (22″) LED TN+Film
- 1680 x 1050 pixels 16:10
- 5 ms 250 cd/m² 1000:1
- 24 W
22″ LED Backlit Widescreen Desktop Monitor
The 22″ NEC MultiSync E223W delivers the latest in display technologies, while providing many eco-friendly benefits for corporate users. The LED backlighting of the E223W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. It offers touch-sensitive controls that are integrated into the bezel, making display adjustments easier and more intuitive than ever. A comprehensive input panel, including DisplayPort, DVI-D and VGA, connects users to the latest peripherals and future-proofs the investment.
– ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
– Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
– Carbon footprint meter helps track and calculate the reduction of green gas emissions
– Compact packaging helps reduce paper usage, shipping costs and waste
– 4-way ergonomic design (height-adjust, pivot, tilt & swivel) enhances your viewing comfort
– Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color and contrast

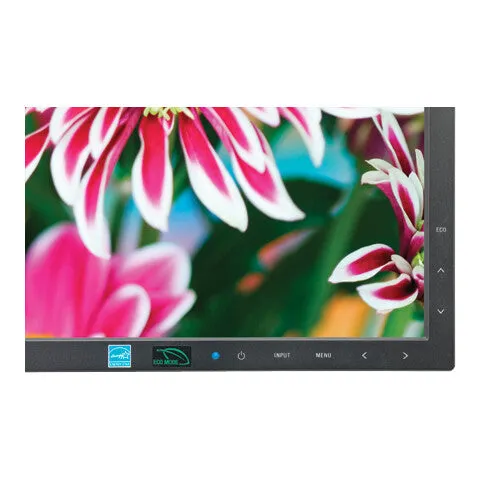

– Touch sensitive OSD controls allows for intuitive screen adjustments
| Display |
| Composite sync |
Yes |
| Separate H/V sync |
Yes |
| 3D |
No |
| Sync-on-green (SOG) |
Yes |
| Digital vertical frequency |
56 – 75 Hz |
| Digital horizontal frequency |
31.5 – 82.3 kHz |
| Pixel pitch |
0.28 x 0.28 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:10 |
| Supported graphics resolutions |
1680 x 1050 (WSXGA+) |
| Response time |
5 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
TN+Film |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:10 |
| Display resolution |
1680 x 1050 pixels |
| Display diagonal |
55.9 cm (22″) |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Product colour |
Black |
| Ports & interfaces |
| Compatible memory cards |
Not supported |
| Card reader integrated |
No |
| Common interface (CI) |
Yes |
| AC (power) in |
Yes |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Network |
| Ethernet LAN |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ergonomics |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Pivot |
Yes |
| Height adjustment |
Yes |
| Cable lock slot |
No |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Power consumption (standby) |
0.35 W |
| Power consumption (typical) |
24 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 2000 m |
| Storage relative humidity (H-H) |
10 – 85% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight (without stand) |
3.2 kg |
| Height (without stand) |
329.7 mm |
| Depth (without stand) |
60.5 mm |
| Width (without stand) |
503.5 mm |
| Weight (with stand) |
4.9 kg |
| Height (with stand) |
493.3 mm |
| Depth (with stand) |
213.9 mm |
| Width (with stand) |
503.5 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC, DVI, VGA |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| Other features |
| Certification |
TCO, RoHS |
| TV tuner integrated |
No |
| On/off switch |
Yes |
| Display |
LED |
| Thin Client |
| Thin client installed |
No |
