NEC 100015614 PC/workstation Intel® Core™ i5 i5-8400H 8 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Black, Bronze, Green, Silver
- Black, Bronze, Green, Silver
- Intel® Core™ i5 i5-8400H 4.2 GHz
- 8 GB DDR4-SDRAM
- 128 GB SSD
- Intel® HD Graphics 630
- Ethernet LAN 10,100,1000 Mbit/s
- Windows 10 IoT 64-bit

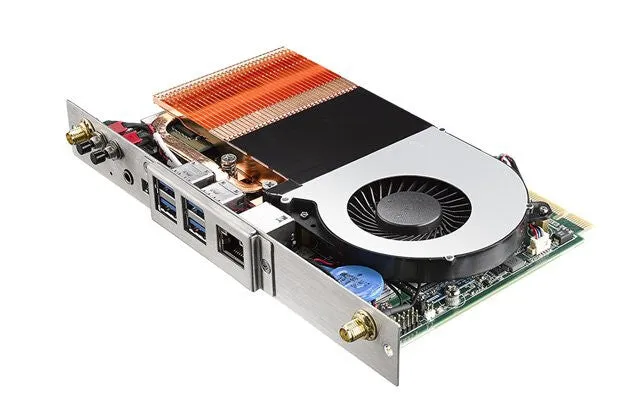

Intel Smart Display Module (SDM) 8th Generation – The Advanced Core i5 SDM
This Core i5 powered Intel SDM Large Slot-in PC supports a wide variety of applications such as interactive signage applications, vidoe walls and more complex intelligent signage installation where sensor and other data is processed and displayed in real time.
Tailor-made solutions can be provided with a wide choice of solid-state drives, RAM and operating systems.
High Performance – the Core i5-8400H processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs – customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded – the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set – in combination with supported NEC large format displays.
Built for business – the vPro® technology and TPM chipset provide enhanced performance, security and remote management capabilities.
High reliability – ideally suited for 24/7 operation due to the use of industrial grade components.
| Processor |
| Configurable TDP-down |
35 W |
| Configurable TDP-down frequency |
2 GHz |
| Bus type |
DMI |
| Processor frequency |
4.2 GHz |
| Processor cores |
4 |
| Processor model |
i5-8400H |
| Processor generation |
8th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| SSD capacity |
128 GB |
| Total SSDs capacity |
128 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card model |
Intel® HD Graphics 630 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Antenna type |
2×2 |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Mini DisplayPorts quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| Design |
| Product colour |
Black, Bronze, Green, Silver |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 IoT |
| Processor special features |
| Intel Clear Video Technology |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
1.00 |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Weight & dimensions |
| Package weight |
1.2 kg |
| Package height |
75 mm |
| Package depth |
245 mm |
| Package width |
325 mm |
| Weight |
1 kg |
| Height |
20 mm |
| Depth |
100 mm |
| Width |
175 mm |
| Packaging content |
| Display included |
No |
- Intel SDM inserted into NEC M Series Display
