MSI PRO DP21 13M Intel Core i7 13700 Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), UHD Graphics/Type C/HDMI/DisplayPort/COM Port/TPM 2.0/LAN/WiFi 6E/BT 5.3/VESA
- MSI recommends Windows 11 Pro for business
- Up to Intel® Core™ i7-13700 Processors
- Support 4K UHD Display
- Wi-Fi 6 (Optional) puts more emphasis on transmission security with speed up to 2.4Gbps
- With a complete array of I/O ports, it can connect all devices that you need and support dual display
- Get all the performance benefits from USB 3.2 Gen 2 which combines with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port
- Easy to access and upgrade components to keep the system up to date with the latest hardware
- TPM design secures your confidential data with encryption keys
- MSI Cloud Center app brings you a private cloud and helps backup files of your mobile devices (Android & iOS)
- Customize your own user mode and increase the efficiency with MSI Center app
- Supports standard VESA-mount

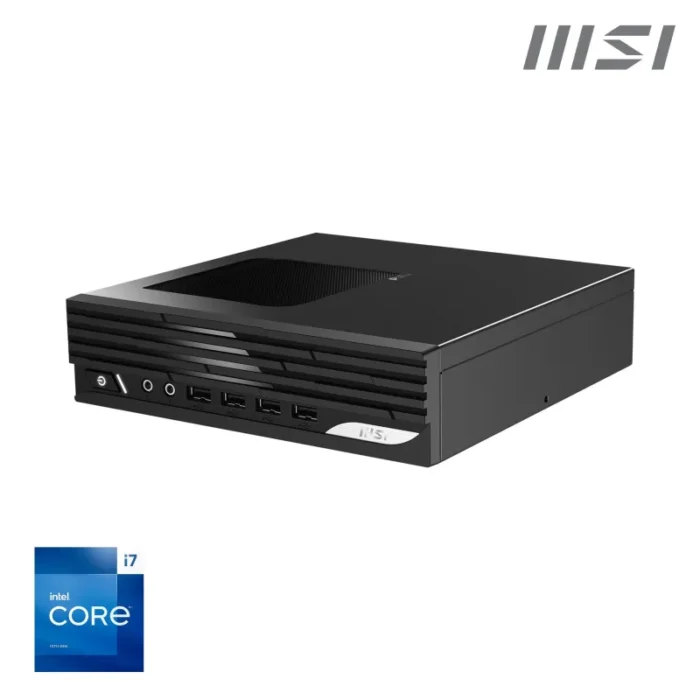

“MSI PRO DP21 13M Mini PC (SFF): Be Your Window to the World
The MSI PRO DP21 13M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & dual-monitor setups).
The PRO DP21 13M I7 13700 BB barebone system equipped with an Intel 13th Gen Core i7-13700 processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR4 SO-DIMMs), and is VESA-mountable for a cleaner desktop.

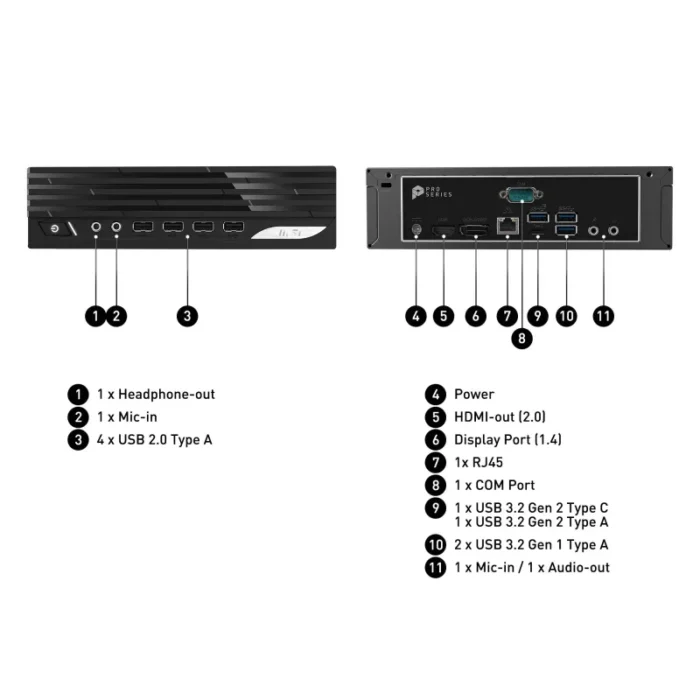

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (3.2 Gen 2 Type-A & C, 3.2 Gen 1 Type-A, 2.0 Type-A), and HDMI 2.0 & DP 1.4 ports. The PRO DP21 13M also contains a COM port for connecting to POS devices. Trusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information.”
| Processor | |
|---|---|
| L2 cache | 24 MB |
| Processor cache | 30 MB |
| Efficient-core boost frequency | 4.1 GHz |
| Performance-core boost frequency | 5.1 GHz |
| Processor lithography | 10 nm |
| Efficient cores | 8 |
| Performance cores | 8 |
| Processor frequency | 5.2 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor threads | 24 |
| Processor cores | 16 |
| Processor model | i7-13700 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,3200 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 3 |
| NVMe | Yes |
| Storage drive interface | M.2, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Realtek RTL8111H |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| COM ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 2.3L sized PC |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Compatible processor series | Intel Core i7 13th Gen |
| Number of processors supported | 1 |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | mini ITX |
| Software | |
|---|---|
| Operating system installed | No |
| Power | |
|---|---|
| Number of power supply units | 1 |
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Package weight | 2.75 kg |
| Package height | 125 mm |
| Package depth | 382 mm |
| Package width | 275 mm |
| Weight | 1.27 kg |
| Height | 54.8 mm |
| Depth | 208 mm |
| Width | 204 mm |
| Packaging content | |
|---|---|
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| Drivers included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Warranty period | 2 year(s) |
