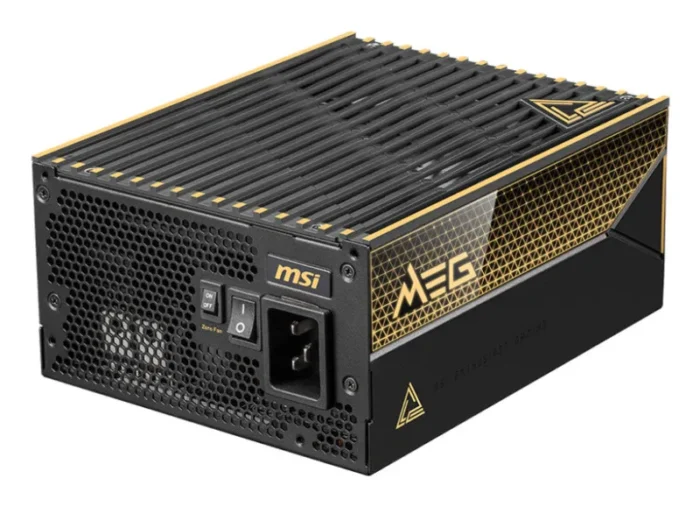

MSI MEG Ai1600T PCIE5 power supply unit 1600 W 24-pin ATX ATX Black
- 1600 W 100 – 240 V
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Titanium
- 13.5 cm
- Black
MSI’s flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
| Power |
| Efficiency |
94% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
22 A |
| Max output current (+12V) |
133.3 A |
| Max output current (+3.3V) |
22 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
1600 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 – 240 V |
| Total power |
1600 W |

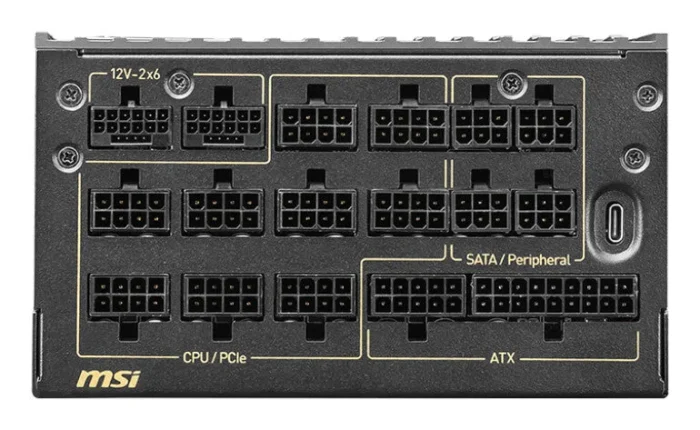

| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express power connectors (16-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
9 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
No |
| Peripheral (Molex) power connectors (4-pin) |
8 |
| Number of SATA power connectors |
8 |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Bearing technology |
DBB |
| 80 PLUS certification |
80 PLUS Titanium |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |

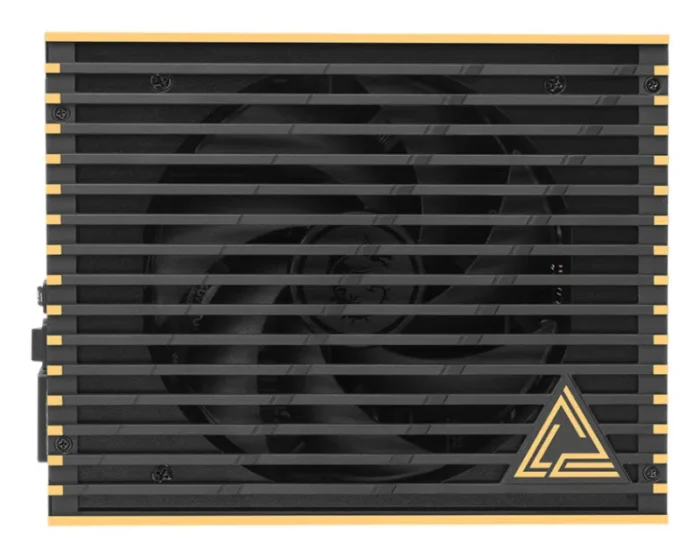

| Fan diameter |
13.5 cm |
| Product colour |
Black |
| General |
| Product family |
MEG |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
190 mm |
