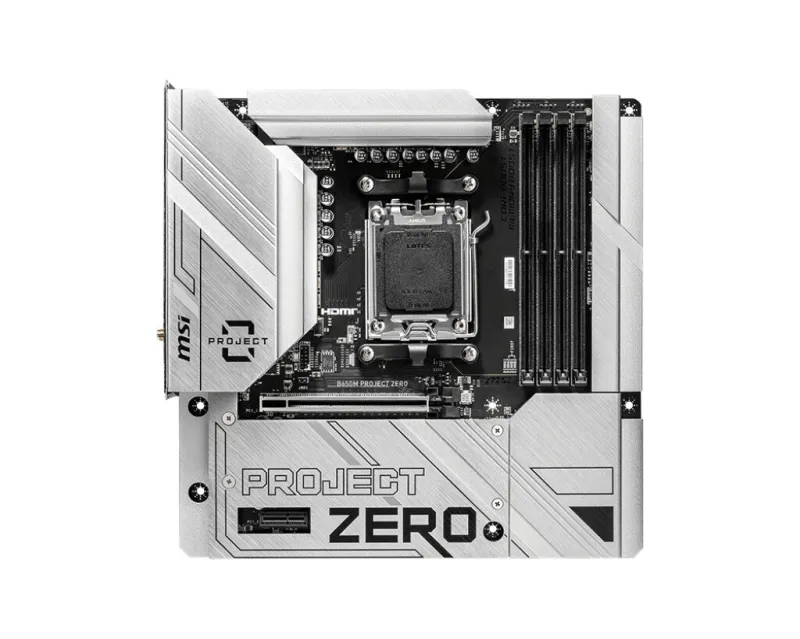

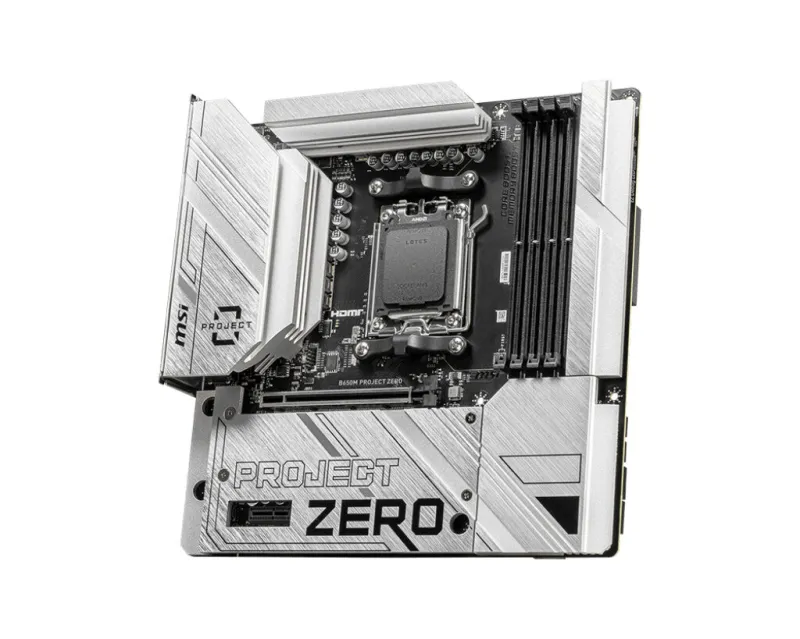

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade soun
ABSOLUTE SIMPLICITY

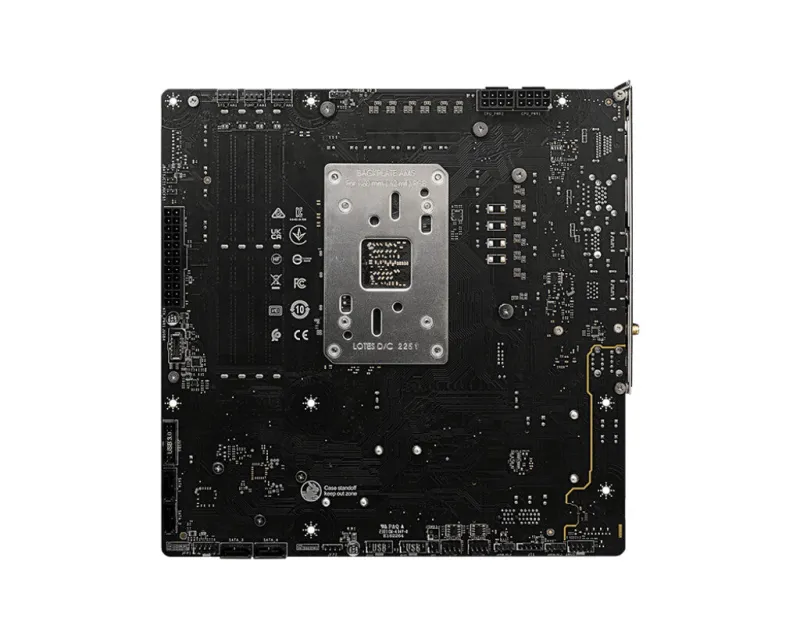

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card’s aesthetic design to be fully displayed.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
| Processor |
| Maximum internal memory supported by processor |
128 GB |
| Supported processor sockets |
Socket AM5 |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory clock speed (max) |
7600 MHz |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, PCI Express |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| TPM connector |
Yes |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
4 |
| Rear panel I/O ports |
| S/PDIF out port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Product colour |
White |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
AMD B650 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
| BIOS |
| System Management BIOS (SMBIOS) version |
3.5 |
| ACPI version |
6.4 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
| Depth |
243.8 mm |
| Width |
243.8 mm |
| Packaging content |
| Cables included |
SATA |
